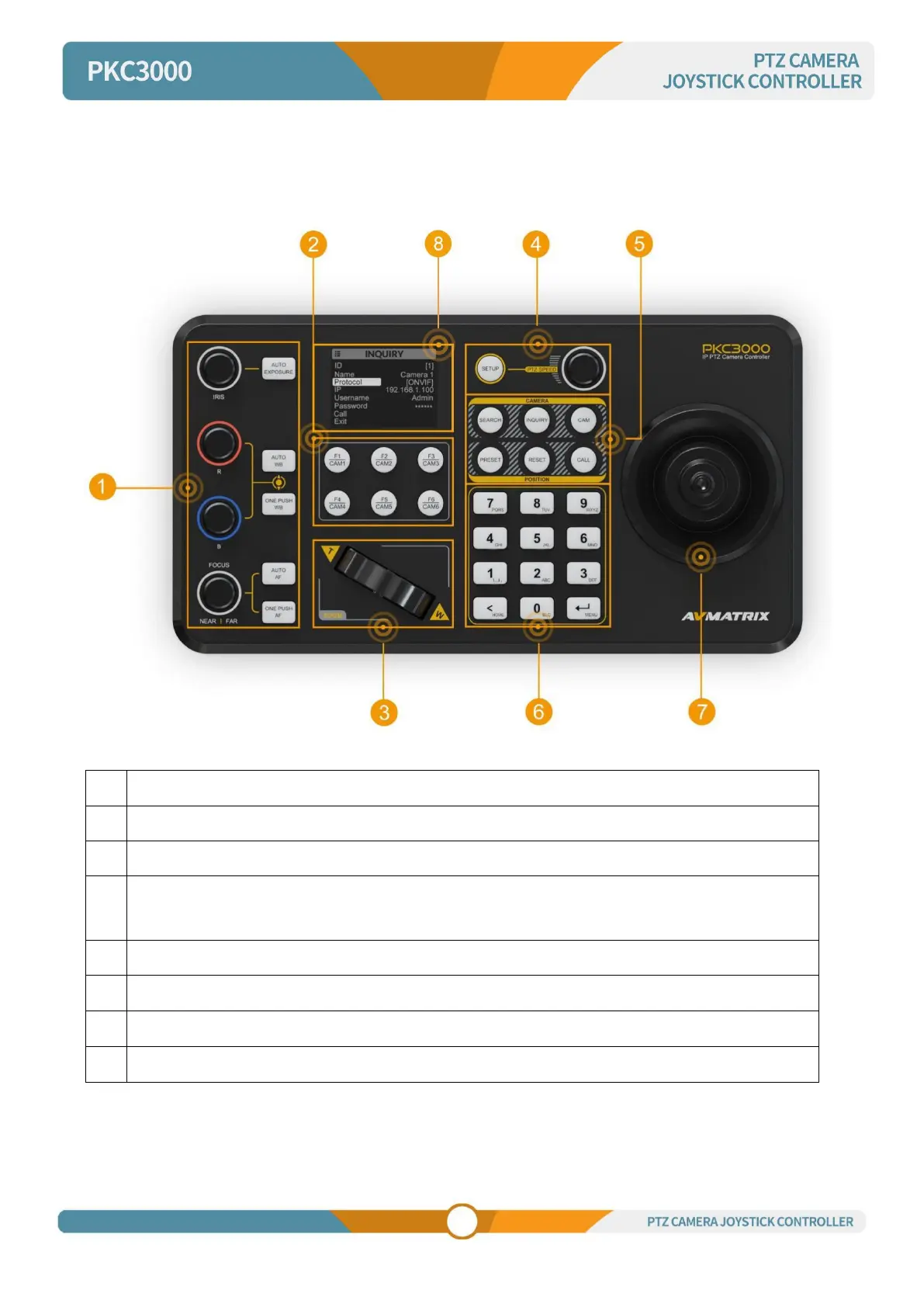

3.Control Panel
3.1 Description
1
Camera Quick Access Control (Aperture/exposure/white balance/focus function settings)
2
6 Camera Call Up& User-assignable keys（Default 6-camera quick connect）
3
Seesaw button (Zoom control)
4
Menu knob (Use for pan/tilt speed, zoom speed control and PTZ camera menu settings)
Non-menu status knob to adjust the head rate
and PTZ camera own menu settings.
5
Camera address and position setting
6
Multi-function digital panel (Inputting numbers, letters, etc.)
7
PTZ joystick (Controlling camera motion action)
8
2.2 inch LCD display
