3.2.6. Audio and Extension

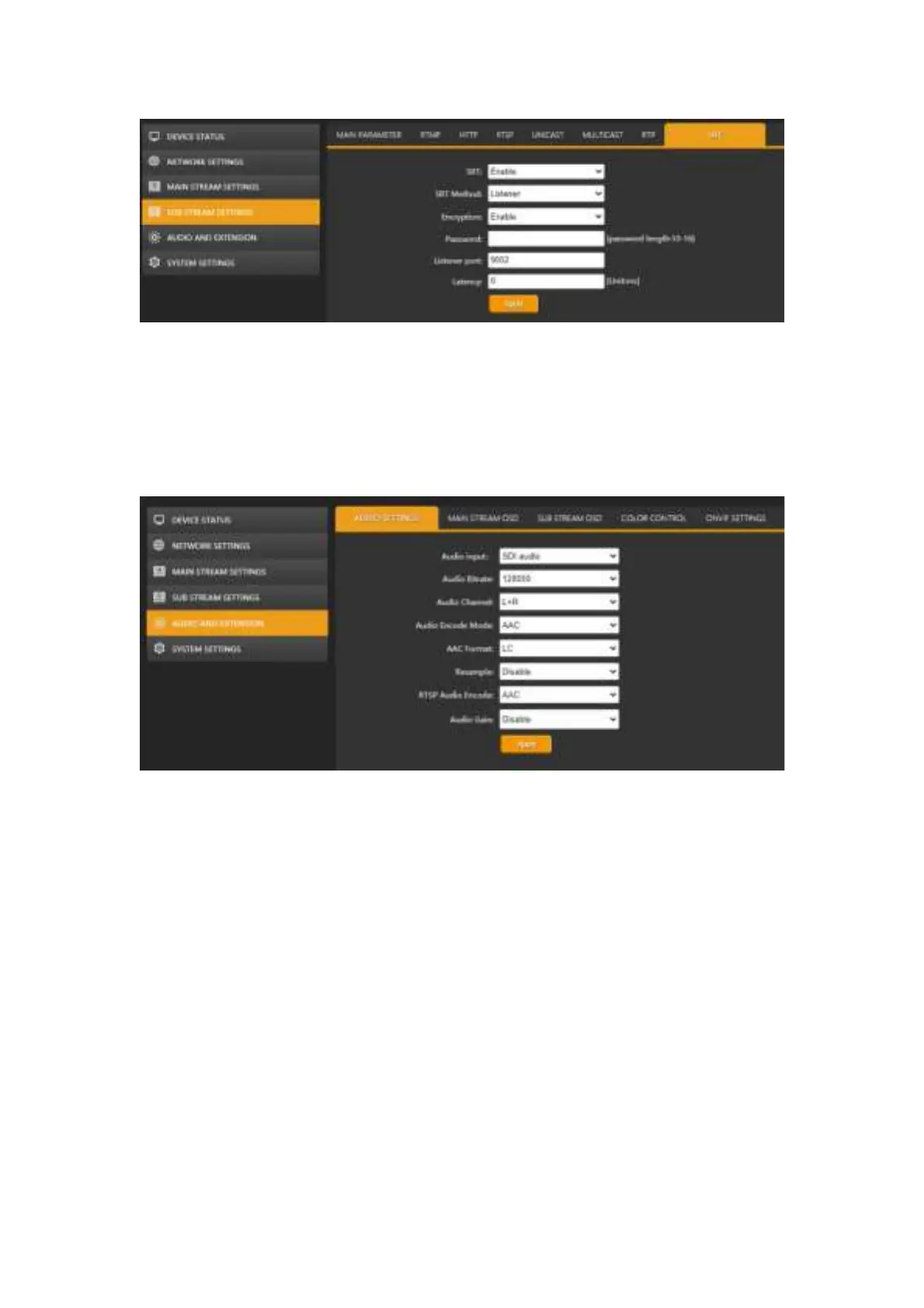

3.2.6.1. Audio Settings
The encoder support audio embedding from external analog input. Therefore, the audio
can be from SDI embedded audio or analog Line in audio. Besides, Audio Encode Mode
can be ACC/ MP3/ MP2.
3.2.6.2. OSD Overlay
The encoder can insert logo and text to the Main Stream / Sub Stream video at same time.
The logo file should be named logo.bmp and resolution below 1920×1080 as well as less
than 1MB. Text content overlay support up to 255 characters. The size and color of the text
can be set on the web page. And user also can set the position and transparency of the
logo and text overlay.
