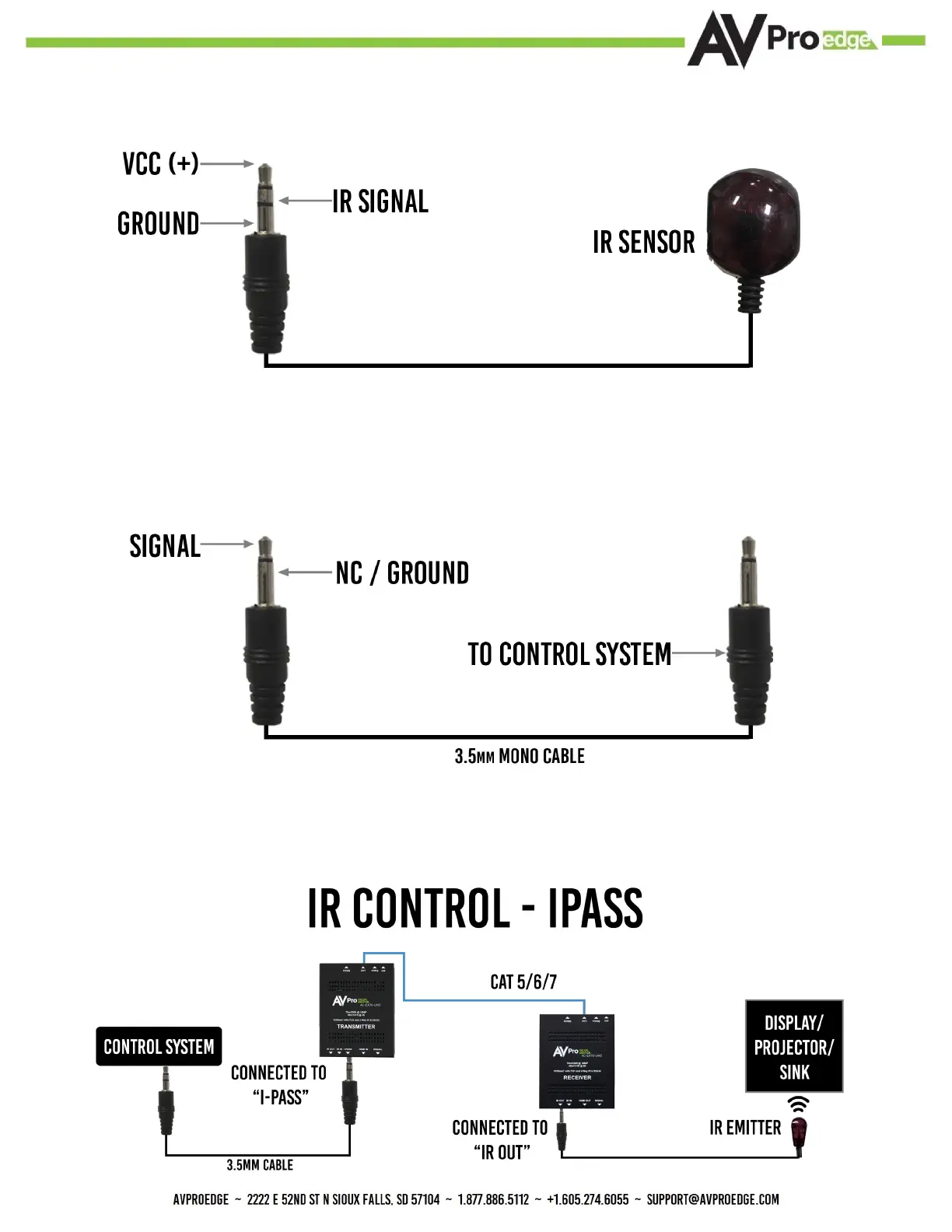

In the example below a control system is plugged into the “IPASS” port of the HDBaseT Transmitter
with a 3.5mm mono cable, and a IR Emitter is plugged into the “IR OUT” port of the HDBaseT Re-
ceiver. This allows you to send an IR signal from a control system down the category cable to the
sink (RX) and control the display.
IR IN - This port is designed to accept an IR Receiving Eye/Sensor
11
IPASS - This port is designed to be directly connected to a control system
via a 3.5mm Mono cable
NOTE: IPASS is only an INPUT. So you can go IPASS in from a control system to IR OUT.
Control System > IPASS (TX) ------IR OUT (RX)
Control System > IPASS (RX) ------IR OUT (TX)
