IR Conguration

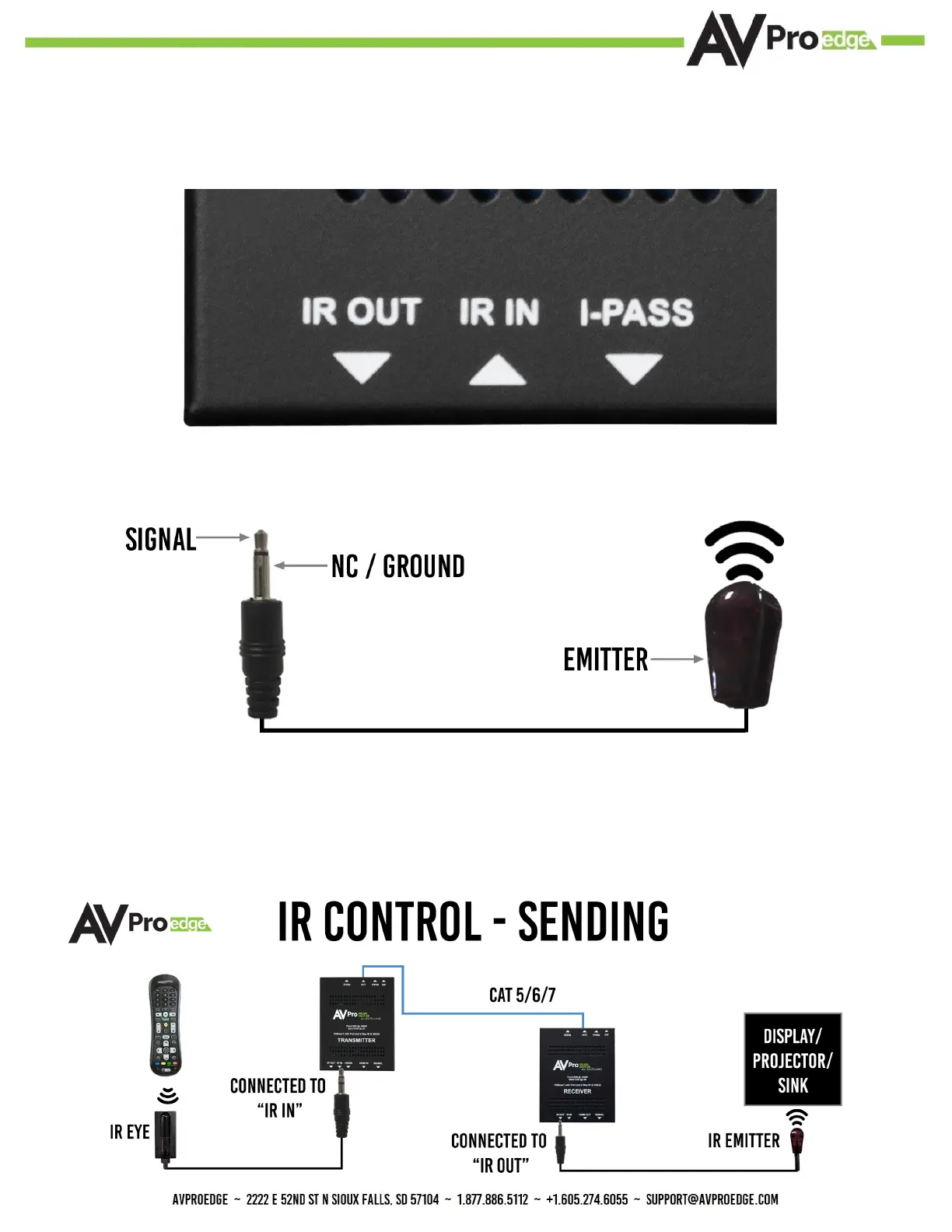

There are three dierent 3.5mm IR ports located on the Transmitter and Receiver.
IR OUT - This port is designed to accept an IR Emitter
In the example below an IR receiving eye is plugged into the “IR IN” port of the HDBaseT Transmit-
ter, and a IR Emitter is plugged into the “IR OUT” port of the HDBaseT Receiver. This allows you to
use an IR Remote control to send and IR signal from the source side (TX) down the category cable to
the sync (RX) and control the display.
