APPENDIX 7 DVD WRITER INSTALLATION
56
APPENDIX 7 DVD WRITER INSTALLATION
Some DVR models allow users to install a DVD writer by themselves. To know whether your
DVR supports this feature, please check with your local distributor or retailer.
The supported DVD writer models are as follows. Please use only the suggested DVD writer
models to ensure the compatibility.
Type Brand Model
SATA Liteon iHAS120
SONY AD-7240S
Note: Before installing the DVD writer, make sure your DVR is powered off and
your DVR supports this feature.

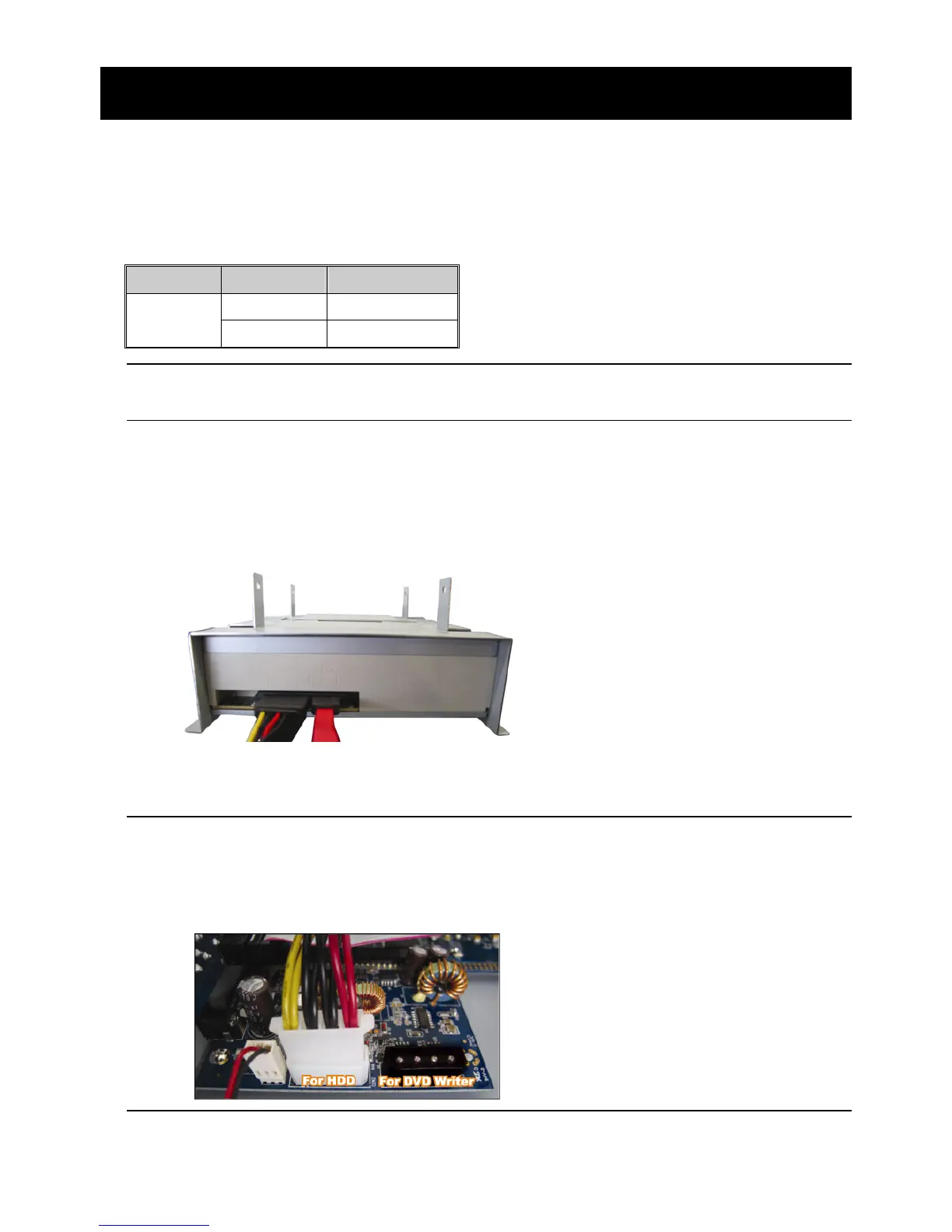

Step1: Remove the DVR cover, and find the DVD writer bracket to remove it.
Step2: Put the DVD writer in the bracket, and fix it to the bracket with two screws (optional) on
each side.
Step3: Connect the data bus and power cables* to the SATA DVD writer.
*Data bus & power cables are optional.
Step4: Connect the data bus and power cables to the data bus and power jack on the DVR
main board.
Note: Make sure the power cable of the DVD writer is plugged into the black jack
on the DVR main board. This power jack can supply power to one hard disk
and one DVD writer simultaneously. The white jack is used to supply power
to only one hard disk.
Step5: Replace the bracket to the DVR base and fix it.
To Next Page
