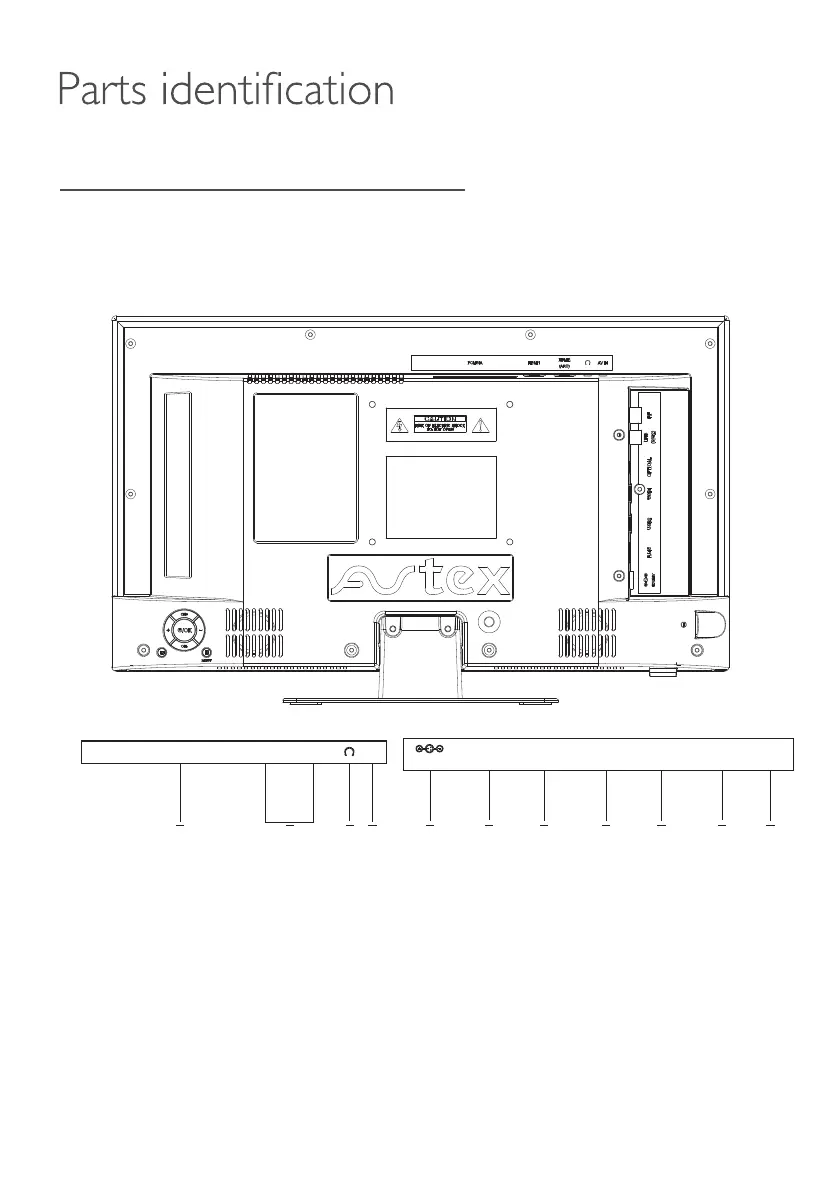

Avtex W249TS - Rear View Connections

1
2
3
4
6
7
8
9
10
12V/24V
PCMCIA HDMI1 AV IN
5
11
1 PCMCIA CARD SLOTS FOR EXTERNAL CONDITIONAL ACCESS(CA)-MODULES.
2 HDMI1/HDMI2(ARC) IN SOCKET. REFER TO HDMI PAGE
3 HEADPHONE OUTPUT TERMINAL
4 AV INPUT
5 12V/24V DC INPUT TERMINAL
6 RJ45 INTERNET INPUT
7 USB2
8 USB1
9 OPTICAL AUDIO OUT
10 LNB S/S2
11 RF INPUT TERMINAL(AERIAL)
TERMINAL
10
HDMI2
(ARC)
Rear view
RJ45 USB2 USB1 OPTICAL RF
LNB
(S/S2)
