Awntech RN22 - Component Identification and Preparation; Component Inventory and Parts List; Required Tools and Hardware

Page | 2

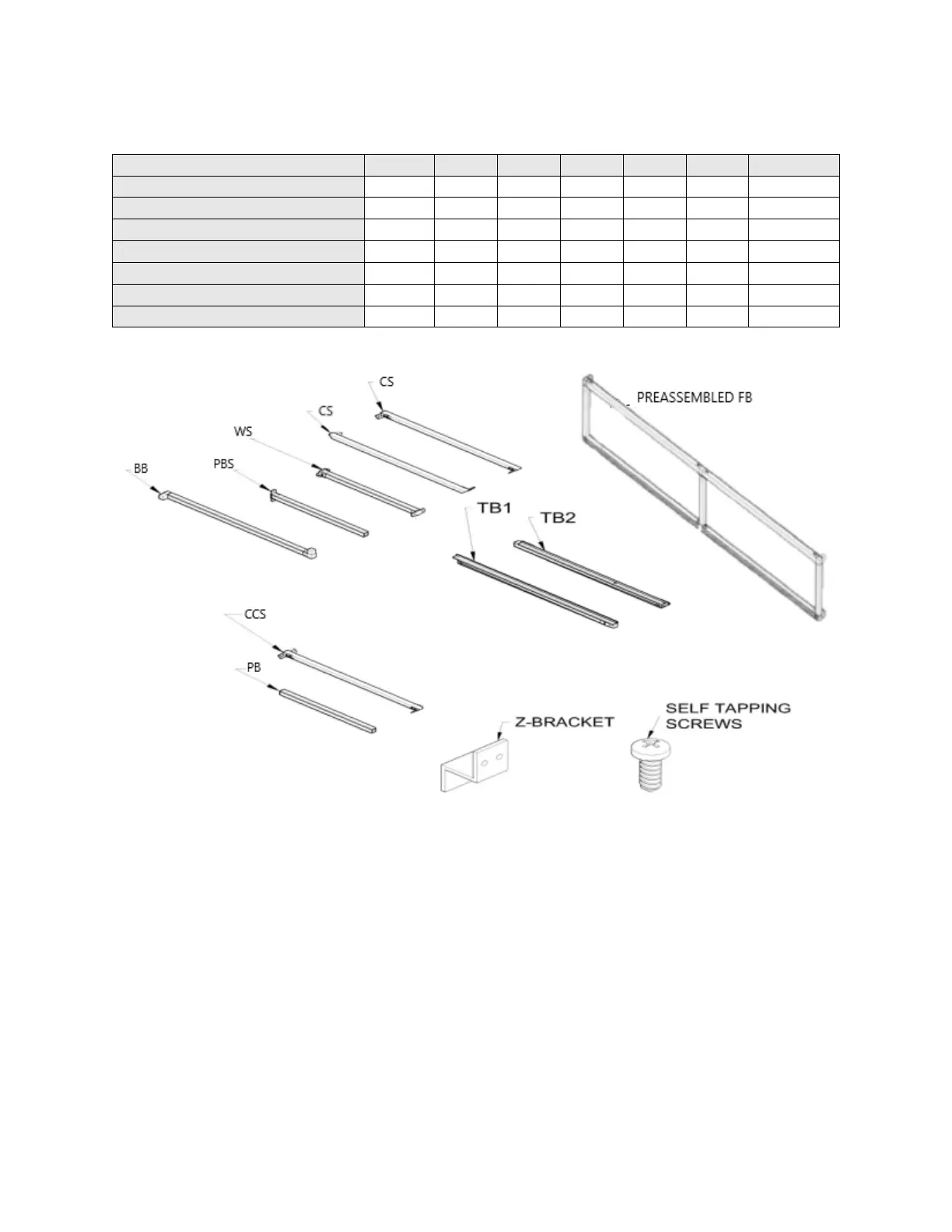

Before you begin, take inventory of all parts included by comparing the contents of your package to the
parts list corresponding to the size of awning you received. Each piece should be identifiable by a label.
Awning Size in Feet
3-4
5
6-7
8-10
11-12
13-18
Custom
(TB) Top Bar
1
1
2
2
3
3
(FB) Front Bar (preassembled)
2
2
4
4
6
6
(CS) Cover Support
2
3
3
5
4
7
(PB) Projection Bar
2
2
2
2
2
2
(PBS) Projection Bar Support
2
2
2
2
2
2
(BB) Back Bar
2
2
2
2
2
2
(WS) Wall Supports
0
1
1
3
5
5
*(CS) count includes Center Cover Supports (CCS)
Parts:
Hardware package includes: Z-brackets and self-tapping screws.
NOTE: You will find that fittings have been pre-installed in the frame parts as we have pre-assembled
and inspected the awning for you in the factory.
Tools required: Electric Impact Drill, Rubber Hammer, Installation Anchors (as per your surface
material), Tape Measure, Safety Glasses, Level, Ladder, and #2 Pencil. You may also wish to have an
assistant depending on the size and weight of the awning.
You will want to assemble the frame on a flat surface with room to reposition the frame as you
complete each section.
