ASSEMBLY
NOTE: All awning sizes over 6’ wide come in multiple sections. Example: Size 6’ Top Bar (TB) consists of
TB1 & TB2. Front Bar (FB) is fully pre-assembled on 3’-5’ New Yorker awnings, 2 pre-assembled sections
on 6’-10’ awnings and 3 pre-assembled sections on 11’-20’ awnings.

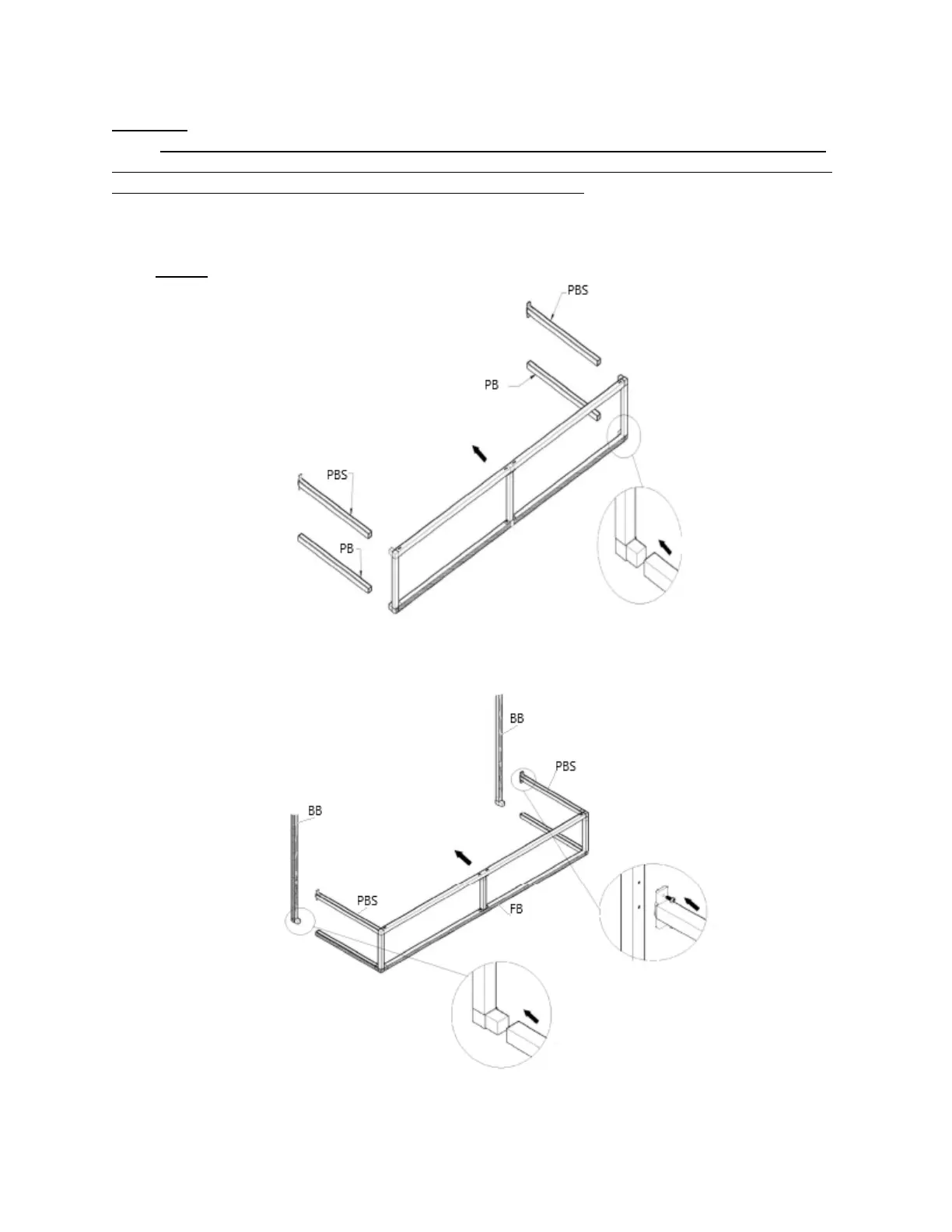

Step 1) Using a Rubber Hammer, attach Projection Bars (PB) to bottom and Projection Bar Supports
(PBS) to top of each side of Front Bar (FB) with Velcro on FB and PB facing upwards. Velcro across FB will
be on bottom rail.
Step 2) Using a Rubber Hammer, attach Back Bars (BB) to Projection Bars (PB). Secure BB to PBS with
self-tapping screws. Velcro on Back Bars (BB) will face front.
