Awntech RN22 - Awning Frame Assembly - Part 2; Attaching Top Bar; Attaching Cover Supports

Page | 4

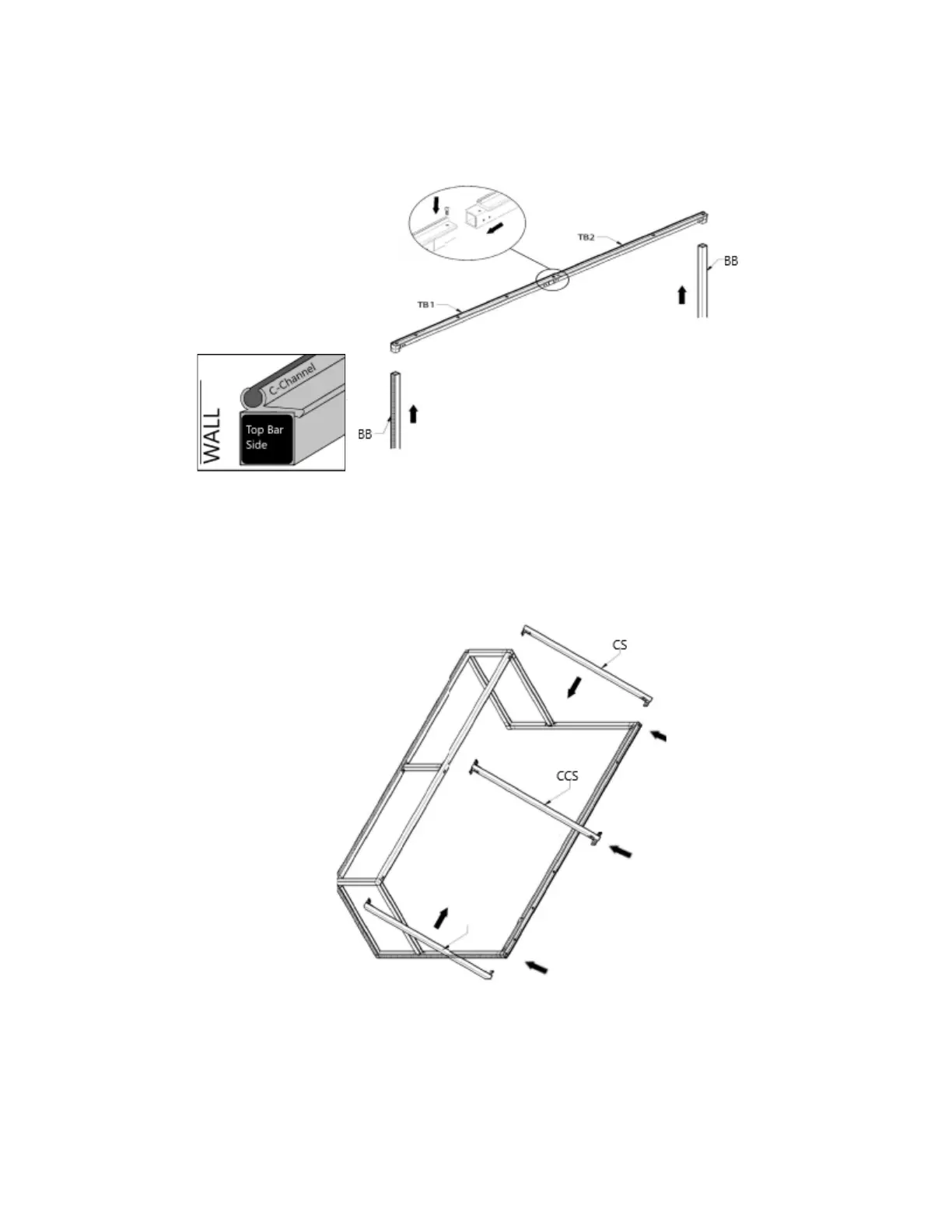

Step 3) Using a Rubber Hammer, attach Top Bar (TB) to Back Bars (BB). NOTE: the C-Channel across the
top of the Top Bar (TB) should be oriented towards the back/wall side.
Step 4) Orient awning frame on its back with Front Bar up towards the sky. Using a Power Drill and self-
tapping screws, locate the pre-drilled holes and attach Cover Supports (CS) to Top Bar (TB). NOTE:
Larger awnings have additional Cover Supports (CCS) and Wall Supports (WS).
