Awntech RN22 - Awning Frame Assembly - Part 3; Completing Frame Assembly

Page | 5

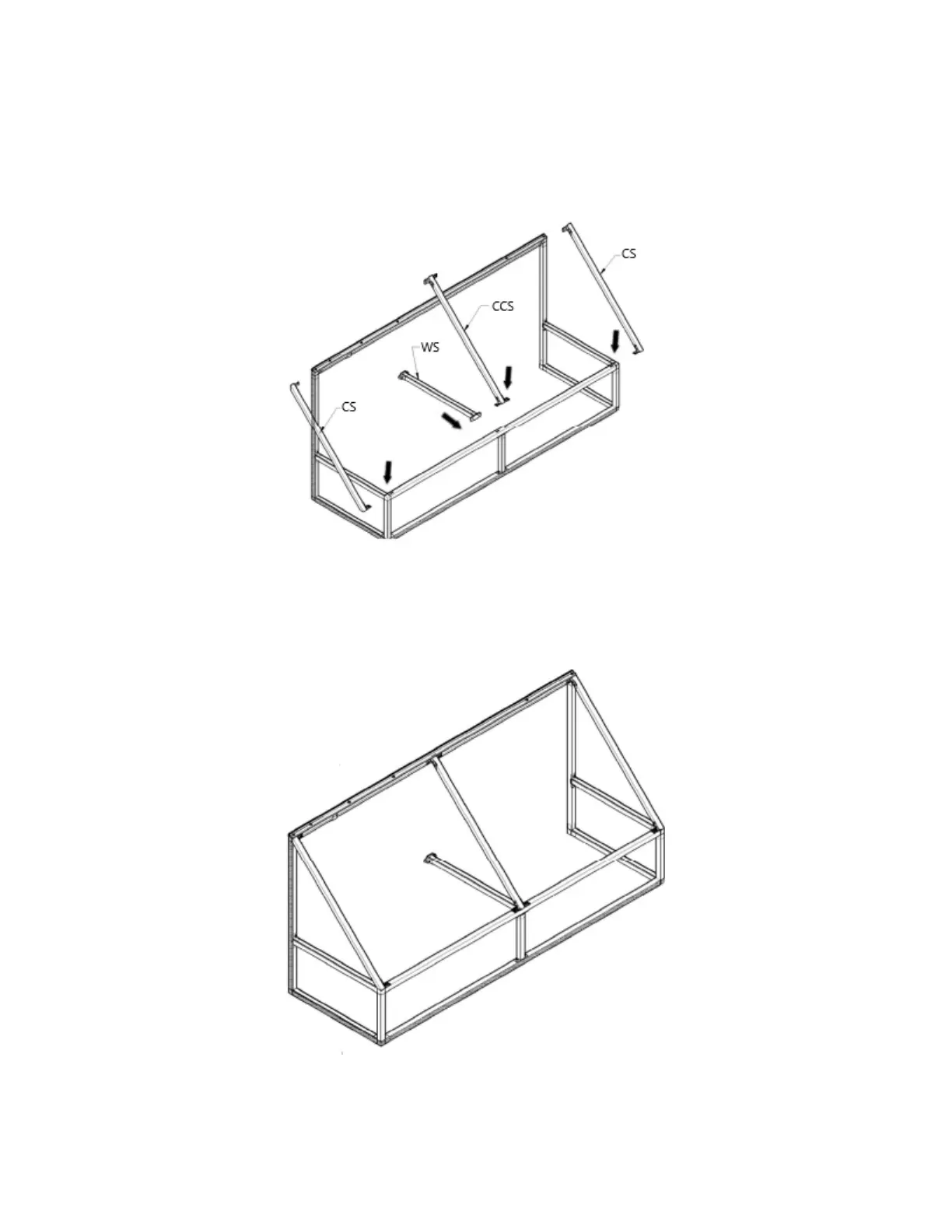

Step 5) Orient awning frame flat on its bottom with Front Bar forward. Using a Power Drill and self-
tapping screws, attach Cover Supports (CS) to Front Bar (FB). Attach Wall Support (WS) to top level of
back side of Front Bar (FB). There are no pre-drilled holes for the Wall Supports (WS).
The New Yorker frame is now complete.
