XF40-Q2901Explosion-ProtectedTemperatureAlarmCamera

ThermalSettings

Thethermalsettingscanbeusedtocongureisothermalsettingsandsetthetemperaturescale.

•Isothermalsettings.Seepage22.

•Temperaturescale.Seepage24.

IsothermalSettings

Isothermalsettingsareusedtocongurethecolorsintheimagethatvisuallyhighlighttemperaturedifferences.Therearetwo

palettetypesthatcanbeappliedtotheimage,andtheverticalbarindicateswhichpalettetypethatisactive:

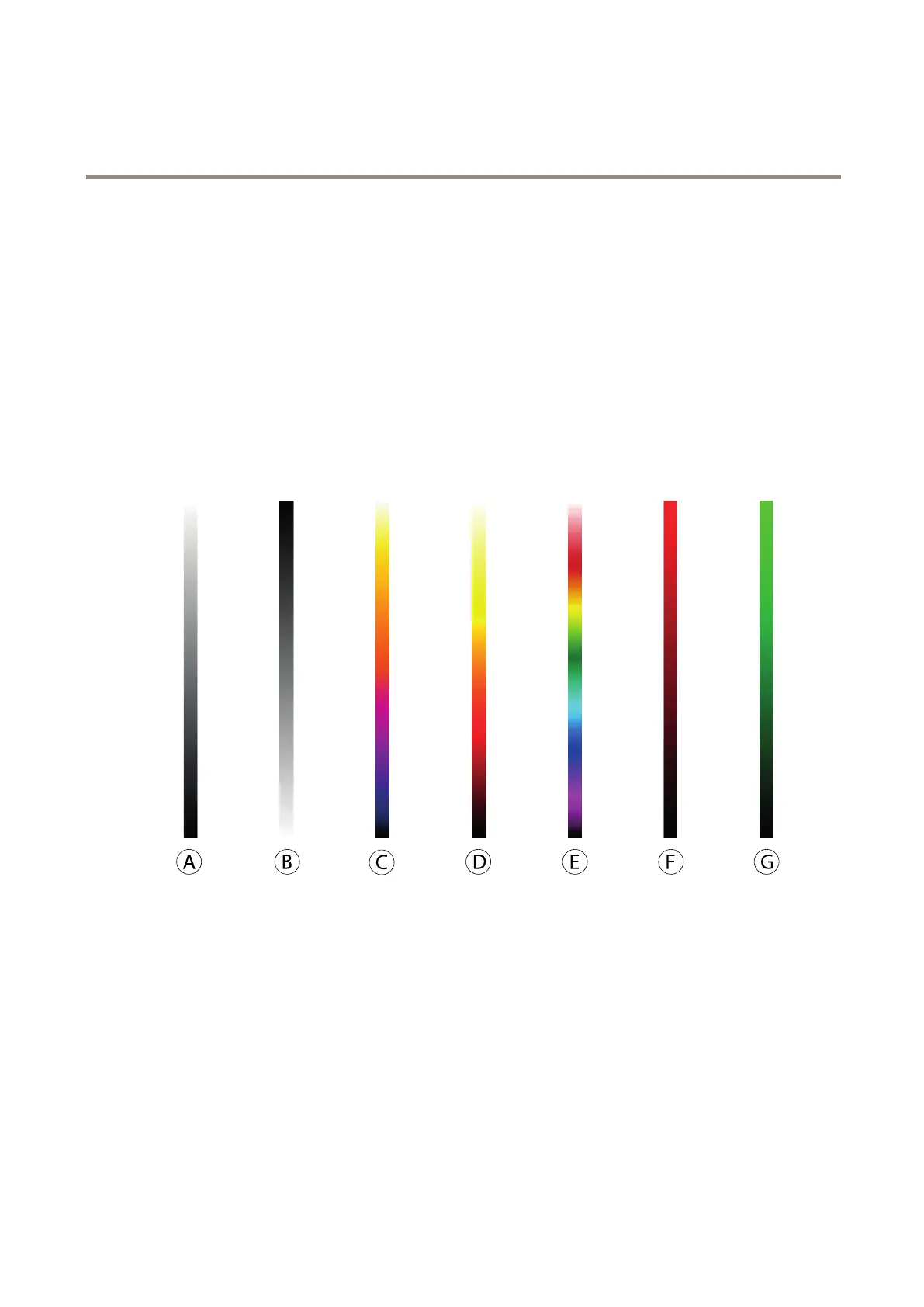

•Palette(default):Allthecolorsintheappliedpaletteareusedtocolortheimagebutnocolorscorrespondinanywayto

specictemperaturesintheimage.Theverticalbarshowstheselectedpalette.

AWhite-hot

BBlack-hot

Planck

DAxis

ERainbow

FRed-hot

Nightvision

•Isothermpalette(isothermenabled):Isothermpalettesmakeitpossibletoisolatepredenedcolorstoselectable

temperaturelevels.Theverticalbarshowstheselectedisothermpaletteandtheenteredtemperaturelevels.
