Product Overview
AXIS 700 User’s Guide
6
Front Panel Indicators
Status Indicator -
The Status indicator flashes during startup and turns off when the AXIS
700 is ready for use. If the Status indicator remains on, this may indicate an error.
Busy Indicator -
The Busy indicator turns on when the AXIS 700 is allocated for use and
remains on during the scanning process.
Network Indicator -
The Network indicator flashes to indicate network activity.
Power Indicator -
The Power indicator is normally on while power is applied. If the indicator
remains off or flashes, this indicates a problem with the AXIS 700 or its power supply.
Network Connectors -
The AXIS 700 is equipped with 10baseT and 10base2 connectors for
connection to the Ethernet network.
SCSI Connector -
The AXIS 700 has a SCSI connector for connection to a scanner.
Power Supply -
The AXIS 700 can use either the AXIS PS-C or AXIS PS-E power supply.
Push Button -
The Push button can be used for restoring the AXIS 700 parameters to the
factory default settings.

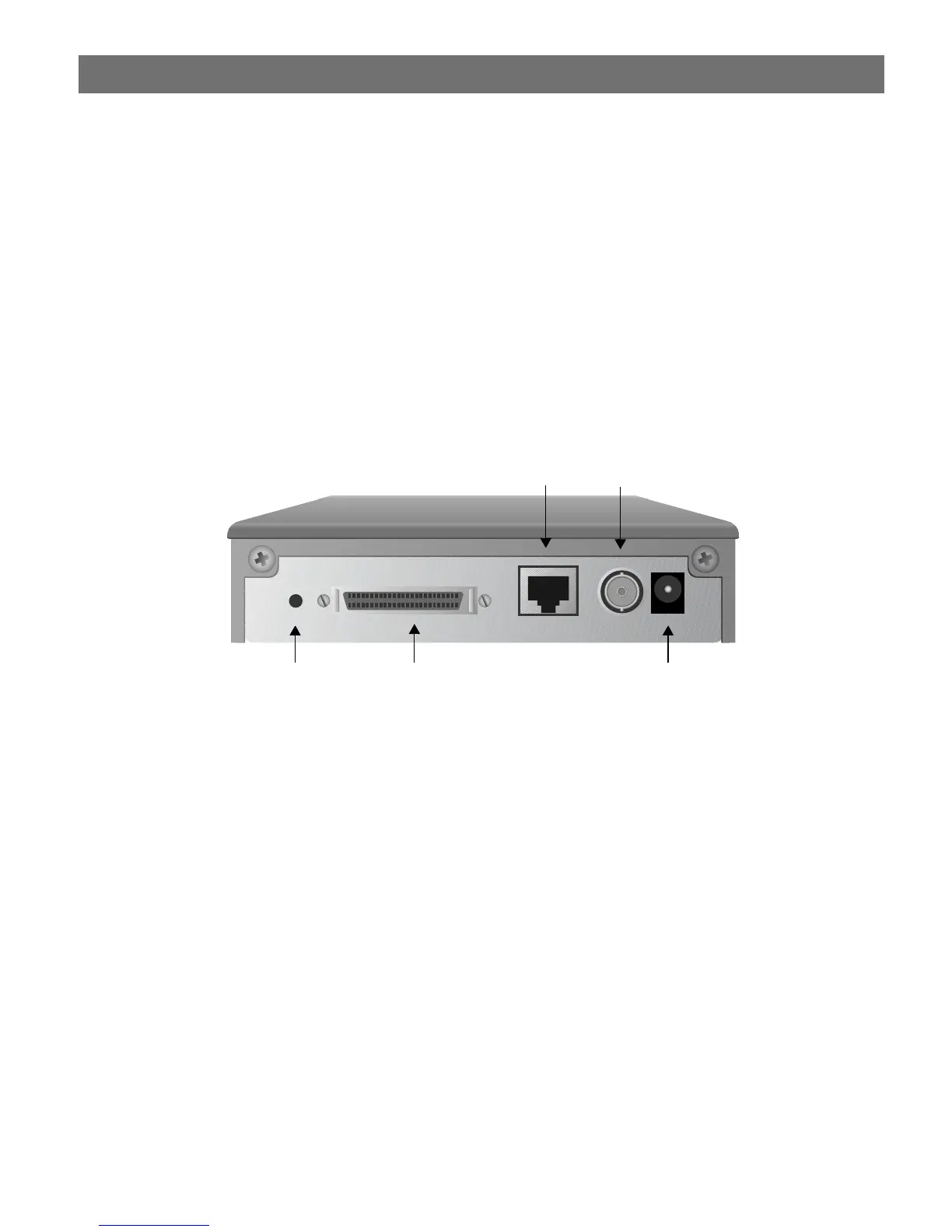

SCSI connector
Network connectors
Power supply
10baseT 10base2
Push button
