Axis A8105-E - 1.7 Terminal Block Wiring

AXIS A8105-E installation

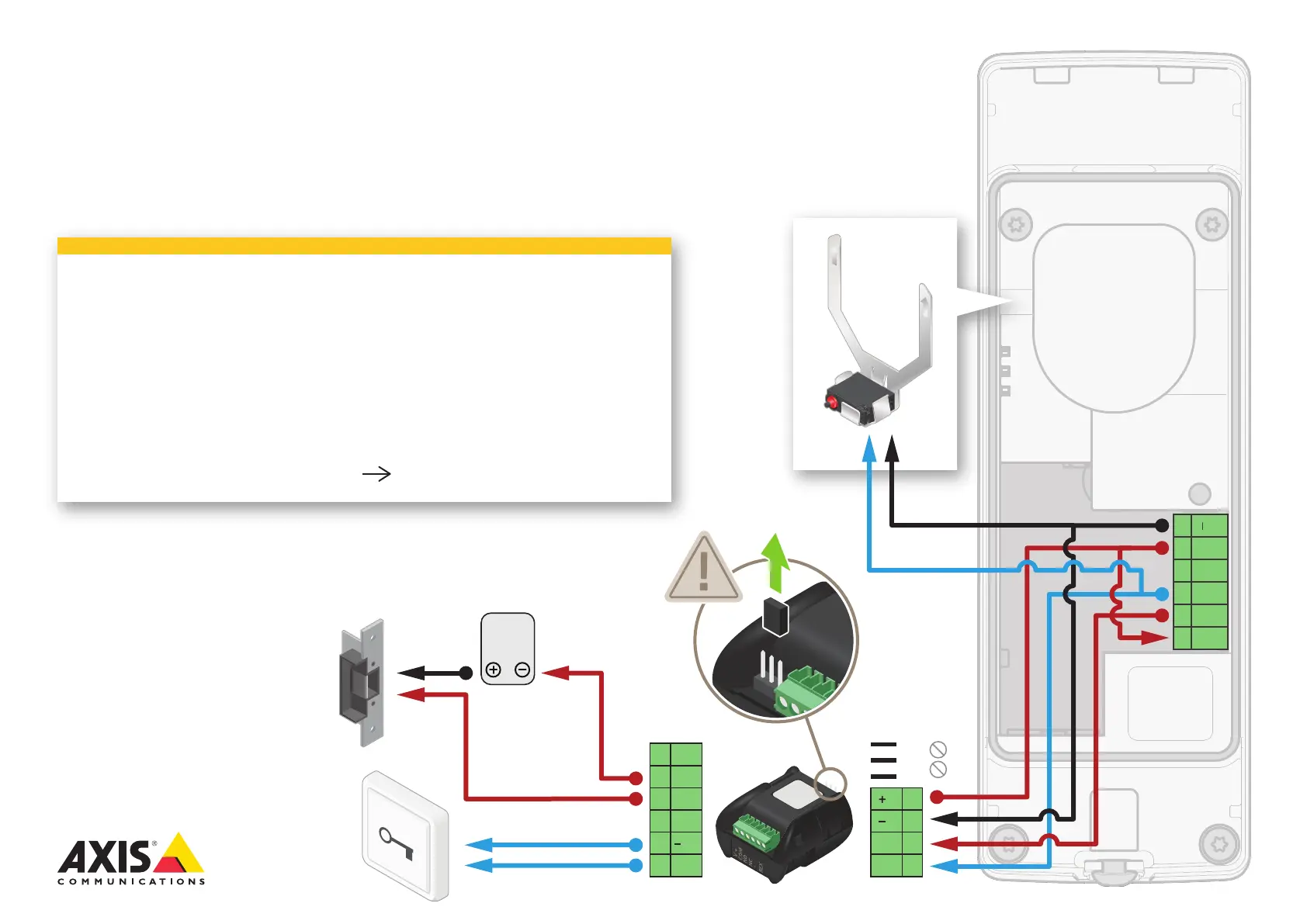

12V Fail-secure lock powered by external power supply
Optional setup using AXIS TA8501 Physical Tampering Switch
These instructions apply when you use the optional setup for
AXIS TA8501 Physical Tampering Switch with AXIS A9801 Security
Relay.
NOTE: With this setup you can't notify the user if the tampering
switch triggers, but IO1 is available for other use/congurations.
See conguration on next page
Page 1/2
12V l01 l02
CO
NO/ NC
I/O
REL
12V
24V
V+
COM
NO
NC
REX
Power
supply
Max 30V,
Max 1.2A
