Axis AX1202BT User Manual

3
Notes:
 'RQRWH[HUWXQQHFHVVDU\SUHVVXUHRQWKHIURQWSDQHOZKHQDWWDFKLQJRUUHPRYLQJLW
3OHDVHXVHWKHFDVHVXSSOLHGZKHQWKHIURQWSDQHOLVUHPRYHG

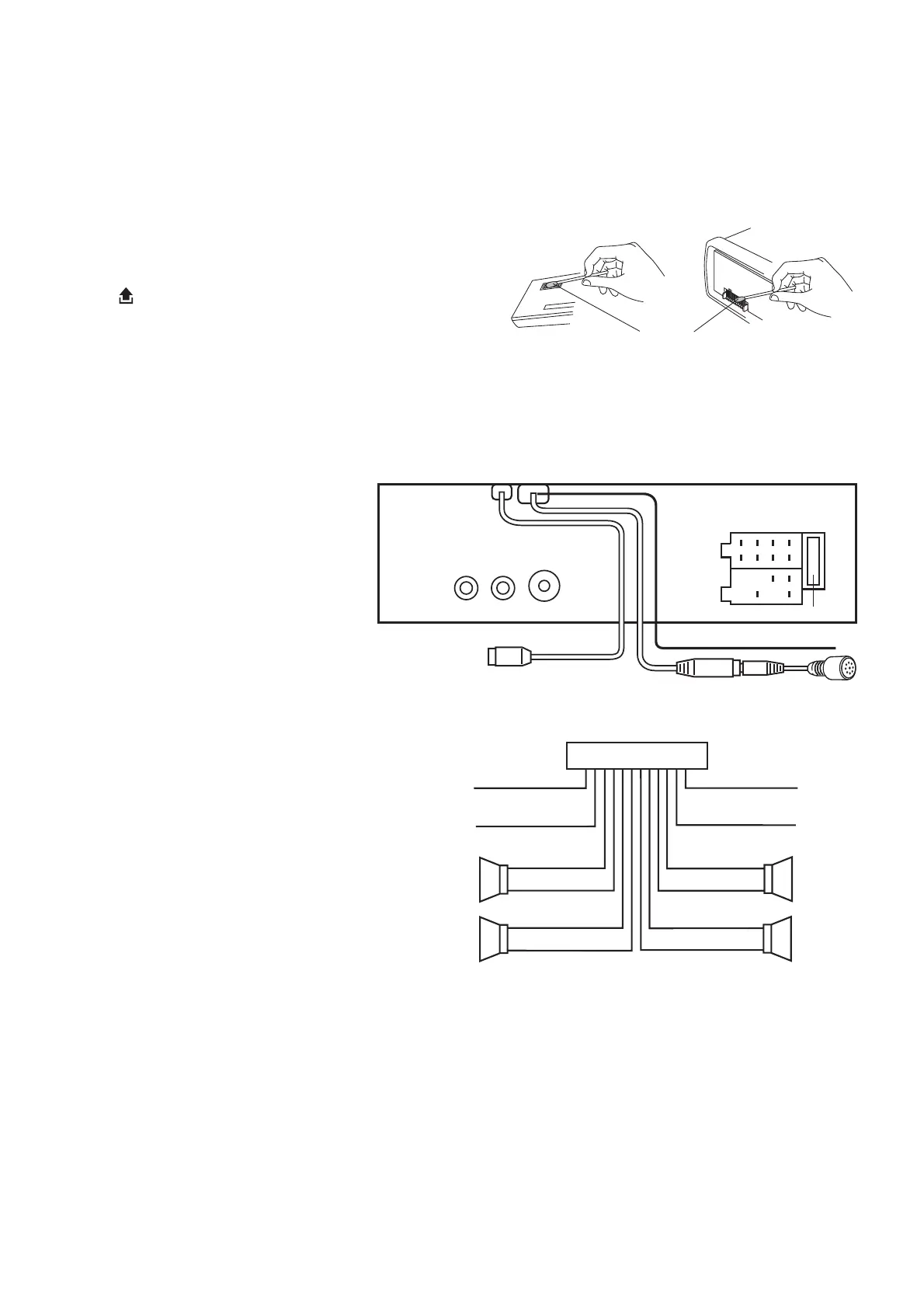

CLEANING THE CONNECTOR
The unit may not function properly if the connectors between
the unit and the front panel are contaminated with dirt. In order
WRSUHYHQWWKLVIURPKDSSHQLQJGHWDFKWKHIURQWSDQHOE\SUHVV-
ing the
button and clean the connector from time to time.
Clean the connector with a cotton swab together with contact
cleaner as illustrated. Be sure to clean them carefully pin by pin
and make sure not to damage the connecting points.
WIRE CONNECTION
RCA Jack Line Out:
Red (right) White (left)
Subwoofer: (Green) wire
Yellow (jack)
CONNECTOR A
4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND
Note: (connector A no. 7) must be connected by
car ignition key in order to avoid that car battery
being drained when the car will be not used
for long period.
CONNECTOR B
1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)
Maintenance
FUSE REPLACEMENT
,IWKHIXVHEORZVFKHFNDOOSRZHUFRQQHFWLRQVDQGUHSODFHWKHIXVH,IWKHIXVHEORZVDJDLQFKHFNIRUDQHOHFWURQLF
RUZLULQJIDXOW&RQVXOW\RXUQHDUHVWUHSDLUFHQWHU
Warning
8VHWKHVSHFLÀHGDPSHUDJHIXVHIRUHDFKOHDG8VHRIDKHDYLHUIXVHPD\FDXVHVHULRXVGDPDJH
Cotton Swab
Rear of
front panel
Main unit
FUSE 10A
A
B
R(RED)
YELLOW
GREEN
L(WHITE)
LINE OUT
ANTENNA
CONNECTOR
ISO CONNECTOR
8642
7531
84
75
BLUETOOTH ANTENNA
SUBWOOFER
CONNECT TO EXTERNAL
MICROPHONE
GREY +
GREY/BLACK –
FRONT
RIGHT
SPEAKER
VIOLET +
VIOLET/BLACK –
REAR
RIGHT
SPEAKER
FRONT
LEFT
SPEAKER
REAR
LEFT
SPEAKER
+ WHITE
– WHITE/BLACK
+ GREEN
– GREEN/BLACK
ISO A/B PLUG
POWER
ANTENNA
BLUE
IGNITION SWITCH (B+)
RED
MEMORY
YELLOW
BACK UP
BLACK
GROUND (–)

Axis AX1202BT Specifications

General

Brand	Axis
Model	AX1202BT
Category	Car Stereo System
Language	English
