Axis M1033-W User Manual

AXISM1033-WNetworkCamera

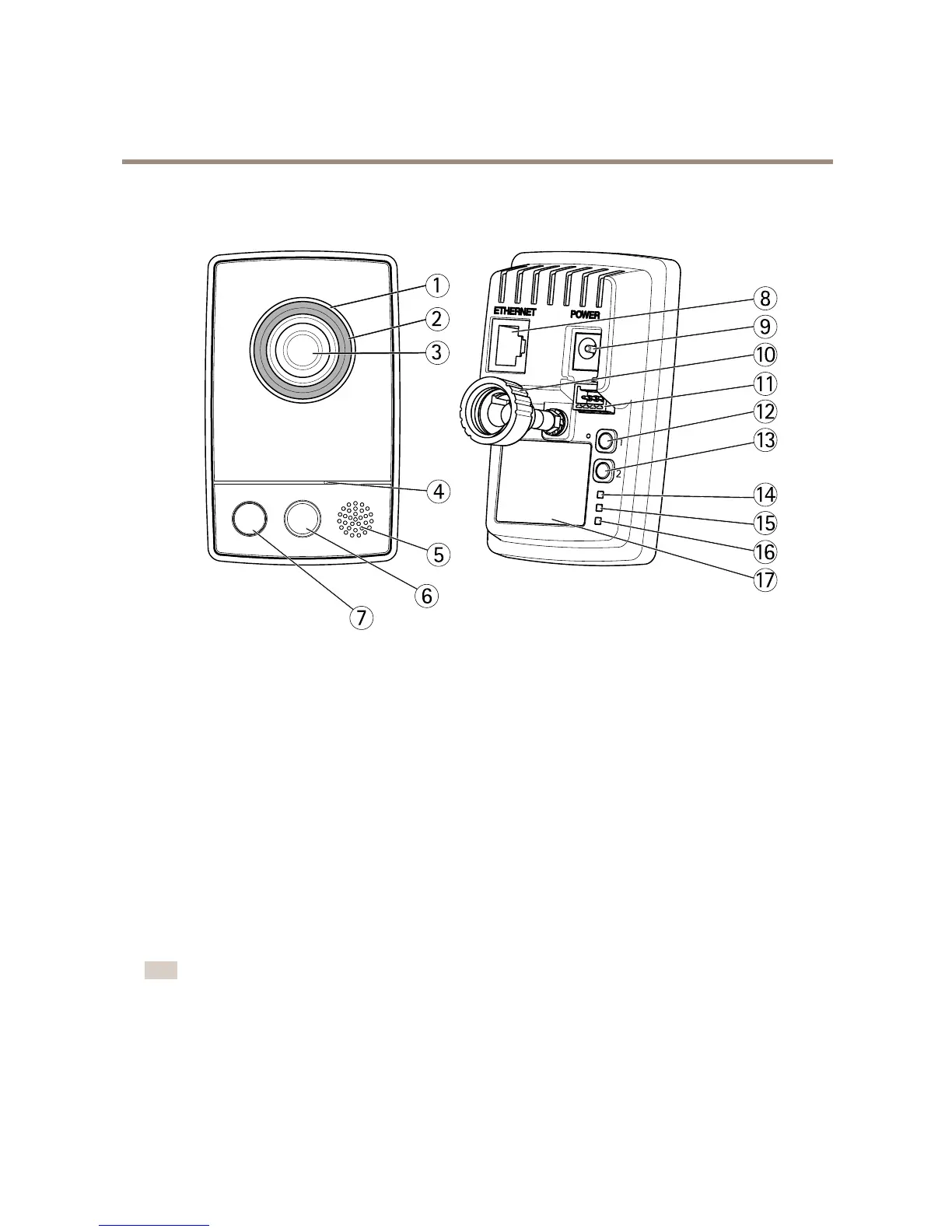

HardwareOverview
HardwareOverview
1
2
8
9
12
11
10
13
14
15
16
17
4
5
6
7
2
1
3
1
StatusLEDindicator
2
Focusring
3
Lens
4
Microphone
5
Speaker
6
PIRsensor
7
Light(whiteilluminationLED)
8
Networkconnector(RJ-45)
9
Powerconnector
10
Lockring
11
I/Oterminalconnector
12
Controlbutton
13
WLANpairingbutton
14
PowerLEDindicator
15
NetworkLEDindicator
16
WirelessLEDindicator
17
Partnumber(P/N)&Serialnumber(S/N)
TheAxisproductisequippedwithalenswithmanualfocus.Itisdeliveredwiththelensprefocusedandmanualfocusingis
usuallynotrequired.
Note
Onlychangethefocusifrequired,forexampleiftheimageisblurry.
ConnectorsandButtons
Fortechnicalspecications,seepage63.
