AXISM7011VideoEncoder

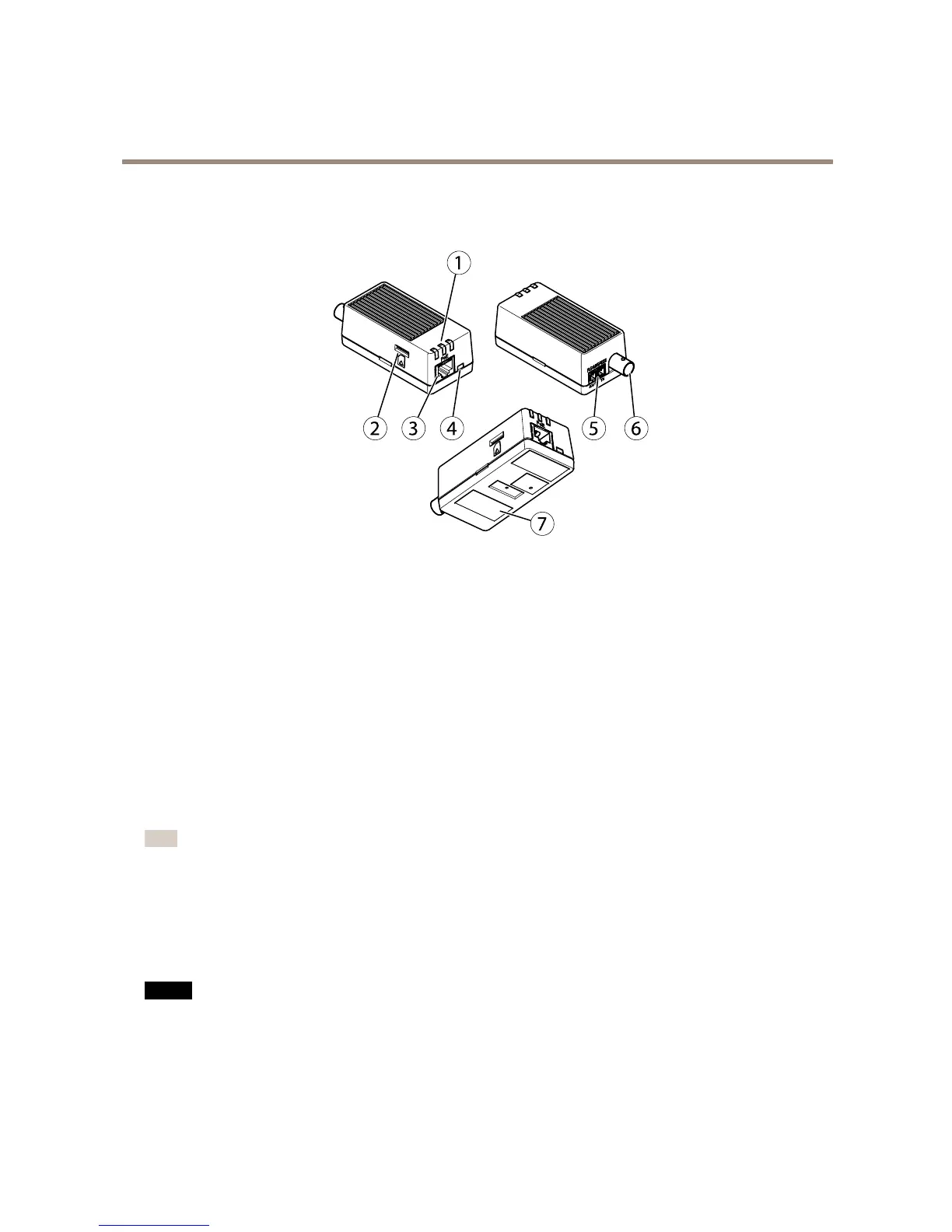

HardwareOverview
HardwareOverview
2
3
4
5
6
1
7
1
LEDindicatorsforstatus,power,network
2
microSD/microSDHC/microSDXCslotsupportingmemorycardupto64GB(cardnotincluded)
3
Networkconnector(PoE)
4
Controlbutton
5
RS-485/RS-422connector
6
BNCconnector
7
Partnumber(P/N)&Serialnumber(S/N)
ConnectorsandButtons
Fortechnicalspecications,seepage58.
BNCConnector
Thevideoinputisterminatedusingacoax/BNCconnector.
Connecta75Ohmcoaxialvideocable;therecommendedmaximumlengthis250m(800ft).
Note
75Ohmvideoterminationcanbeenabled/disabledforthevideoinputthroughtheproduct'swebpageatVideo>Camera
Settings>Videotermination.Videoterminationisenabledonfactorydefault.Iftheproductisconnectedinparallelwith
otherequipment,foroptimumvideoquality,itisrecommendedthatvideoterminationisenabledonlyforthelastdevice
inthevideosignalchain.
NetworkConnector
RJ45EthernetconnectorwithPoweroverEthernet(PoE).
NO NO
NO
TICE TICE
TICE
Duetolocalregulationsortheenvironmentalandelectricalconditionsinwhichtheproductistobeused,ashieldednetwork
cable(STP)maybeappropriateorrequired.Allcablesconnectingtheproducttothenetworkandthatareroutedoutdoors
orindemandingelectricalenvironmentsshallbeintendedfortheirspecicuse.Makesurethatthenetworkdevices
areinstalledinaccordancewiththemanufacturer’sinstructions.Forinformationaboutregulatoryrequirements,see
ElectromagneticCompatibility(EMC)onpage2.
7

Axis M7011 Specifications

General

NTSC resolutions	720 x 480 pixels
Motion JPEG frame rate	30 fps
Maximum video resolution	720 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Internal memory	256 MB
Angle of rotation	270 °
Compatible operating systems	Windows XP, Windows Vista, Windows Server 2008, Windows 7, Windows 8, Windows Server 2012
Bundled software	AXIS Camera Companion, AXIS Camera Station
Product color	Blue
Security algorithms	HTTPS, SSH, SSL/TLS
Password protection type	User
Wi-Fi	No
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
BNC input ports	1
I/O terminal ports	0
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Weight	71 g
Dimensions (WxDxH)	38 x 90 x 29 mm
