HowtoInstallAXISP1214-ESensorUnit

TheAXISP1214-EcanbemountedliketheAXISP1214/AXISP1224-EE,seepage21.

TheAXISP1214-Ecanalsobemountedinthesuppliedoutdoorhousing.Thecablescanberouted

throughthewalldirectlyintothehousing,orthroughoneofthepunch-outsinthecover.

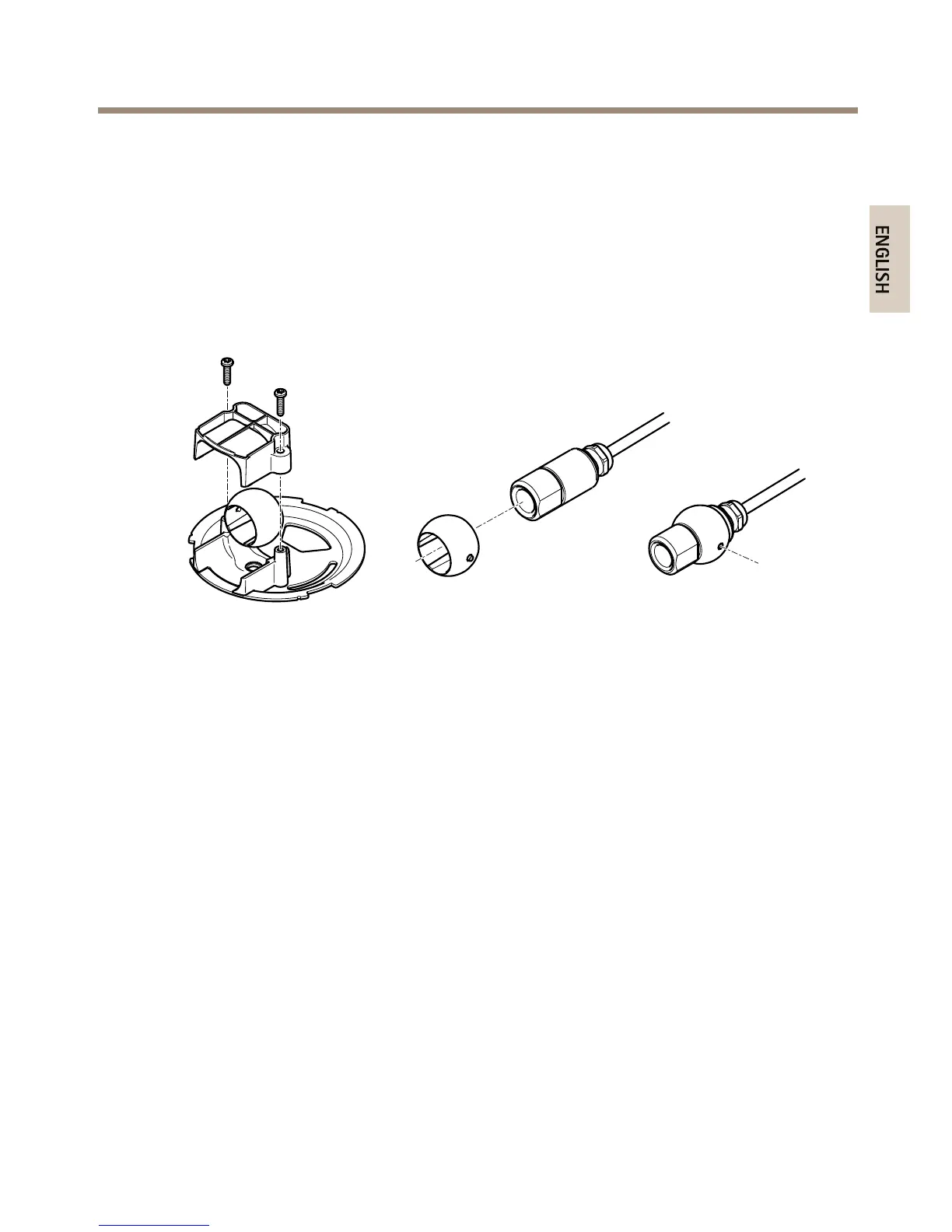

1.Removethetwoscrewsandthebracket.

2.Insertthecameraintotheballjointandfastenwiththestopscrew.

3.Drillaholethroughthewallorremoveoneofthepunch-outsinthecover.

4.Fastentheplatetothewallusingscrewsandplugsappropriateforthewallmaterial.

Ensurethatthecamerabracketispointingtowardstheareatobemonitored.Ifrouting

thecablethroughthewall,alignthecut-outintheplatewiththeholeinthewall.

5.Placetheballinthesocketandfastenthebracketwiththescrews.Aimthecamera

awayfromthewallbeforetighteningthescrews.Positionthecamerasothattheat

surfaceonthethreadisverticalorhorizontal.

6.Routethecablethroughthewall,orthroughthepunch-outinthecover.

7.Attachthecover.

8.ProceedtoConnectthecables,seeConnecttheCablesonpage24.
