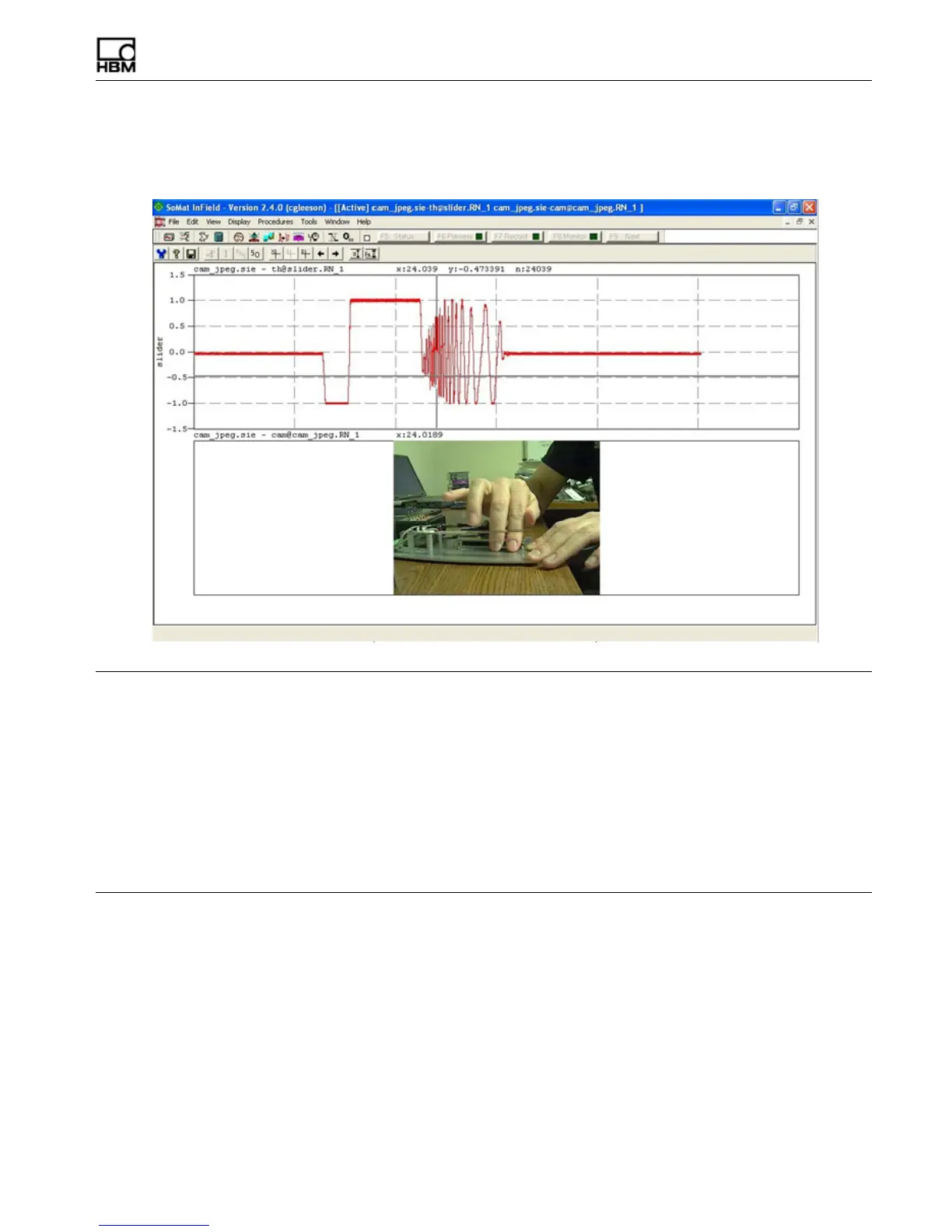

3. In the resulting multiplot, use the cursor to scroll through the data. The image
shows the camera frame at the time value of the cursor.
Notes on Viewing Camera Data in InField
Consider the following when viewing camera data in InField:
•
If a second cursor is enabled, the images from the camera channel are still tracked to the first cursor. Return to single
cursor mode to continue scrolling through the camera frames.
•
The timestamp of the image is indicated by the
x
-value on the multiplot. The timestamp is test run time. To calculate
real time, view the test start time in the metadata viewer and add the
x
-value in seconds.
•
It is possible for the test not to record the full requested frame rate due to camera functionality. If the load on the network
or the eDAQ is high, the camera may drop frames to avoid a lag in the data stream.
•
When scrolling through the high sample rate time history channel, the camera image repeats itself for every sample of
time history data until the next camera frame in the data stream.
