Axis P1455-LE User Manual

AXISP1455-LENetworkCamera
Learnmore
Learnmore
Viewarea
Aviewareaisacroppedpartofthefullview.Youcanstreamandstoreviewareasinsteadofthefullviewtominimizebandwidth
andstorageneeds.IfyouenablePTZforaviewarea,youcanpan,tiltandzoomwithinit.Byusingviewareasyoucanremoveparts
ofthefullview,forexample,thesky.
Whenyousetupaviewarea,werecommendyoutosetthevideostreamresolutiontothesamesizeasorsmallerthantheviewarea
size.Ifyousetthevideostreamresolutionlargerthantheviewareasizeitimpliesdigitallyscaledupvideoaftersensorcapture,
whichrequiresmorebandwidthwithoutaddingimageinformation.
Capturemodes
CapturemodedenesthemaximumresolutionandmaximumframerateavailableintheAxisproduct.Ifusingacapturemodewith
asmallerresolutionthanthemaximumresolution,theangleofviewisreduced.Thecapturemodealsoaffectslightsensitivity.A
capturemodewithahighmaximumframeratehasreducedlightsensitivityandviceversa.
Thelowerresolutioncapturemodeiscroppedoutfromthehighestresolution.

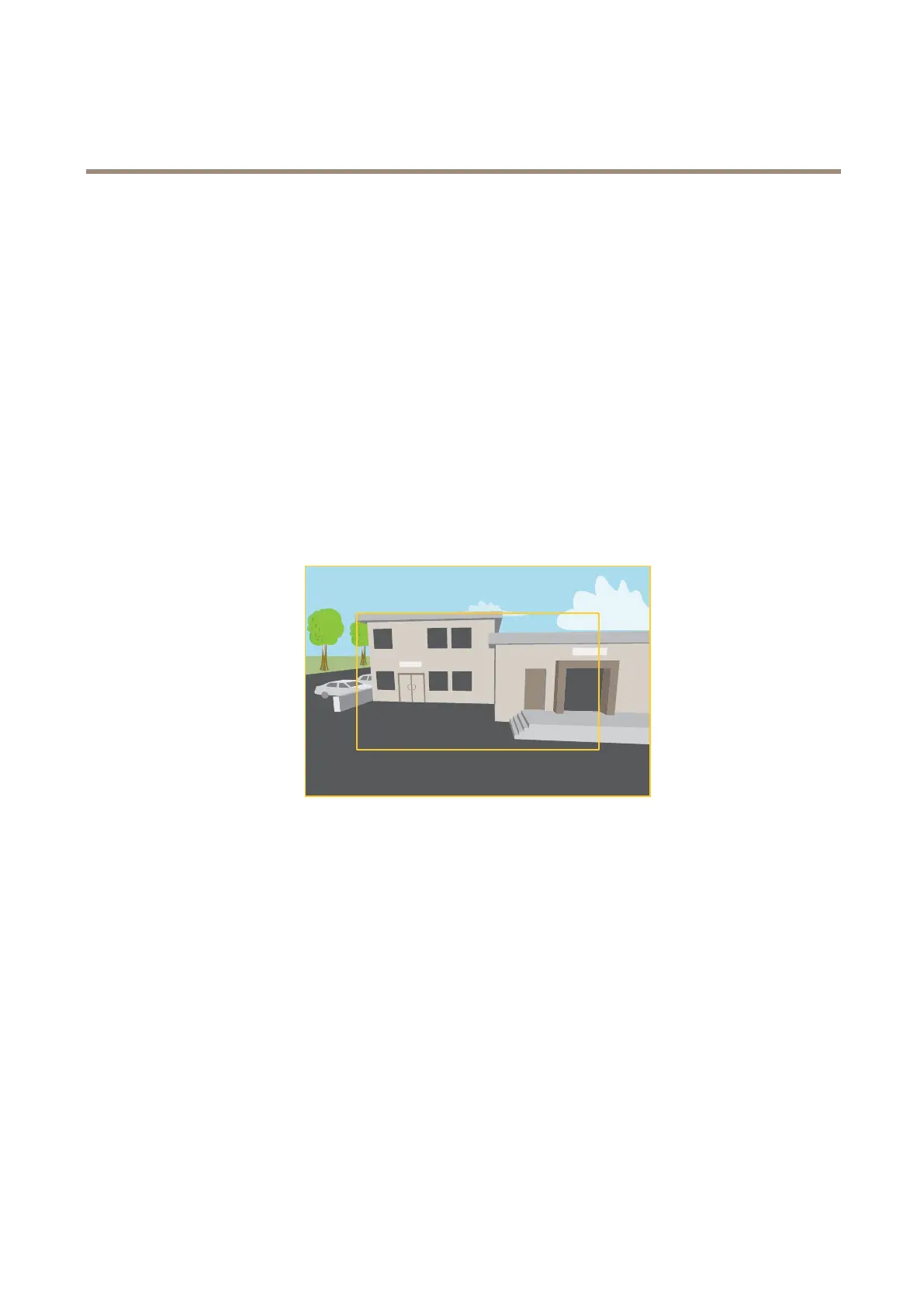

Theimageshowshowtheeldofviewandaspectratiocanchangebetweentwodifferentcapturemodes.
Whichcapturemodetochoosedependsontherequirementsofframerateandresolutionforthespecicsurveillancesetup.For
specicationsaboutavailablecapturemodes,seetheproduct’sdatasheetataxis.com.
Remotefocusandzoom
Theremotefocusandzoomfunctionalityallowsyoutomakefocusandzoomadjustmentstoyourcamerafromacomputer.Itisa
convenientwaytoensurethatthescene’sfocus,viewingangleandresolutionareoptimizedwithouthavingtovisitthecamera’s
installationlocation.
Privacymasks
Aprivacymaskisauser-denedareathatcoversapartofthemonitoredarea.Inthevideostream,privacymasksappeareitheras
blocksofsolidcolororwithamosaicpattern.
You’llseetheprivacymaskonallsnapshots,recordedvideo,andlivestreams.
YoucanusetheVAPIX®applicationprogramminginterface(API)toturnofftheprivacymasks.
18

Axis P1455-LE Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Number of sensors	1
Optical sensor size	1/2.8 \
Optical zoom	3 x
Focal length range	3 - 9 mm
Maximum aperture number	1.6
Camera shutter speed	1/66500 - 2 s
Minimum illumination	0.01 lx
Type	IP security camera
PTZ modes	Digital PTZ
Certification	55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, IEC 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267
Placement supported	-
Connectivity technology	Wired
Bit rate control	Variable Bit Rate (VBR)
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Video compression formats	H.264, H.265, M-JPEG, MPEG4
Supported graphics resolutions	160 x 90, 1920 x 1080 (HD 1080)
Number of users	8 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet interface type	Gigabit Ethernet
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
IK code	IK10
Form factor	Bullet
Mounting type	Wall
Product color	Black, White
Housing material	Aluminum
International Protection (IP) code	IP66, IP67
Sample rate	48 kHz
Audio system	2-way
Audio formats supported	AAC-LC, ADPCM, LPCM, PCM
Security algorithms	802.1x RADIUS
Alert notification type	E-mail
Flash memory	512 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Power source type	PoE
Power consumption (max)	12.95 W
Power consumption (typical)	7.7 W
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	40 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 100 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	260 mm
Width	132 mm
Weight	1000 g
