Page 20 AXIS P5532/P5534 Installation Guide
Multi-connector cable (not included)
When connecting external equipment to AXIS P5532/P5534, a multi-connector cable is required in
order to maintain the camera’s IP51 rating. The multi-connector cable can be purchased from your
Axis reseller.
Connect the multi-connector cable to the camera’s multi connector, see illustration on page 5 and
instructions on page 7 and page 8. The cable provides the following connectors:

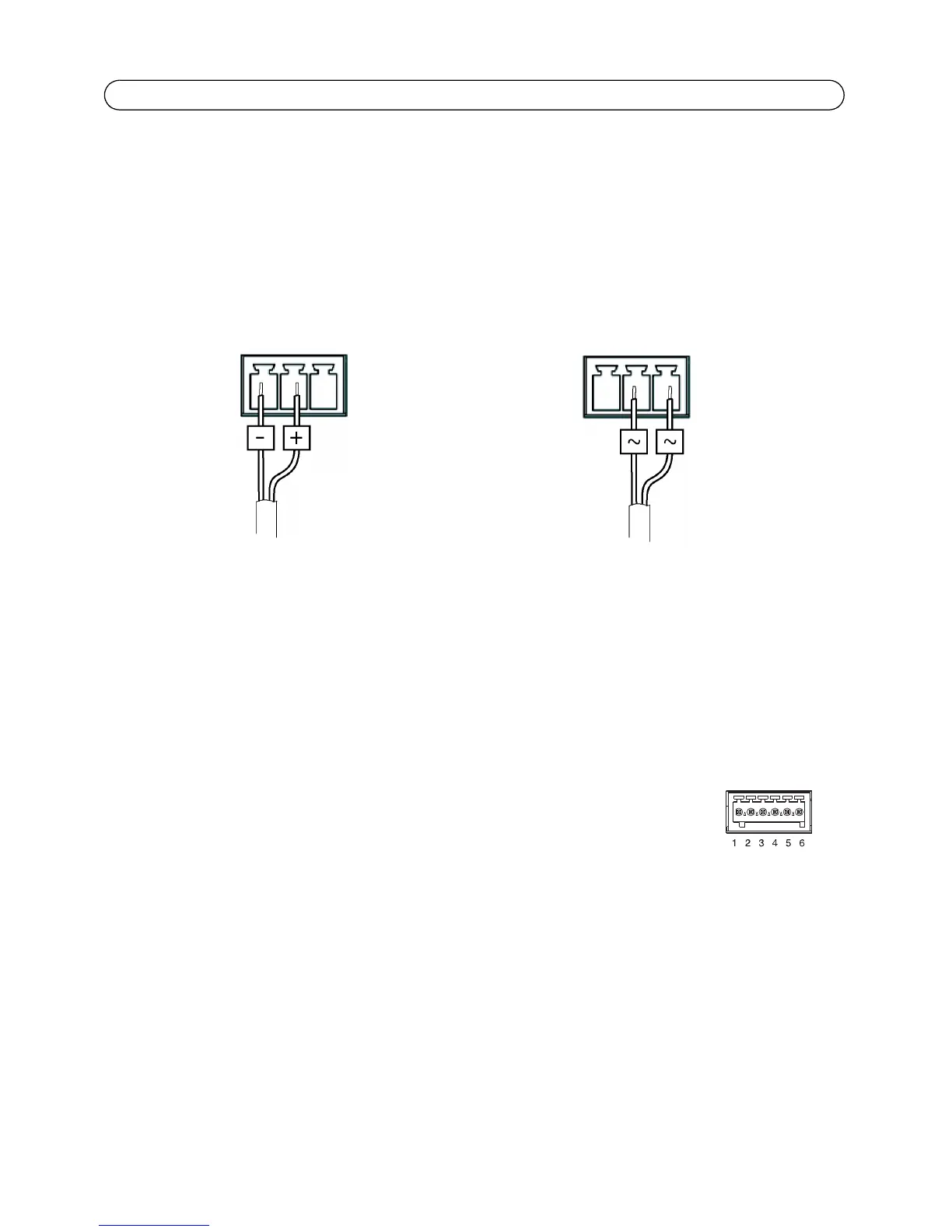

Power connector – 3-pin terminal block used for power input.
Audio in (pink) – 3.5 mm input for a mono microphone, or a line-in mono signal (left channel is
used from a stereo signal).
Audio out (green) – 3.5 mm output for audio (line level) that can be connected to a public address
(PA) system or an active speaker with a built-in amplifier. A pair of headphones can also be
attached. A stereo connector must be used for the audio out.
I/O terminal connector – Used in applications for e.g. motion detection, event
triggering, time lapse recording and alarm notifications. In addition to an auxiliary
power and a GND pin, the I/O terminal connector has 4 pins that can be
configured as either input or output. These pins provide the interface to:
• Digital output - For connecting external devices such as relays and LEDs. Connected devices
can be activated by the VAPIX® Application Programming Interface, output buttons on the
Live View page or by an Event Type. The output will show as active (shown under
Events > Port Status if the alarm device is activated.
DC power input, 24-34 V DC
AC power input, 20-24 V AC
AXIS P5532: max 15 W
AXIS P5534: max 17 W
AXIS P5532: max 20 VA
AXIS P5534: max 23.6 VA
