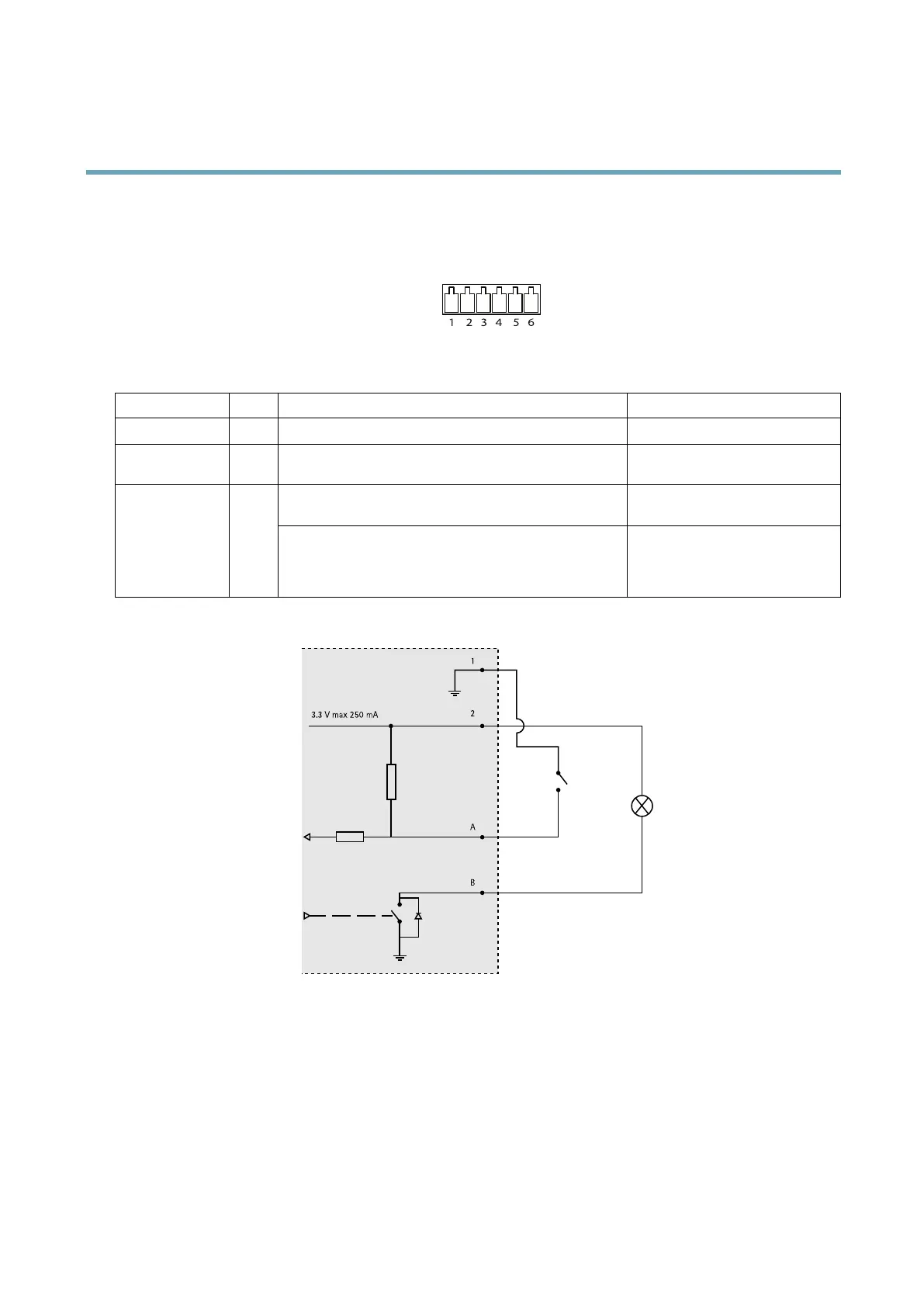

I/O Connector
6-pin congurable terminal block for:
• Auxiliary power (DC output)
• Digital Input
• Digital Output
• 0 V DC (-)
Function Pin Notes
Specications
0 V DC (-)
1
DC output
2
Can be used to power auxiliary equipment.
Note: This pin can only be used as power out.
3.3 V DC
Max load = 250 mA
Digital input – Connect to pin 1 to activate, or leave oating
(unconnected) to deactivate.
0 to max 40 V DCCongurable
(Input or Output)
3–6
Digital output – Connected to pin 1 when activated, oating
(unconnected) when deactivated. If used with an inductive
load, e.g. a relay, a diode must be connected in parallel with
the load, for protection against voltage transients.
Max load =100 mA
Max voltage = +40 V DC
A
I/O congured as input
B
I/O congured as output
