AXISQ1615MkIINetworkCamera

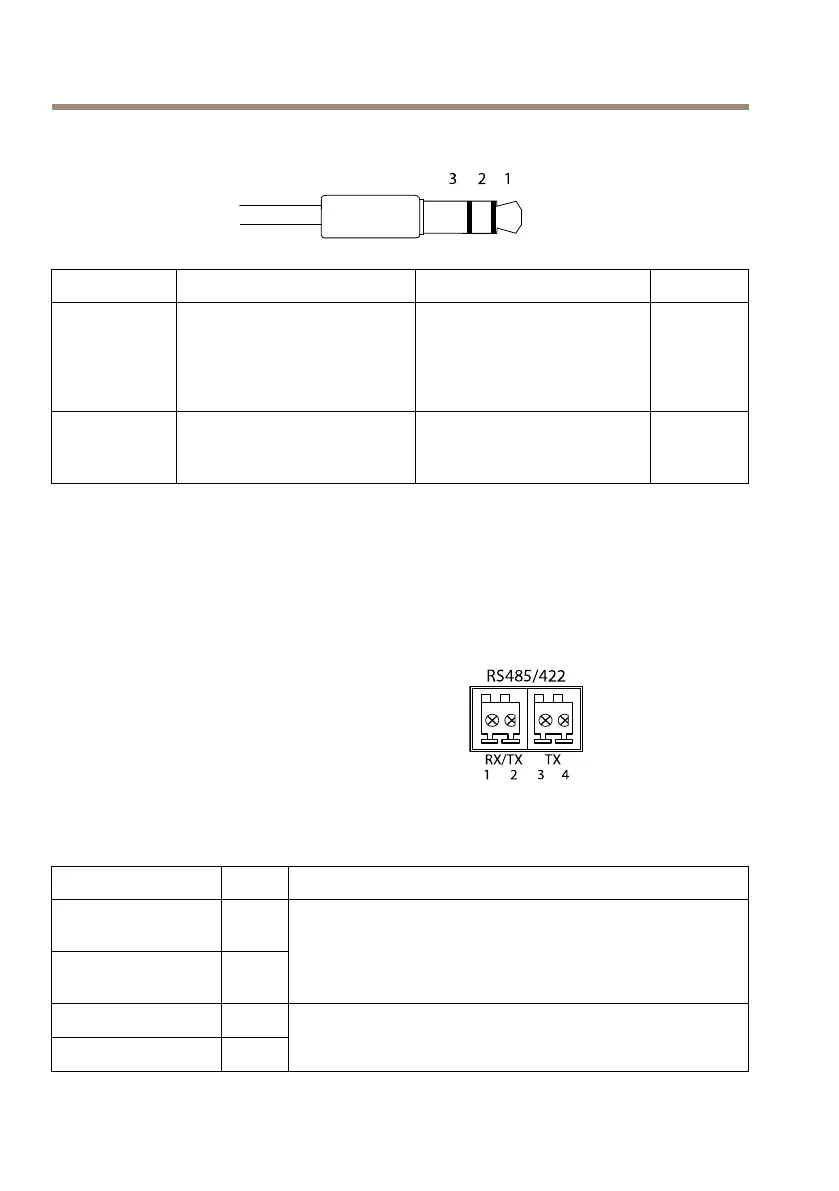

Connettoreaudio
Connettoriaudioda
3,5mm(stereo)
1Punta2Anello
3Guaina
IngressoaudioBilanciato:Ingressomicrofono
segnale"Hot"/linea
Nonbilanciato:Ingresso
microfono/linea
Bilanciato:Ingressomicrofono
segnale"Cold"/linea
Nonbilanciato:Inutilizzato
Terra
Uscitaaudio
Uscitalinea,mono(compatibile
conconnettorestereo)
Uscitalinea,mono
(compatibileconconnettore
stereo)
Terra
Ilmicrofonointernovieneutilizzatoperimpostazionepredenita;ilmicrofonoesternoviene
utilizzatoquandoèconnesso.Èpossibiledisabilitareilmicrofonointernocollegamentounplug
all'ingressodelmicrofono.
ConnettoreRS485/422
Duemorsettierea2pinperinterfacciaseriale
RS485/RS422.Laportaserialepuòesserecongurata
persupportare:
•RS485adueli,half-duplex
•RS485aquattroli,full-duplex
•RS422adueli,simplex
•Comunicazionefull-duplexpuntoapunto
conRS422aquattroli
FunzionePinNote
RS485Balt
RS485/422RX(B)
1
RS485Aalt
RS485/422RX(A)
2
CoppiaRXpertuttelemodalità(RX/TXcombinataperRS485
conduecavi)
RS485/RS422TX(B)
3
RS485/RS422TX(A)
4
CoppiaTXperRS422eRS485conquattrocavi
76

Axis q1615 MK II Specifications

General

Type	IP security camera
Languages support	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, KOR, POR, RUS
Number of languages	11
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Maximum resolution	1920 x 1080 pixels
Supported video modes	720p, 1080p
Image quality adjustment	Brightness, Colour depth, Contrast, Sharpness
Video compression formats	AVC, H.264, M-JPEG, MPEG4
Supported graphics resolutions	160 x 90, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Sensor type	CMOS
Optical sensor size	1/2.8 \
Focal length range	2.8 - 8.5 mm
White balance	AWC
Camera shutter speed	1/143000 - 2 s
Minimum illumination	0.02 lx
Bundled software	AXIS Camera Companion, AXIS Camera Station
Number of cameras	1
Sample rate	48 kHz
Audio system	2-way
Voice codecs	G.711, G.726
Audio formats supported	LC-AAC
Security algorithms	802.1x RADIUS, HTTPS, SSH
Alert notification type	E-mail
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Power source type	PoE
Power consumption (max)	7.1 W
Power consumption (typical)	4.4 W
Form factor	Box
Mounting type	Wall
Product color	Black, Silver
Housing material	Metal
Flash memory	256 MB
Internal memory	512 MB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	10 - 85 %
Lens mount interface	CS mount

Weight and Dimensions

Depth	136 mm
Width	82 mm
Height	56 mm
Weight	750 g
