Axis Q35 Series Installation Guide

AXISQ3517–LVNetworkCamera
Howtoinstalltheproduct
Installthehardware
Routethecables
•Ifyouwanttoroutethecablesalongthewall,seepage11.
•Ifyouwanttoroutethecablesthroughthewall,seepage12.
•Ifyouareattachingapipetothemountingbracket,seepage13
Routethecablesalongthewall
1.Usethedrilltemplatetodrillfourholesforthemountingbracket.
2.Attachthemountingbrackettothewallwithappropriatescrews.

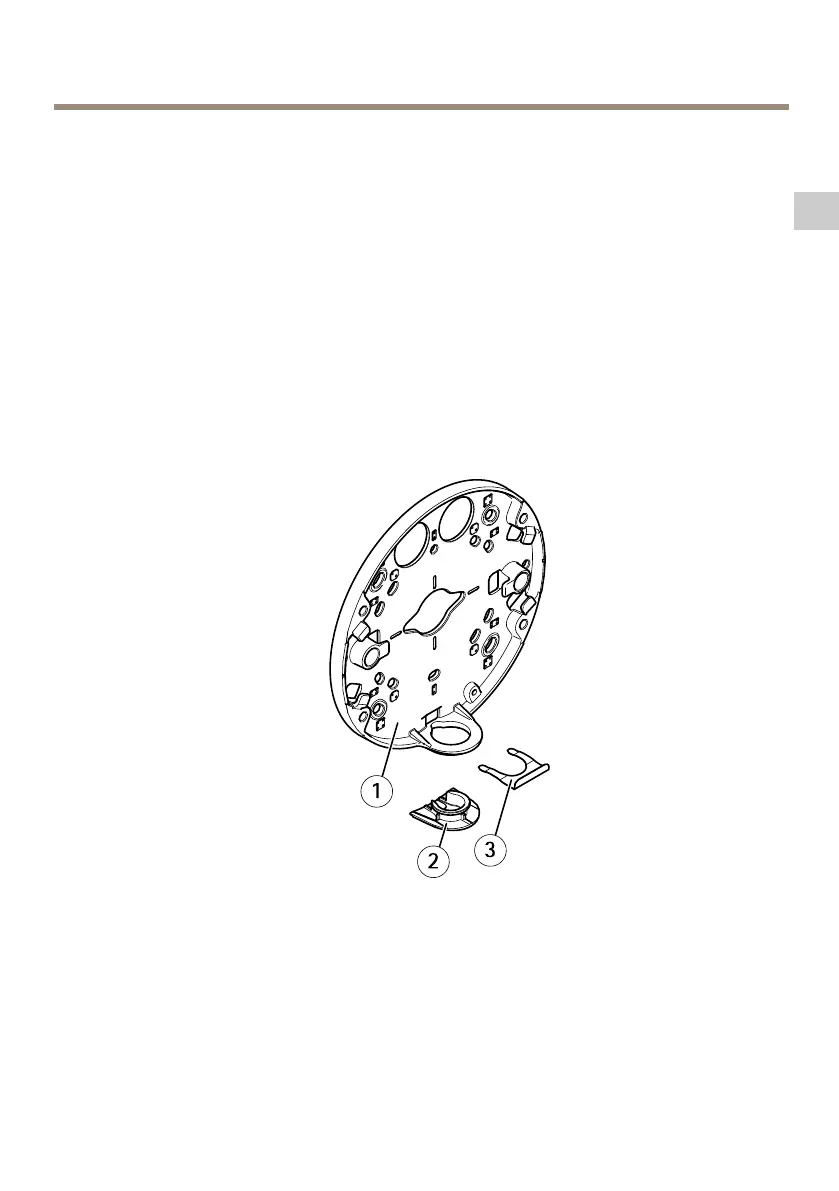

1
Mountingbracket
2
Sidelid
3
Lockingclip
3.Removethelockingclipandthesidelid.
4.Drillaholeinthesidelidforthecable.
11
EN
