Axis Q35 Series Installation Guide

AXISQ3517–LVNetworkCamera
6.Windthenetworkcablealongthegroovesonthemountingbrackettokeepextracable
lengththatmayberequiredlater.

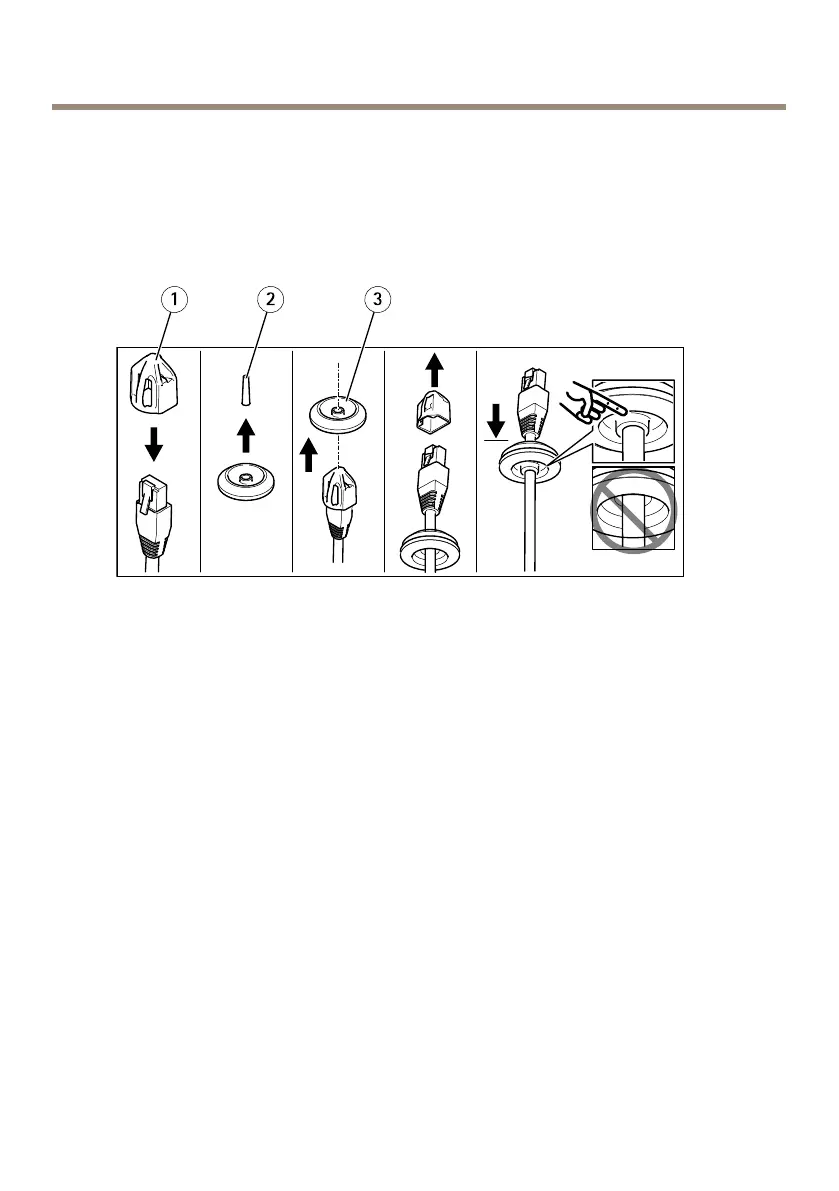

Connectthecablesandattachtheunitcasingtothemountingbracket
1.InsertanSDcardinthecameraunit(optional).
1
Connectorguard
2
Tab
3
Cablegasket
2.Attachtheprovidedconnectorguardtothenetworkcable.
3.Pullthetabfromthecablegasketfarthestfromthenetworkconnectorinthecamera
unit.
4.Pushthenetworkcablethroughthecablegasket.
5.Removetheconnectorguardfromthenetworkcable.
6.Routethenetworkcablethroughthecablegasket.
7.Pullthenetworkcablebackslightlysothatthecablegasketadjustsitselfonthecable.
