Page 10 AXIS Q6032/Q6034/Q6035 Installation Guide

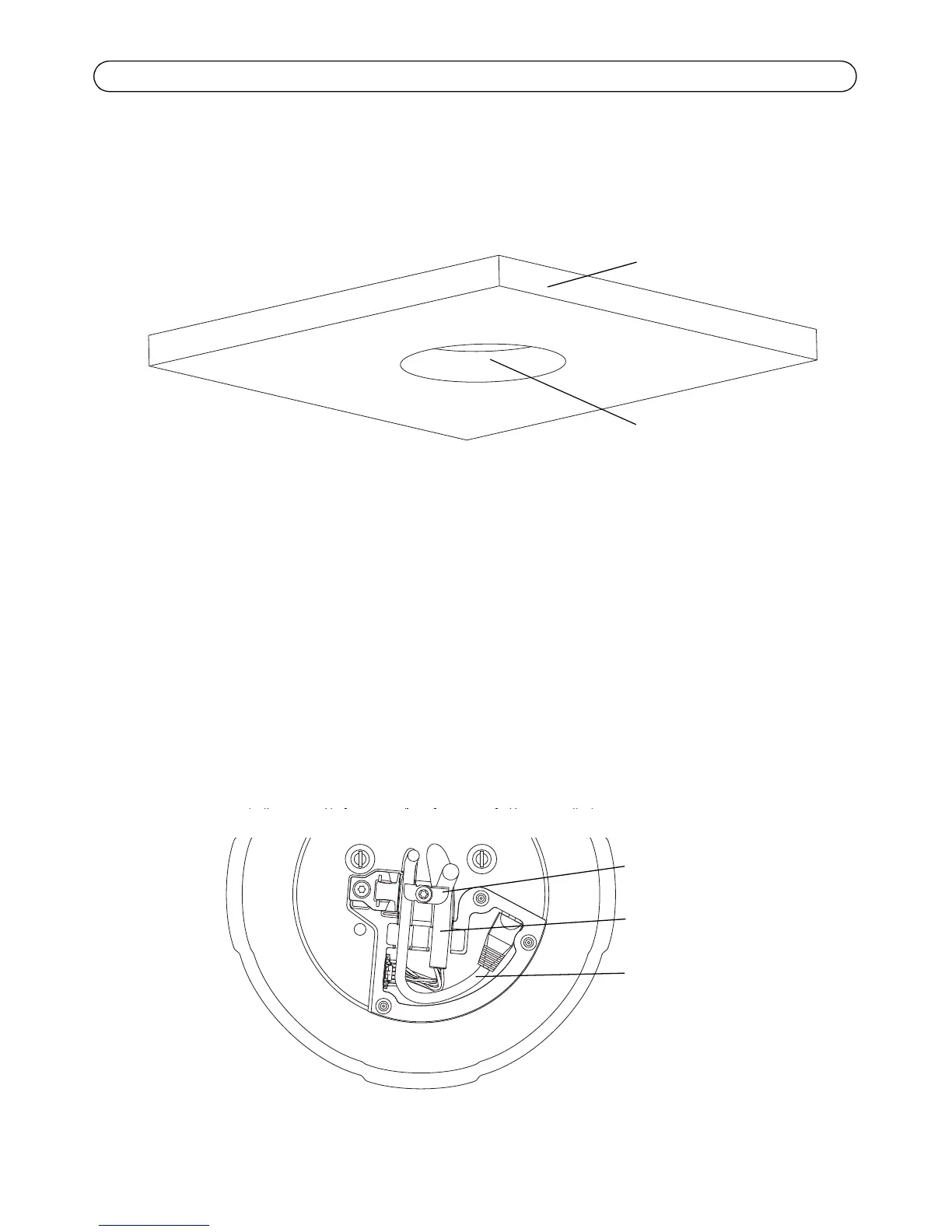

Drop ceiling mount
1. Remove the ceiling tile in which the drop ceiling mount is to be fitted.
2. Use the supplied template to mark the position for the 225 mm (8.9 in.) hole in the ceiling tile.
Cut around the template.
Notes:
• The combined weight of the camera and ceiling mount is approximately 3.2 kg (7.1 lb.). Check that
the ceiling material is strong enough to support this weight.
• The ceiling tile should be 5 mm–60 mm (0.2 in.–2.4 in.) thick.
3. Put the ceiling bracket into the ceiling tile, see illustration on page 11. Make sure the arrows on
the mounting plate and the ceiling bracket are pointing in the same direction for the logotypes
on the camera and the trim ring to align.
4. Tighten the bracket arm screws using a Torx 20 screwdriver head.
5. Loosen the 3 camera base lid screws and remove the camera base lid, see illustration on page 7.
6. Route and connect the network cable and the multi-connector cable, if applicable, to the
network camera. Be careful not to damage the cables when connecting them. Make sure the
foam gasket holes are aligned with the cable tracks and, if applicable, remove the cut-out piece
for the multi-connector cable from the foam gasket. Turn the cable holders to keep the cables
in place, see illustration below.
7. Put the camera base lid back in its original position and fasten the screws.
