8. Secure the camera using the supplied safety wire.
9. Slide the unit holders on the network camera into the slots on the mounting plate and rotate
the camera unit.
10. Install the High PoE Midspan 1-Port, see
Install AXIS T8123 High PoE Midspan 1-port, on page
13.
11. Check that the indicator LEDs on the midspan indicate the correct conditions. See the table on
page 24 for further details.
12. Install the ceiling tile, with the camera mounted, into the ceiling.
13. Place the trim ring over the ceiling bracket and tighten the screws.

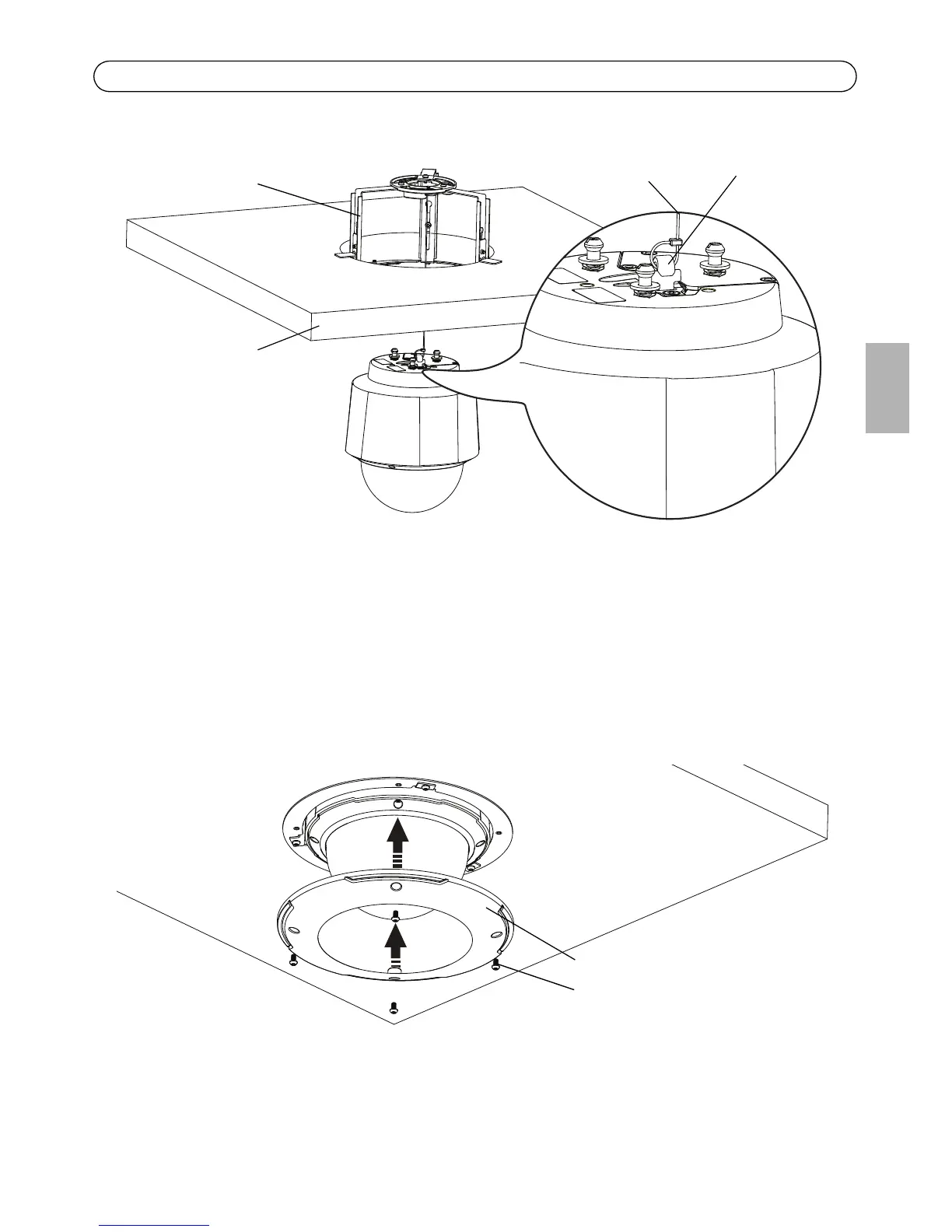

Safety wire
Ceiling tile
Ceiling bracket
Hook for
safety wire
Trim ring
Trim ring screws

Axis Q6035 Specifications

General

Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p, 720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Pan range	0 - 360 °
Tilt angle range	0 - 180 °
Camera shutter speed	1/30000 - 1/4 s
Minimum illumination	0.04 lx
Sensor type	CMOS
Optical sensor size	1/2.8 \
Digital zoom	12 x
Optical zoom	20 x
Focus adjustment	1.6 - 3.5
Focal length range	4.7 - 94 mm
Security algorithms	802.1x RADIUS
Video motion detection	Yes
Certification	EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC 15 B B, ICES-003 B, VCCI B, C AS/NZS CISPR 22, IEC 60529 IP52, IEC 60721-4-3 Class 3K3, 3M3 GS, UL, cUL, CE, FCC, VCCI, CB, KCC, UL-AR
Processor model	ARTPEC-3
Placement supported	Indoor
Connectivity technology	Wired
Built-in HDD	No
Flash memory	128 MB
Internal memory	256 MB
Compatible memory cards	SD, SDHC
Form factor	Dome
Product color	White
Housing material	Metal
International Protection (IP) code	IP52
Headphone outputs	1
Audio formats supported	AAC, MS-ADPCM, PCM
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/v6, HTTP, HTTPS*, QoS 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Compliance industry standards	802.3at
AC input voltage	100-240 V
Power source type	PoE
AC input frequency	50 Hz
Power consumption (typical)	30 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Width	198 mm
Height	240 mm
Weight	2600 g
