AXISQ6045-CMkIIPTZDomeNetworkCamera

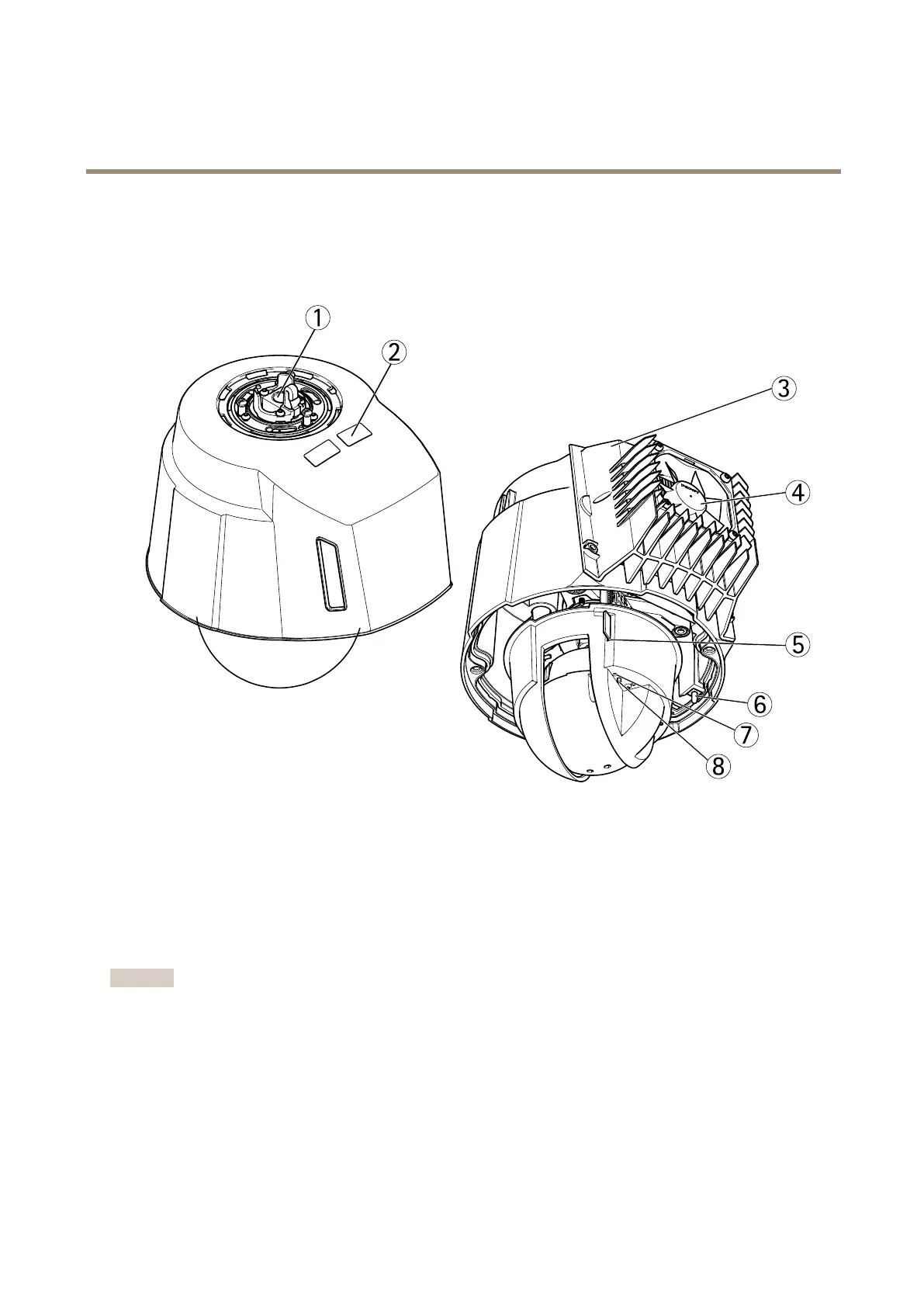

HardwareOverview
HardwareOverview
Camera
1
2
3
4
5
6
7
8
1
Networkconnector(HighPoE)
2
Partnumber(P/N)&Serialnumber(S/N)
3
Coolingsystem
4
Fan
5
SDcardslot
6
Powerbutton
7
StatusLEDindicator
8
Controlbutton
Important
Dustandparticlebuildupcouldaffecttheperformanceofthecoolingsystem.Tomaintaintheperformancelevel,theouter
heatsinkinthecamera’scoolingsystemmayneedoccasionalorregularcleaning.Seetheproduct’sInstallationGuidefor
informationonhowtoaccessandcleantheouterheatsink.
ConnectorsandButtons
Fortechnicalspecications,seepage65.
