Axis Q7424-R Datasheet

Technical specications – AXIS Q7424-R Video Encoder
www.axis.com
©2012 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modications without notice.
46817/EN/R3/1211
Video encoder
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profile
Motion JPEG
Resolutions 176x120 to 720x576
176x120 to 1536x1152 for quad view
Frame rate H.264 30/25 (NTSC/PAL) fps
15 fps in quad view in full resolution
Frame rate
Motion JPEG
30/25 (NTSC/PAL) fps
15 fps in quad view in full resolution
Video streaming Multi-stream H.264 and Motion JPEG: One H.264 and one
JPEG stream on each channel (8 streams in total) in full
frame rate. Individually configured streams in max. resolution
at 30/25 fps; more streams if identical or limited in frame
rate/resolution.
Controllable frame rate and bandwidth
VBR/CBR H.264
Image settings Compression, color, brightness, contrast
Rotation: 90°, 180°, 270°
Aspect ratio correction, mirroring of images, text and image
overlay, privacy mask, enhanced deinterlace filter, video
termination, anti-aliasing, temporal noise filtering
Audio
Audio streaming Two-way
Audio
compression
AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
Audio in/out One external microphone or line input and one line output
Network
Security Password protection, IP address filtering, HTTPS* encryption,
IEEE 802.1X network access control, digest authentication,
user access log
Supported
protocols
IPv4/v6, HTTP, HTTPS*, QoS layer 3 DiffServ, FTP, SMTP,
Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP,
RT SP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, A RP, SOCK S
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® from
Axis Communications available at www.axis.com.
AXIS Camera Application Platform from
Axis Communications; specifications available at
www.axis.com
ONVIF specification available at www.onvif.org
Support for AXIS Video Hosting System (AVHS) with
One-Click Camera connection
Intelligent video Video motion detection, active tampering alarm, audio
detection
AXIS Camera Application Platform (on one channel)
Alarm triggers Intelligent video, external inputs, video loss
Alarm actions File upload via FTP, HTTP and email, notification via email,
HTTP and TCP, PTZ preset, external output activation, video
and audio recording to edge storage
Pre- and post-alarm video buffering
Pan/Tilt/Zoom Wide range of analog PTZ cameras supported (drivers
available for download at www.axis.com)
100 presets/camera, guard tour, PTZ control queue
Supports Windows compatible joysticks
General
Casing Standalone, aluminum casing
Processor and
memory
ARTPEC-4, 512 MB RAM, 128 MB Flash
Power 8-28 V DC, max 10 W, 20-24 V AC, max 15.6 VA;
Power over Ethernet IEEE 802.3af Class 3
Connectors 4 x analog composite video BNC inputs
Terminal block for mono microphone or line input, 6Vpp max
Terminal block for mono audio output, 2Vpp max at 1kohm
10BASE-T/100BASE-TX PoE
Terminal block for four configurable external inputs/outputs,
Terminal block for RS-485/422 (full duplex)
AC/DC input terminal block
1 Gbps SFP slot
Edge storage SD/SDHC/SDXC slot supporting memory card up to 64 GB
(card not included); support for recording to network share
(network-attached storage or file server)
Operating
conditions
-40°C to 75°C (-40 °F to 167°F)
Humidity 10 – 95% RH (non-condensing)
Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B,
ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22,
KCC Class B, EN 50121-4, EN 50155 (Vibration and Shock
Category 1 Class B, Temperature Class TX), NEMA TS 2
(vibration, shock, temperature, humidity), IEC 60068-2-1, IEC
60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-
30, IEC 60068-2-64, IEC 60068-2-78, CEN/TS 45545-2, UL/
IEC/EN 60950-1
Dimensions 45x135x167 mm
Weight 0.8kg (1.7 lb)
Included
accessories
Installation Guide, CD with installation and management tools,
software and User’s Manual, Windows decoder user license
Optional accessories
AXIS T8310 Video Surveillance
Control Board
For information on AXIS Camera Station and
video management software from
Axis’ Application Development Partners, see
www.axis.com/products/video/software/

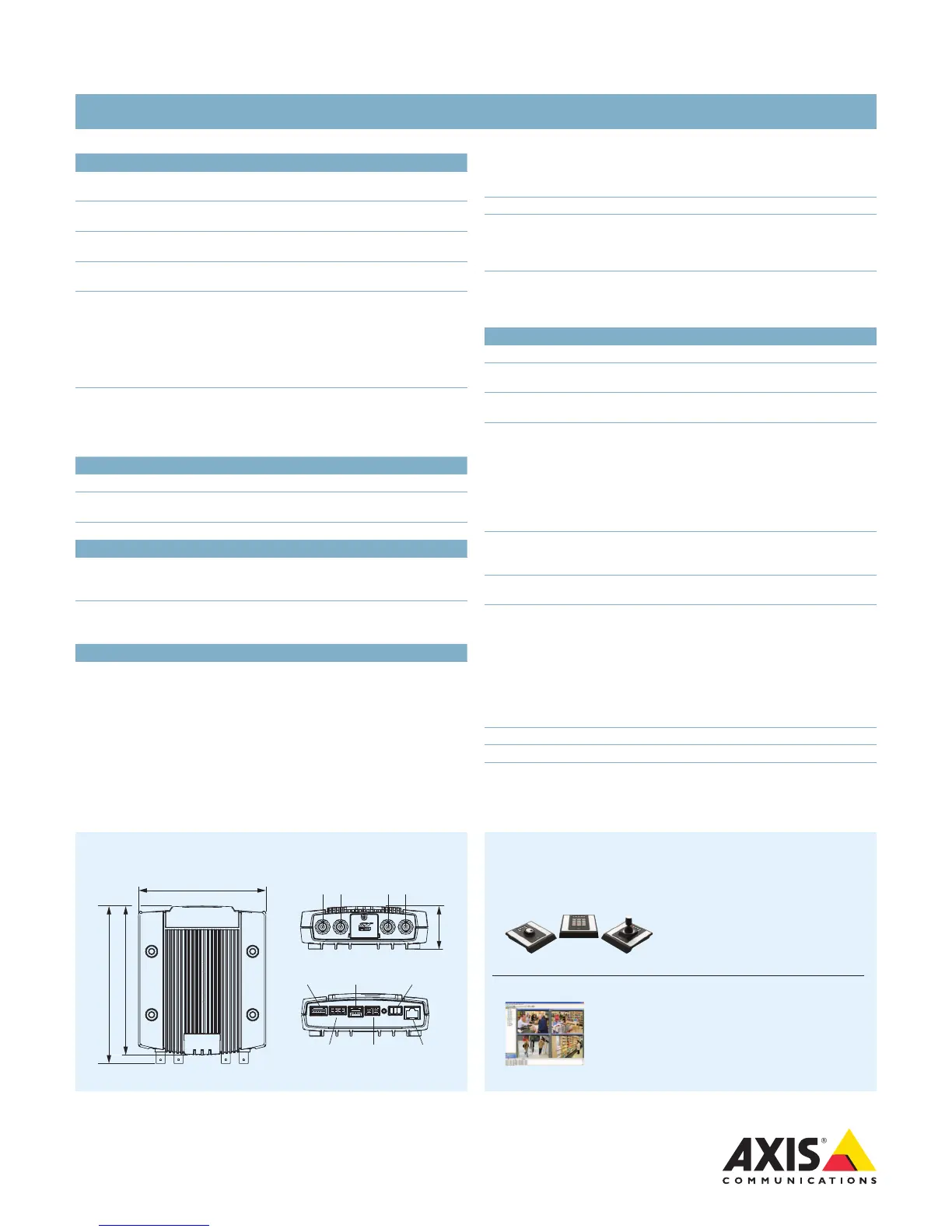

Dimensions
135mm (5,3”)
Video inputs
Audio
connector
Video inputs
157mm (6,2”)
45mm (1,8”)
Power
connector
RS-485/
RS-422
connector
I/O
connector
SFP
connector
Network
connector
(PoE)
167mm (6,6”)
More information is available at www.axis.com
* This product includes software developed by the OpenSSL
Project for use in the OpenSSL Toolkit. (www.openssl.org)
