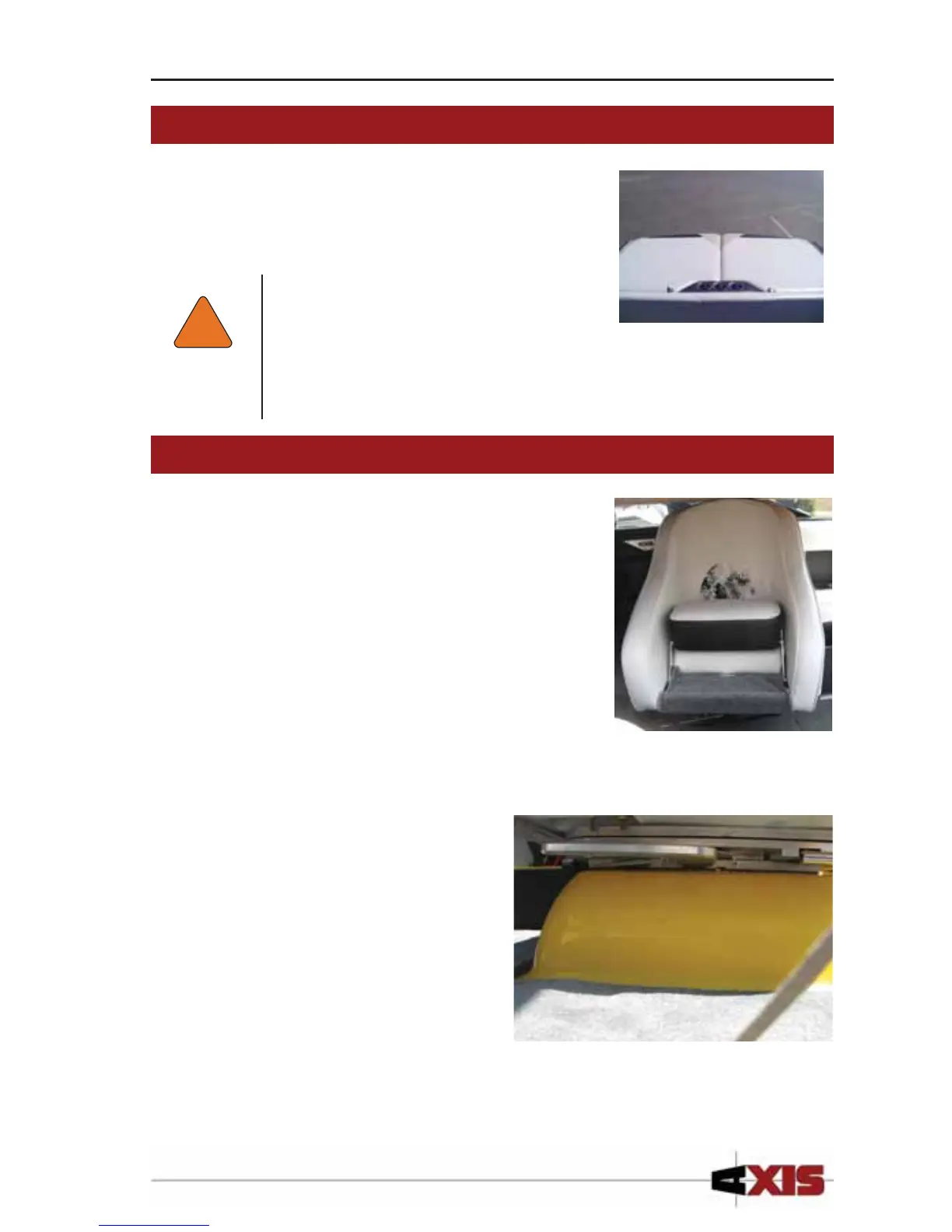

V-Drive Engine Access Hatch
An engine access hatch is located behind the rear
observers’ seat on the V-Drive. Access allows the ability
to service engine for required maintenance and for
additional storage on both sides of the engine.
Ensure the access hatch is securely
closed before operating the boat.
Failure to do so could allow the
access hatch to open while
underway and could cause injury
to the occupants and damage to
the boat.
Driver’s Seat
The driver’s seat can be adjusted forward and backward
by pulling the lever located on front left side of the
driver’s seat. Pull lever outward and adjust seat as
needed.
Swivel Seat Base
All models are equipped with a swivel seat adjustment.
To adjust the seat, pull up on the lever located on the port
side of the seat. The seat should swivel freely. To reset
the seat position, rotate the seat back to its original
bow-facing position.
2-15
Gauges & Controls
Figure 2-12. Bolster Seat
Figure 2-11. Engine
Access Hatch
Figure 2-13. Seat Adjuster
