Axminster SBW3501B - Fence Assembly

Parts Breakdown/List
33

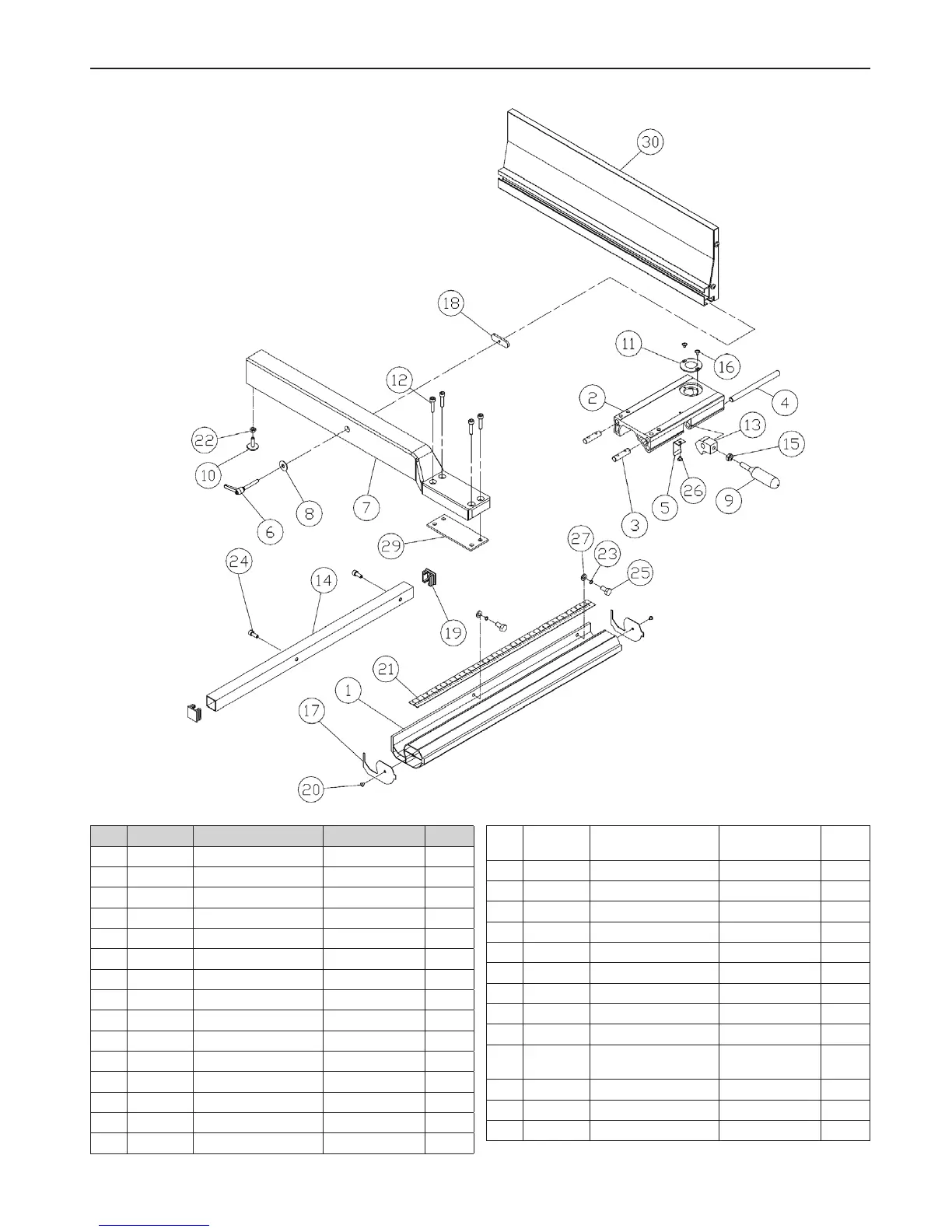

Fence Assembly
No Part No Description Size Qty
01 198018 FIXED BASE 640 1
02 198002 ADJUST BASE 1
03 198003 FIXED SHAFT 2
04 198005 SHAFT 1
05 198006 SPRING WASHER 1
06 198074 LOCK KNOB M8x44 1
07 198077 SUPPORT TUBE 590 1
08 WE082320 FLAT WASHER M8xɸ23 1
09 198013 HANDLE 1
10 198012 ADJUST SCREW 1
11 198007 CONVEX 1
12 SR060500 HEX SOCKET BOLT M6x25 4
13 198004 FIXED LUMP 1
14 198020 SQUARE TUBE 640 1
15 NH081300 NUT M8 1
16 SE049100 PAN HEAD BOLR W/
FLANGE
M4x6 2
17 198014 GUARD PIECE 2
18 200527 MOVING PLATE 1
19 198016 PLUGGED 2
20 ST039300 TAPPING SCREW M3.5xl2 2
21 LM000539 SCALE 1
22 NH061000 NUT M6 1
23 WS060000 SPRING WASHER M6 2
24 SR069400 HEX SOCKET BOLT M6xl6 2
25 SH060400 HEX HEAD BEILT M6x20 2
26 SF049200 PAN HEAD BEER W/
FLANGE
M4x8 1
27 WE061310 FLAT WASHER M6xl3 2
29 198008 BRACKET T=3 1
30 AC198082 FENCE 590 1
