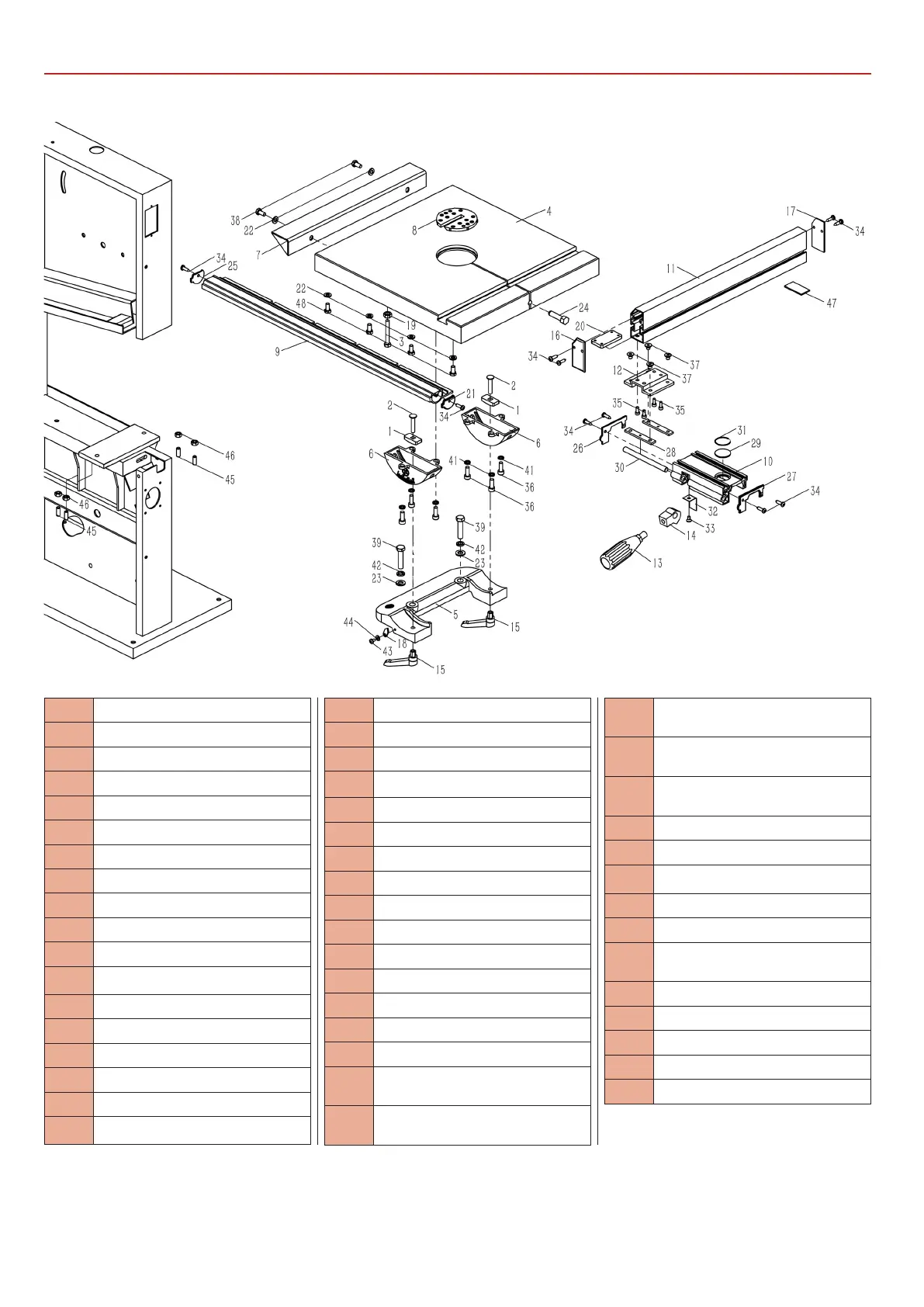

AW1950B 10inch (Diagram & Parts List B)
(3425-B)
No. Description
1 Guide piece
2 Square neck bolt M6X25
3 Hex.bolt M8X45
4 Worktable
5 Mounting base,worktable
6 Rotating base,worktable
7 Extension table
8 Table insert
9 Front rail
10 Fence carrier
11 Rip fence
12 Fence plate
13 Lock handle,fence
14 Eccentric shaft
15 Ratchet lever
16 Front cap,fence
17 End cap,fence
18 Pointer
19 Hex.nut
20 Screw guide
21 Left cap,front rail
22 Washer 6
23 Washer 8
24 Table pin
25 Right cap,front rail
26 Left cap,fence carrier
27 Right cap,fence carrier
28 Screw guide
29 Pointer
30 Locking shaft,fence carrier
31 Circle ring
32 Lock plate
33 Cross recessed countersunk
screw M4X8
34 Cross recessed pan head
tapping screw ST4X16
35 Hex.socket cap head screw
M4X10
36 Hex.socket cap head screw
M6X16
37 Hex.socket pan head screw
M6X10
38 Hex.bolt M6X12
39 Hex.bolt M8X35
40 Hex.bolt M8X25
41 Spring washer 6
42 Spring washer 8
43 Cross recessed countersunk
screw M4X6
44 Washer 4
45 Hex.socket set screw M6X20
46 Hex.nut M6
47 Gasket board,rip fence
48 Hex.bolt M6X16
