Axminster WorkShop AW1950B - Stand Components Diagrams

EXPLODED DIAGRAMSLISTS
43

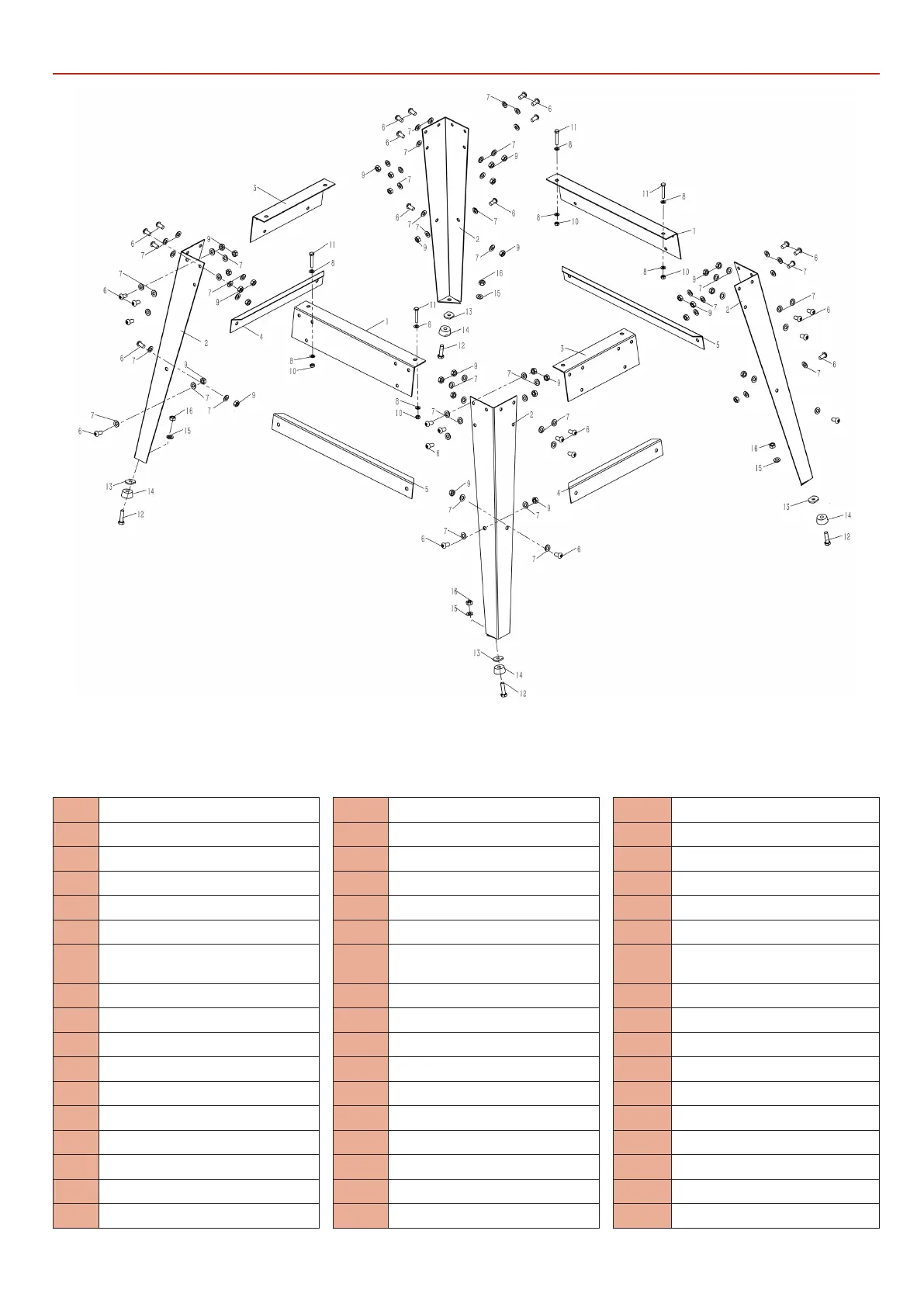

Stand (Diagram C)
AC1950B 10inch
AC2606B 14inch
(343B-C) (3425-C)
AC2305B 12inch
(343C-C)
No. Description
1 Upper long bracket
2 Stand leg
3 Upper short bracket
4 Lower short bracket
5 Lower long bracket
6 Hex.socket pan head screw
M6X16
7 Washer 8
8 Washer 6
9 Hex.nut M8
10 Hex.nut M6
11 Hex.bolt M6X35
12 Hex.bolt M8X30
13 Gasket nut
14 Rubber mat
15 Washer 8
16 Hex.nut M8
No. Description
1 Upper long bracket
2 Stand leg
3 Upper short bracket
4 Lower short bracket
5 Lower long bracket
6 Hex.socket pan head screw
M8X16
7 Washer 8
8 Hex.nut M8
9 Hex.nut M8
10 Washer 8
11 Hex.bolt M8X40
12 Hex.bolt M8X30
13 Gasket nut
14 Rubber mat
15 Washer 8
16 Hex.nut M8
No. Description
1 Upper long bracket
2 Stand leg
3 Upper short bracket
4 Lower short bracket
5 Lower long bracket
6 Hex.socket pan head screw
M8X16
7 Washer 8
8 Hex.nut M8
9 Hex.nut M8
10 Washer 8
11 Hex.bolt M8X40
12 Hex.bolt M8X30
13 Gasket nut
14 Rubber mat
15 Washer 8
16 Hex.nut M8
