Axpert Max 7200 - Page 17

维修手册
专案名称：
Axpert Max 7200-48
专案编号：
P1911061
修订版次：
00
PAGE
V-RDP-004-73 A

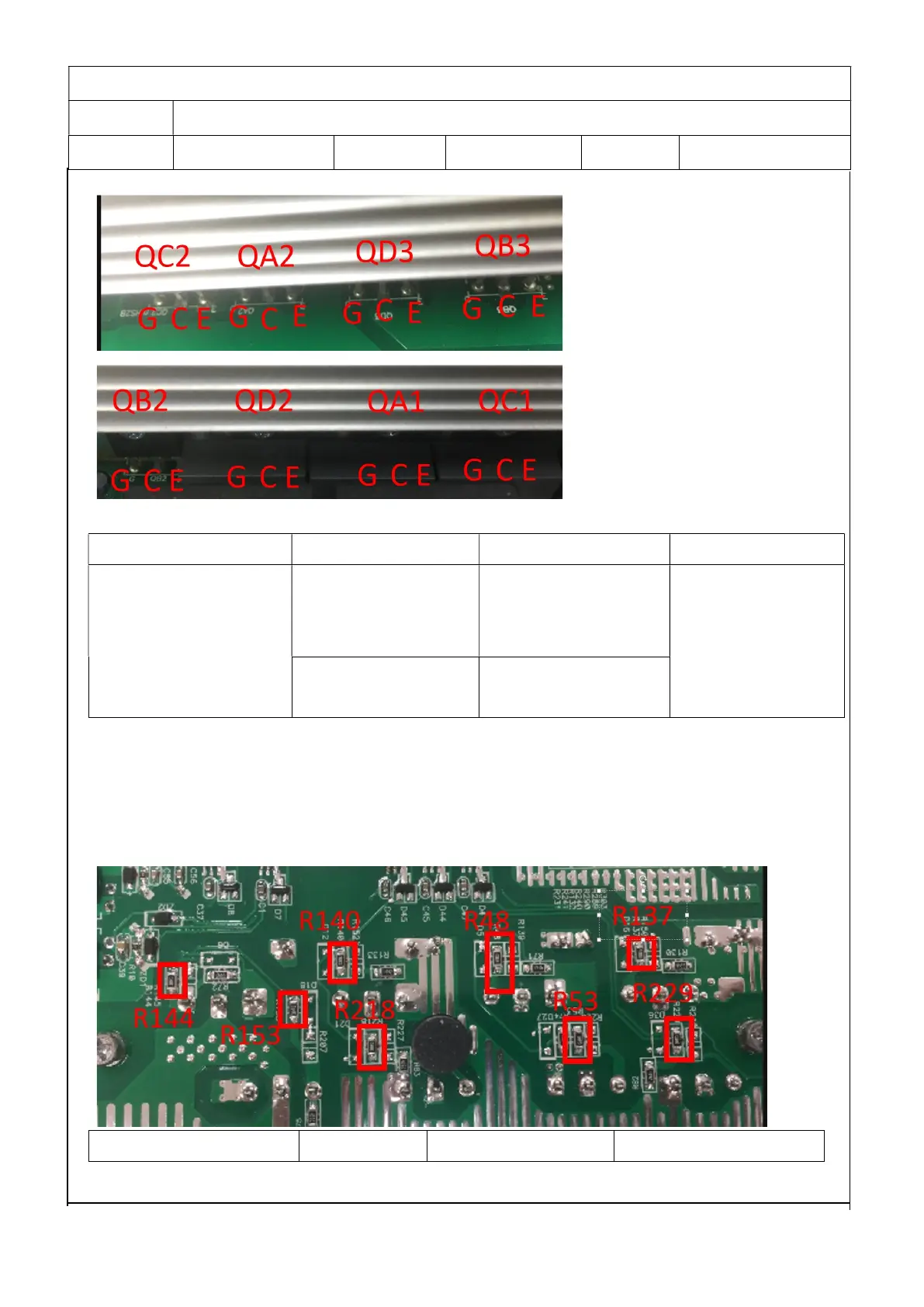

All of the IGBT are (STGW60H65DFB 60A 650V N BULK TO-247)
Parts Attribute Reference values Failure status
QA1/QA2/QC1/QC2/
QB2/QB3/QD2/QD3
Resistor GE: 17.59k
GC: 208.1k
EC: 183.7k
Short or explosion
Diode EC: 0.378V
CE: OL
Note1: If one or more of them were damaged, please replace all of them.
Drivers
R48/R53/R144/R153/R140/R218/R137/R229: (30R 1206)
Parts Attribute Reference values Failure status
