Axpert Max 7200 - Total Wiring Diagram

维修手册
专案名称：
Axpert Max 7200-48
专案编号：
P1911061
修订版次：
00
PAGE
V-RDP-004-73 A

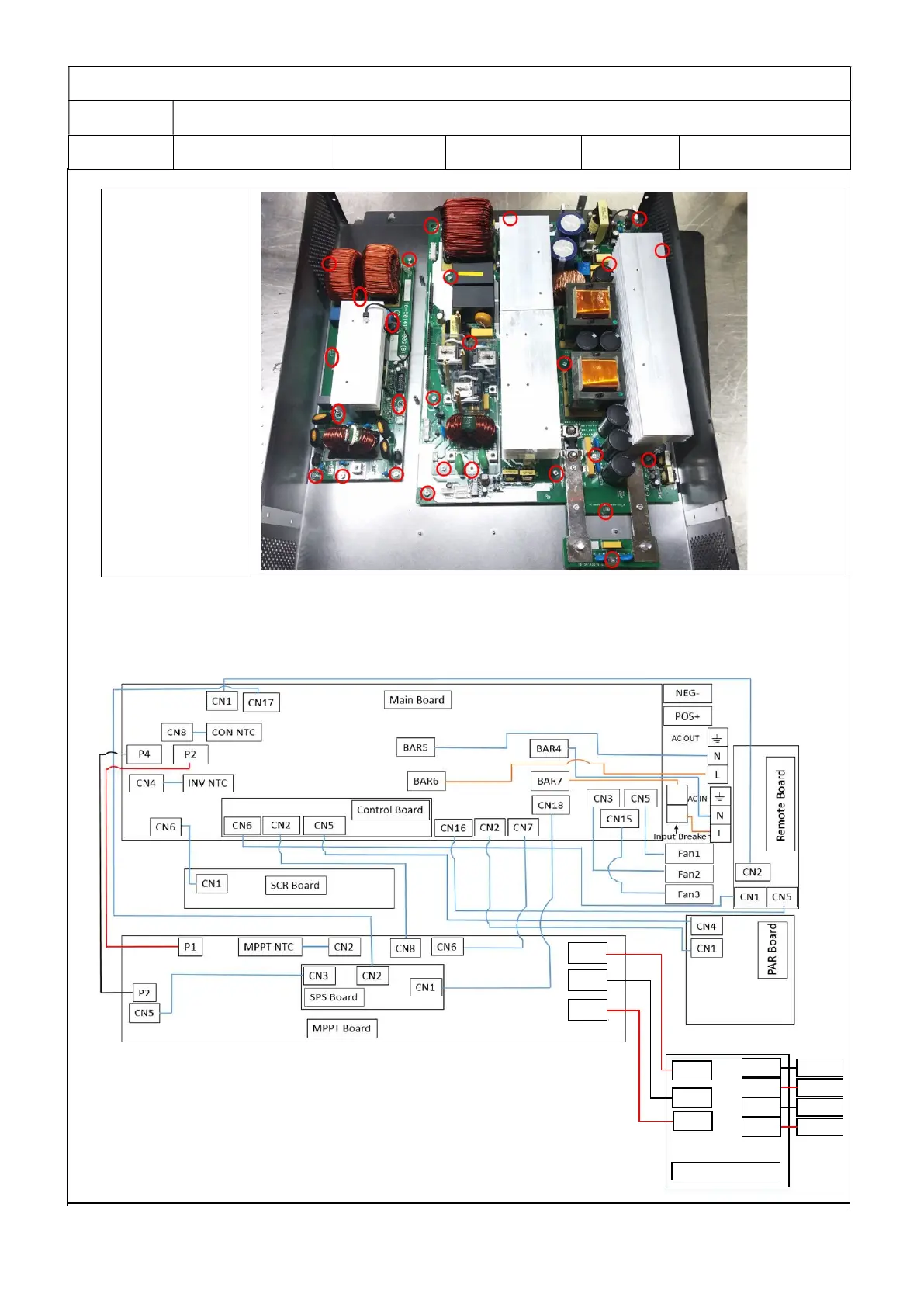

MPPT board.
Remove 5
copper pillars
on MPPT
board.
Take out the
main board and
MPPT board.
Total wiring diagram:
Note: Wrong connection of wires may cause inverter damage!
Please connect wires with care!
MPPT EMI Board
PV1-
PV1+
PV2-
PV2+
BAR5
BAR7
BAR6
P2
P1
P15
P13
P3
P4
P11
