Axpert Max 7200 - Page 21

维修手册
专案名称：
Axpert Max 7200-48
专案编号：
P1911061
修订版次：
00
PAGE
V-RDP-004-73 A

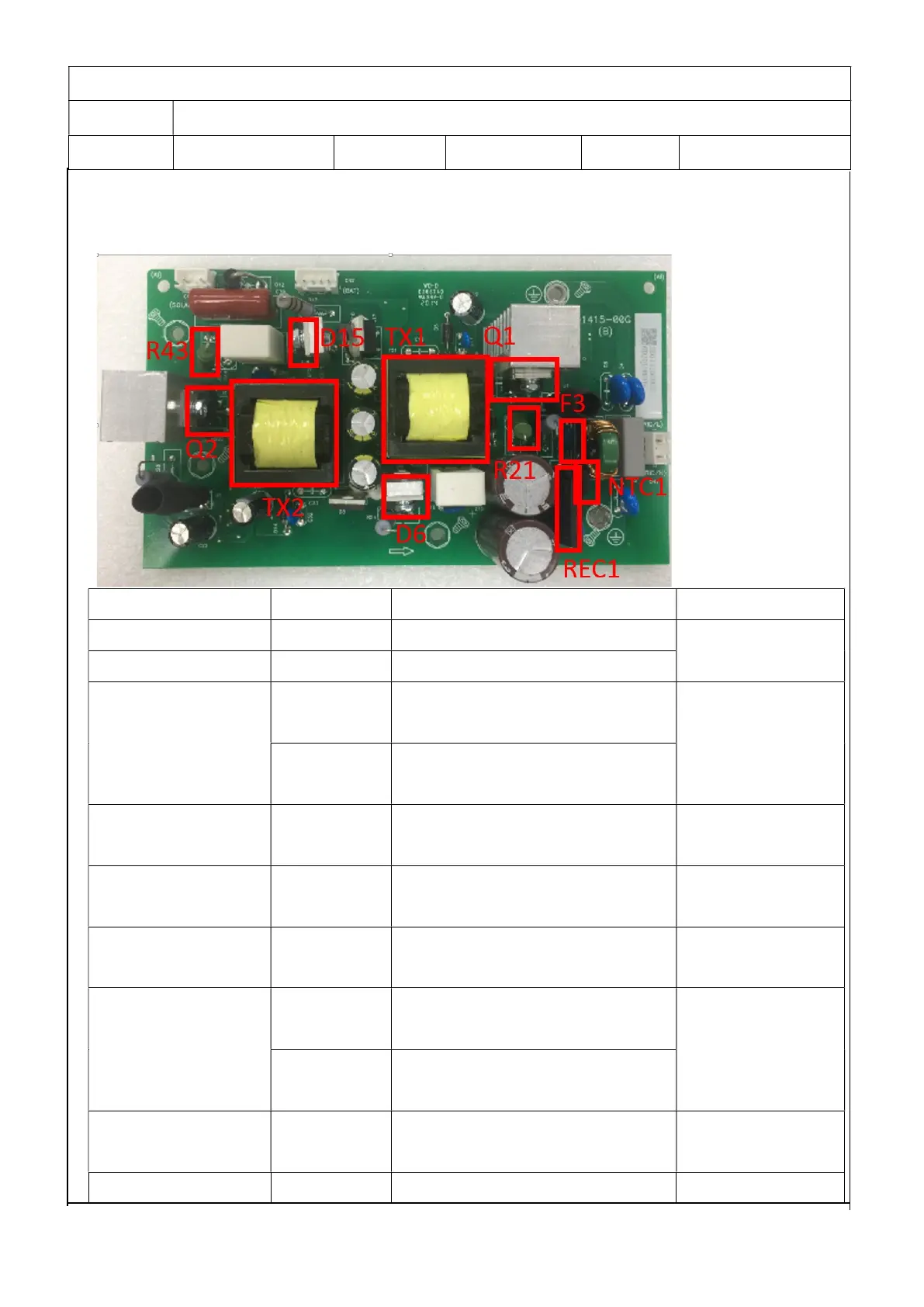

The R43 is (RES 不燃性树脂型绕线 3W 0.47 J N-IND BULK)
The D15 is (RHRP860 8A 600V)
Parts Attribute Reference values Failure status
F1 Resistor 0.2 ohm Open or explosion
NTC1 Resistor 9.9 ohm
Q1 Resistor SD: 212.2K
SG: 15.55k
Short or explosion
Diode SD: 0.42V
SG: 0.31V
TX1 Resistor PIN1 TO PIN3: 0.4 ohm Short or other
values
R21 Resistor 0.47ohm Open or other
values
D6 Diode + to -: 0.428V
- to +: OL
Short or explosion
Q2 Resistor SD: 229.9K
SG: 15.61k
Short or explosion
Diode SD: 0.417V
SG: 0.301V
TX2 Resistor PIN1 TO PIN3: 0.3ohm Short or other
values
R43
Resistor
0.47ohm Open or other
