Technical specifications
- compact RGB wash light
- 54x SMD 5050 RGB LEDs installed
- IR remote-controlled!
- DMX with several DMX channel modes
- several stand-alone programs, colour settings and shows
- dual mounting bracket for hanging and standing purposes
- rubber feet for uplighting purposes
- wide projection angle of 105 degrees!
- ideal for mood lighting or short-distance illumination of objects
- perfect colour mixing
- LED display with menu buttons and display flip option
- test, hour and firmware version readouts for maintenance purposes
Operating modes
- DMX control via 2, 3 (RGB), 3 (colour, strobe, dimmer) or 6 channels
- stand-alone: colour preset, custom colour, colour jump, colour fade, sound-controlled operation
- adjustable sound sensitivity
- master/slave operating mode
Technical info:
- connection voltage: 100-240V AC, 50/60 Hz
- fuse: F3AL250V
- power consumption: 11.5 W max.
- power factor: 0.566
- max. power output load: 9 A
- ta: 0-40º Celsius
- exterior surface temperature during normal use: 34.5º Celsius
Light output:
- Red: 21 lux @ 1m
- Green: 56 lux @ 1m
- Blue: 60 lux @ 1m
- Full on: 137 lux @ 1m
Included accessories:
- IEC C13 to Schuko cable (1.5 m, 3x 1 mm²)
- IEC C13 to UK cable (1.5 m, 3x 1 mm²)
- IR remote with CR2025 battery

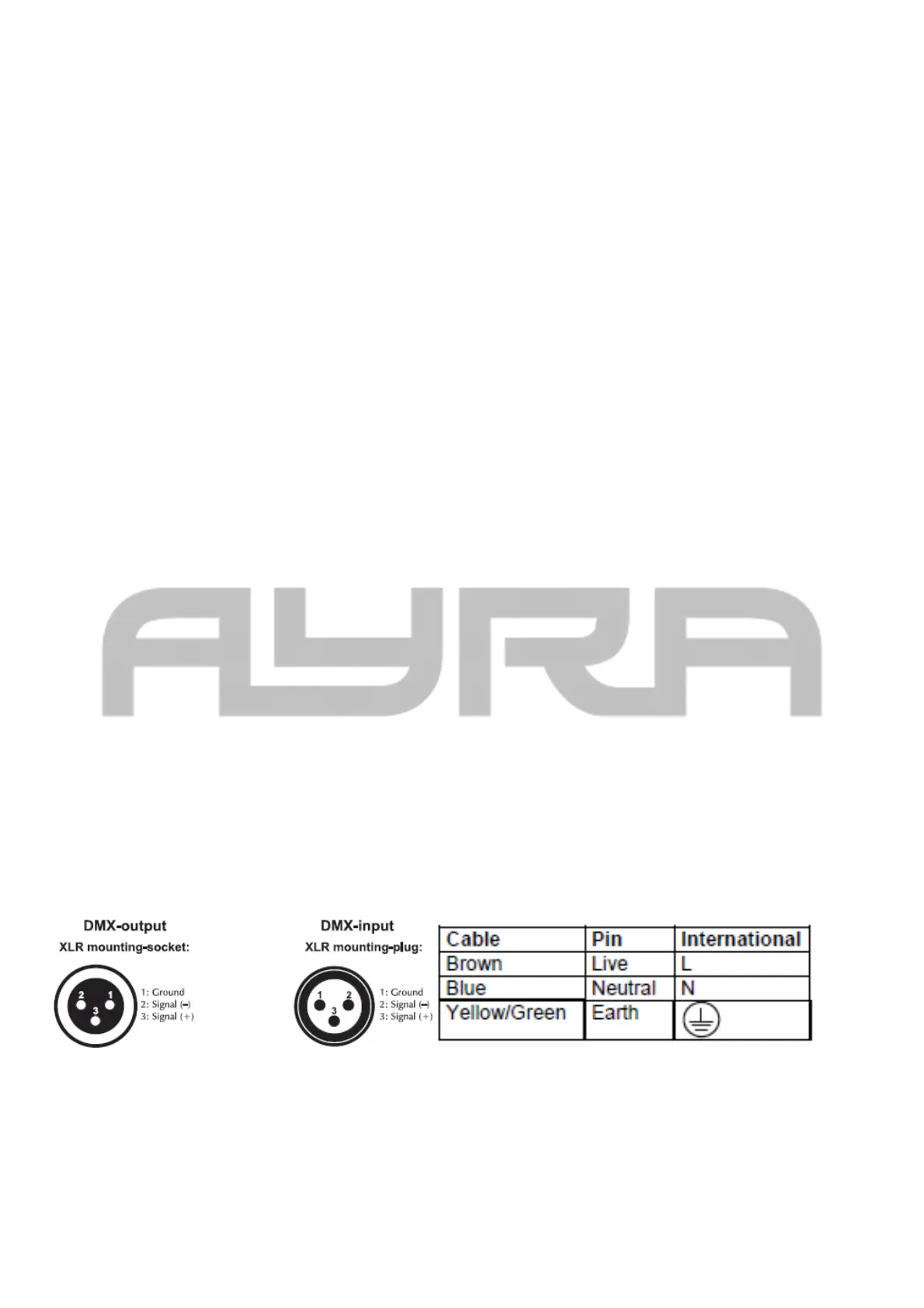

Connectors and wiring schematics:
DMX connectors: Electrical wiring:
All information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0 Creation date + author initials: 04-11-2015 RV Revision date + author initials:
