5. Installation and Handling
5-1. Installations
After checking following points for the installation of
Micron-Lub lubrication unit, mount the unit firmly
with 2 mounting holes so that oil tank may become
perpendicular.
* Easy maintenance.
* Easy checking for operation condition.
* Piping length for Manifold (outlet side) becomes
short
* No liquids splash, such as coolant liquid.
* Place stabilized in temperature
* Place of little vibration

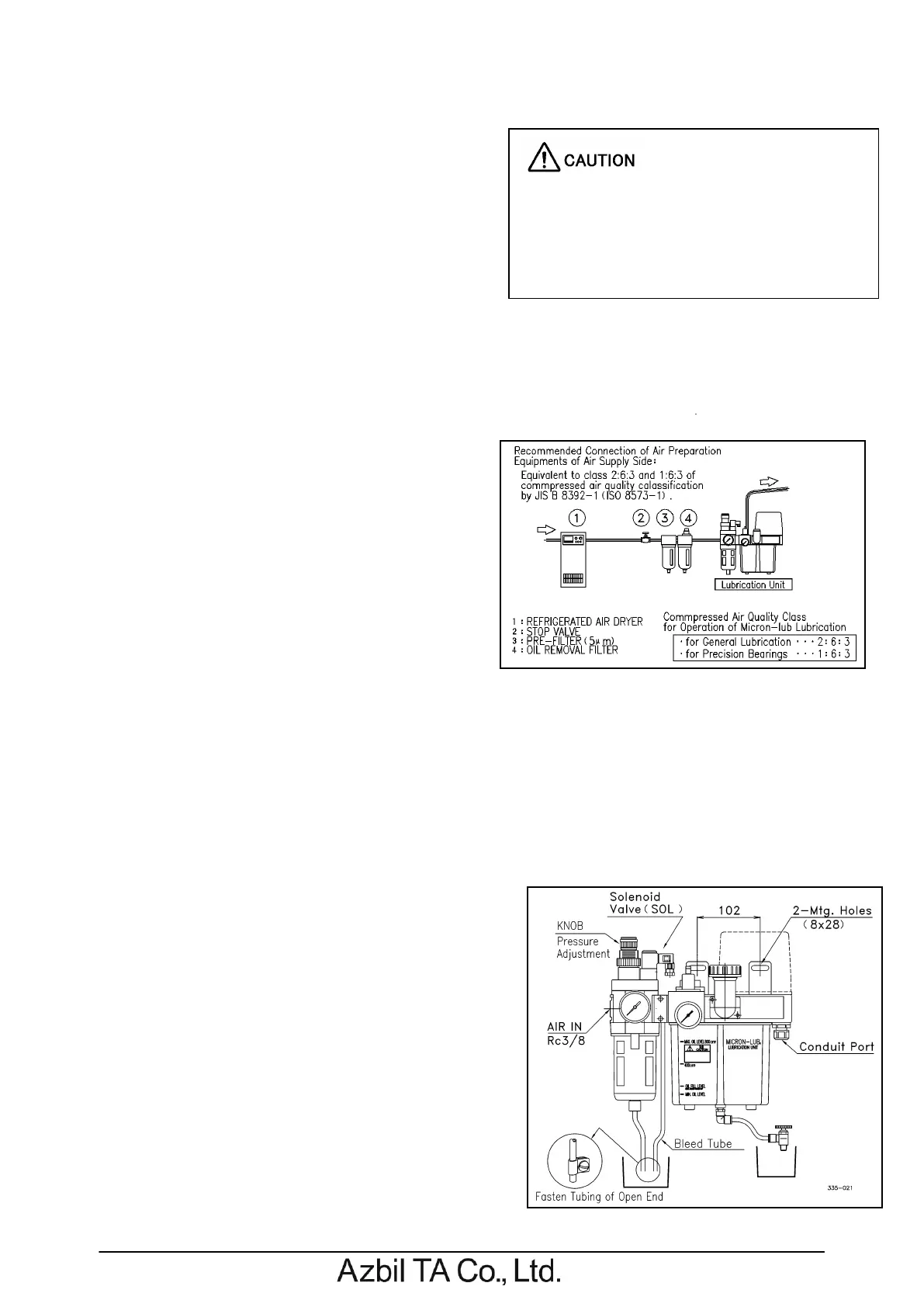

5-2. Connection of Air Preparation Equipments for Supply Air
・ Pressure air supplied to the air supply port is
required to be clean and dry.
・ Supply air should have air quality class of 2:6:3
or 1:6:3 of JIS B 8392-1 (ISO 8573-1);
compressed air quality classification.
・ Adjust supply air pressure with a regulator, or a
filter-regulator.
・ Install a stop valve and a pre-filter in upstream
side. It is useful to maintenance of equipment,
and to extension of service life of the fine
element for the oil removal filter.
・ Install a stop valve and a pre-filter in upstream side even though the model with filter-regulator
with solenoid valve is used.
5-3. Drain Line
・Connect 6mm / OD flexible tubing to the fitting of bleeding on lift side of lubrication unit and lead
to drain pit.
・When the automatic drain type filter is being used for air supply side, connect a flexible tubing to
the drain port at bottom of the filter unit. Use tubing having an open end and within 1.8m of the
length. In addition, fix end of tubing firmly to avoid whip action.
5-4. Oil Drain Valve
・ Attach oil drain valves (stop valve, ball valve etc.) to
the oil drain port (Rc1/8) at the bottom of oil tank
through a plastic tubing.
・ Pipe plug is attached in the drain port at the time of
shipment. Remove the plug before connection of oil
drain tubing.
・ At installing a tube fitting into oil drain port of the
tank, do not screw in strongly.
・ A push-in type fitting is recommended, in order to
release the stress to oil tank.
・ Do not use together with organic solvents, such
as alcohol, thinner, and trichlene, or in the
atmosphere of these solvents exist.
・ Provide guard to protect the lubrication units
from shock. Do not throw or drop the
lubrication units.
・ Do not tread on the lubrication units.
To Next Page
