Chapter 3. MOUNTING AND WIRING

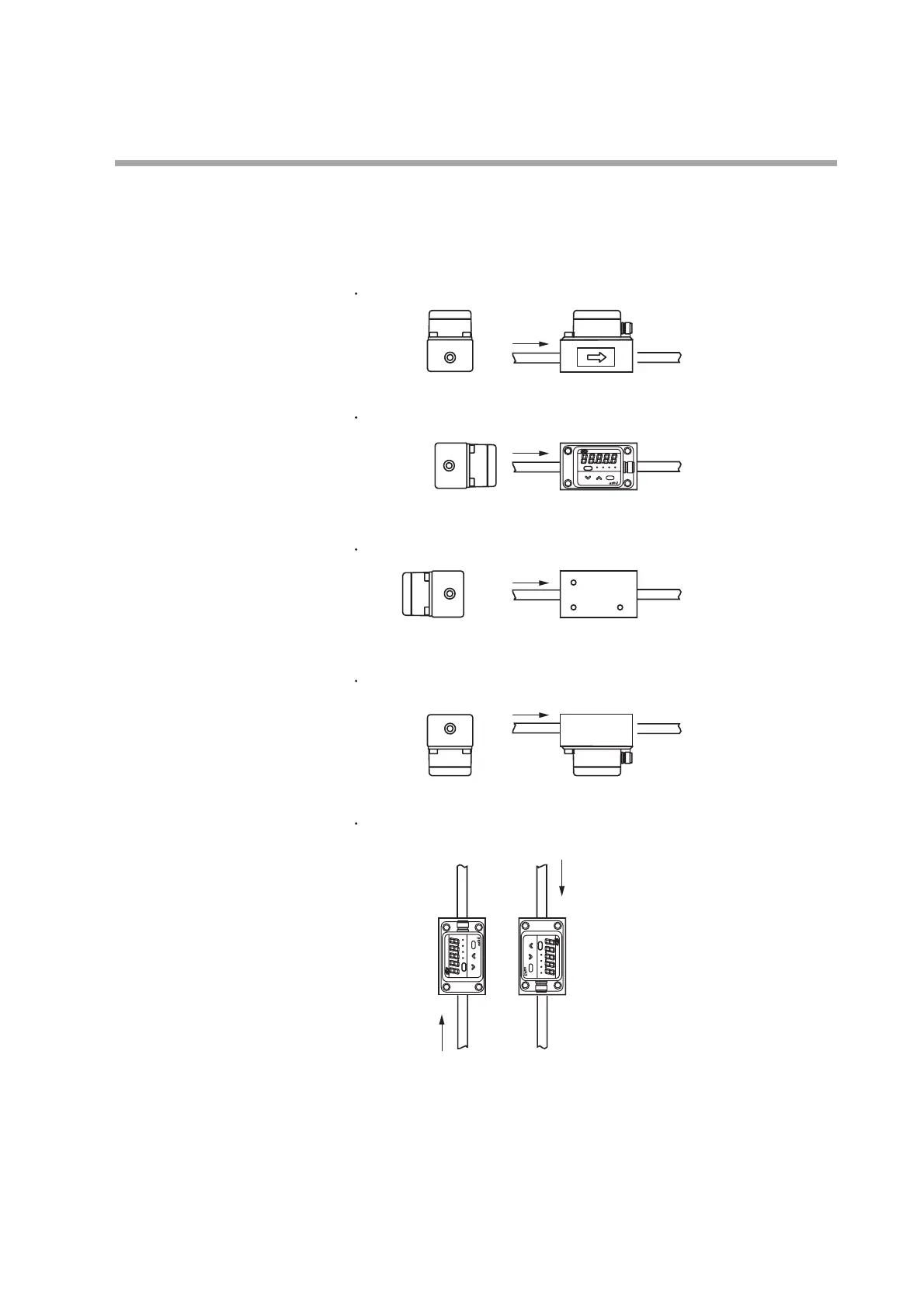

● Mounting direction
Normally the MCF is mounted on a horizontal pipe with the display unit facing
upward. Though the mounting position is unrestricted, measurement error might be
caused by the display direction.
Vertical pipe (Position 5)
Normal position on horizontal pipe with display facing upward (Position 1)
Horizontal pipe with display rotated to the right as seen from air inlet (Position 2)
Horizontal pipe with display rotated to the left as seen from air inlet (Position 3)
Flow direction
Flow direction
Side view
Flow direction
Flow direction
Flow direction
Side view
View from the air inlet
Side view
View from the air inlet
mode
enter
ALEVLL/min
MCF
mode
enter
ALEVLL/min
MCF
mode
enter
ALEVLL/min
MCF
Horizontal pipe with display facing downward (Position 4)
Side view
Flow direction
