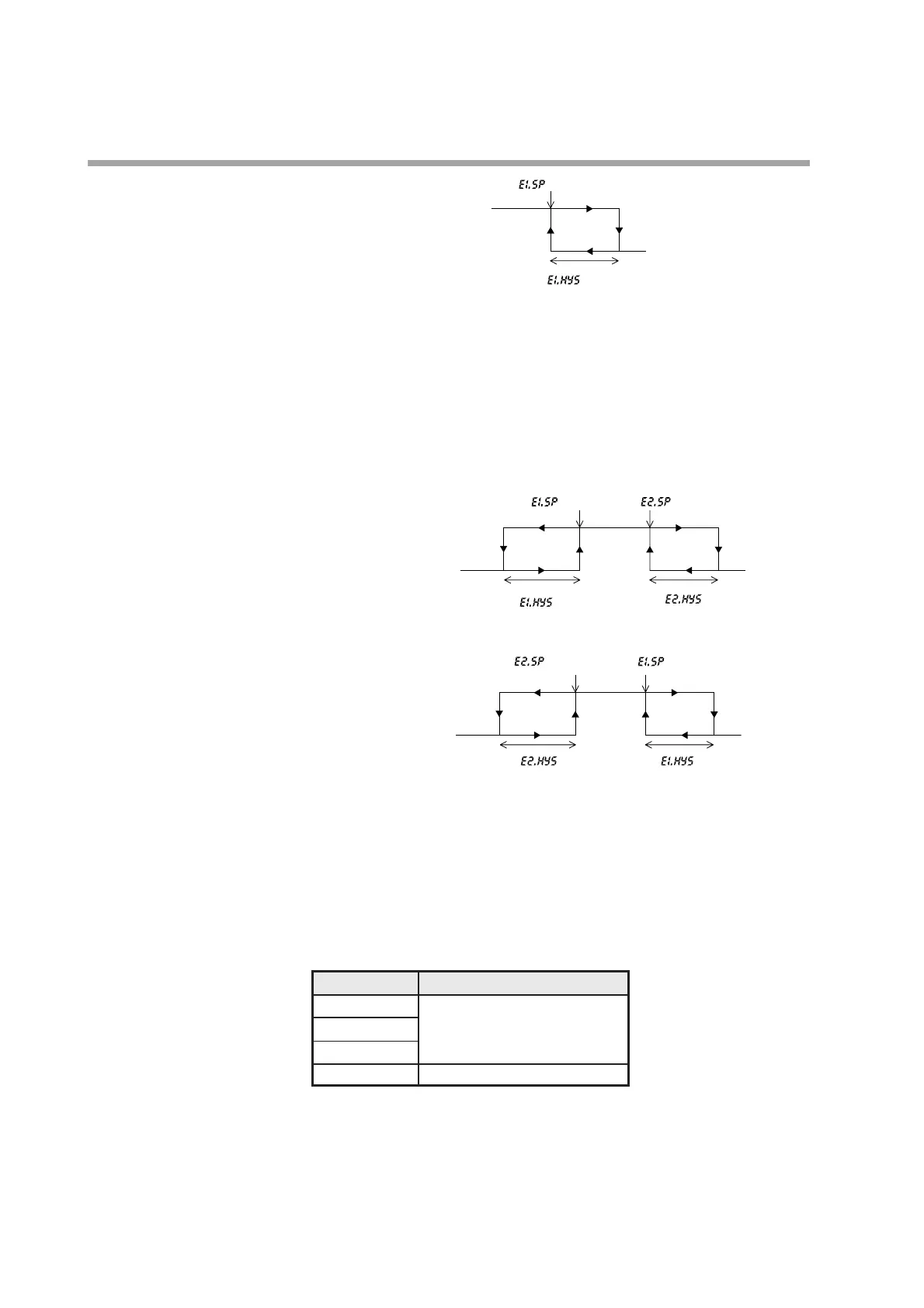

(3) When C03 is set to 03 or 06 (within range for instantaneous flow rate)
When E1.SP > E2.SP, the setting for E1.SP is used as the upper limit and the
setting for E2.SP is used as the lower limit. When E1.SP < E2.SP, the E1.SP
setting is the lower limit and E2.SP setting is the upper limit.
When E1.SP = E2.SP, this function does not operate.
Hysteresis should be set below the lower limit and above the upper limit.
Specify hysteresis as a percentage of full scale flow rate (%FS). Different
hysteresis can be set for the lower limit and the upper limit.
• E1.SP setting < E2.SP setting
• E1.SP setting > E2.SP setting
Note: If Event OFF point is less than zero, the output turns off at zero.
*3.Event ON delay
The event ON delay sets a delay before the event output turns on. E1.dLy is for
the setup of E1.SP and E2.dly is for the setup of E2.SP.
*4.Flow rate cost calculation
The flow rate cost calculation is related to the setting for flow rate units in func-
tion setup C02.
*5.Setting range
The setting range depends on the model number and the flow rate indication
units. See the table below.
settingsetting
hysteresis
hysteresis
ON (OFF)
OFF (ON)
Parenthesis indicate
the state for reversed output
Low flow rate High flow rate
setting setting
hysteresis
hysteresis
ON (OFF)
OFF (ON)
Parenthesis indicate
the state for reversed output
Low flow rate High flow rate
ON (OFF)
OFF (ON)
setting
hysteresis
Parenthesis indicate
the state for reversed output
Low flow rate High flow rate
C02setting Unit of flow rate cost calculation
00: L/min, L
01: m
3
/h, m
3
Per 1m
3
02: m
3
/min, m
3
03: kg/h, kg Per 1kg
28
Chapter 5. SETTING AND OPERATION
