Chapter 7. SPECIFICATIONS
● Material and treatments
Note: The main flow passage of G thread models has no alumite treatment.
■ Environmental conditions
● Standard conditions
Ambient temperature 23 ±3 °C
Ambient humidity 60 ±5 % RH
Rated power supply 24 Vdc
Vibration 0 m/s
2
Shock 0 m/s
2
Mounting direction Mounting on horizontal pipes with display upward
● Operating conditions
Ambient temperature -10 to +60 °C (without freezing)
Ambient humidity 0 to 90 % RH (without condensation)
Rated power supply 22.8 to 25.2 Vdc
Vibration 0 m/s
2
Shock 0 m/s
2
Mounting direction Horizontal or vertical
● Transport/storage conditions
Ambient temperature -20 to +70 °C
Ambient humidity 0 to 90 % RH
Vibration 10 to 500 Hz, with 1.5 mm amplitude or 98 m/s
2
accelera-
tion
Shock 490 m/s
2
Package drop Drop height 60 cm (1 corner, 3 edges and 6 surfaces, free
fall)

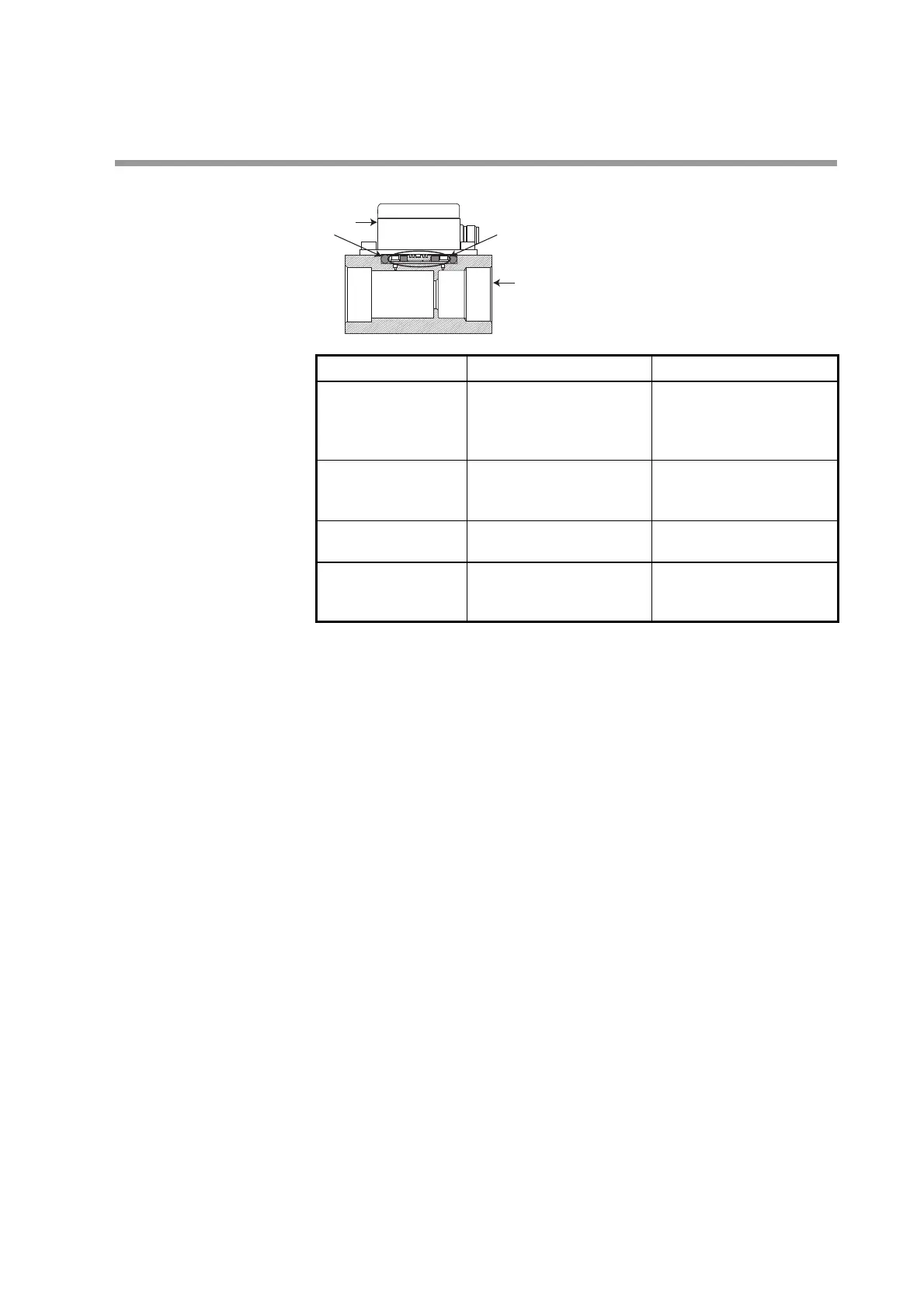

Model number MCF_ _ _ _A_ ________ MCF__ _ _F_ ________
(1) Main flow path Aluminum alloy Aluminum alloy (alumite
(alumite treatment) treatment, ultrasonic
cleaning, immersed in
cleaning solution)
(2) Measurement SUS304, PBT, HNBR, SUS304 (immersion in
module Urethane foam cleaning solution),PBT,
FKM, Urethane foam
(3) Packing HNBR FKM (immersion in cleaning
solution)
(4) Measurement Modified PPO Modified PPO
module electronic
component case
