-5-
2. Basic Function
2.1 Front Panel

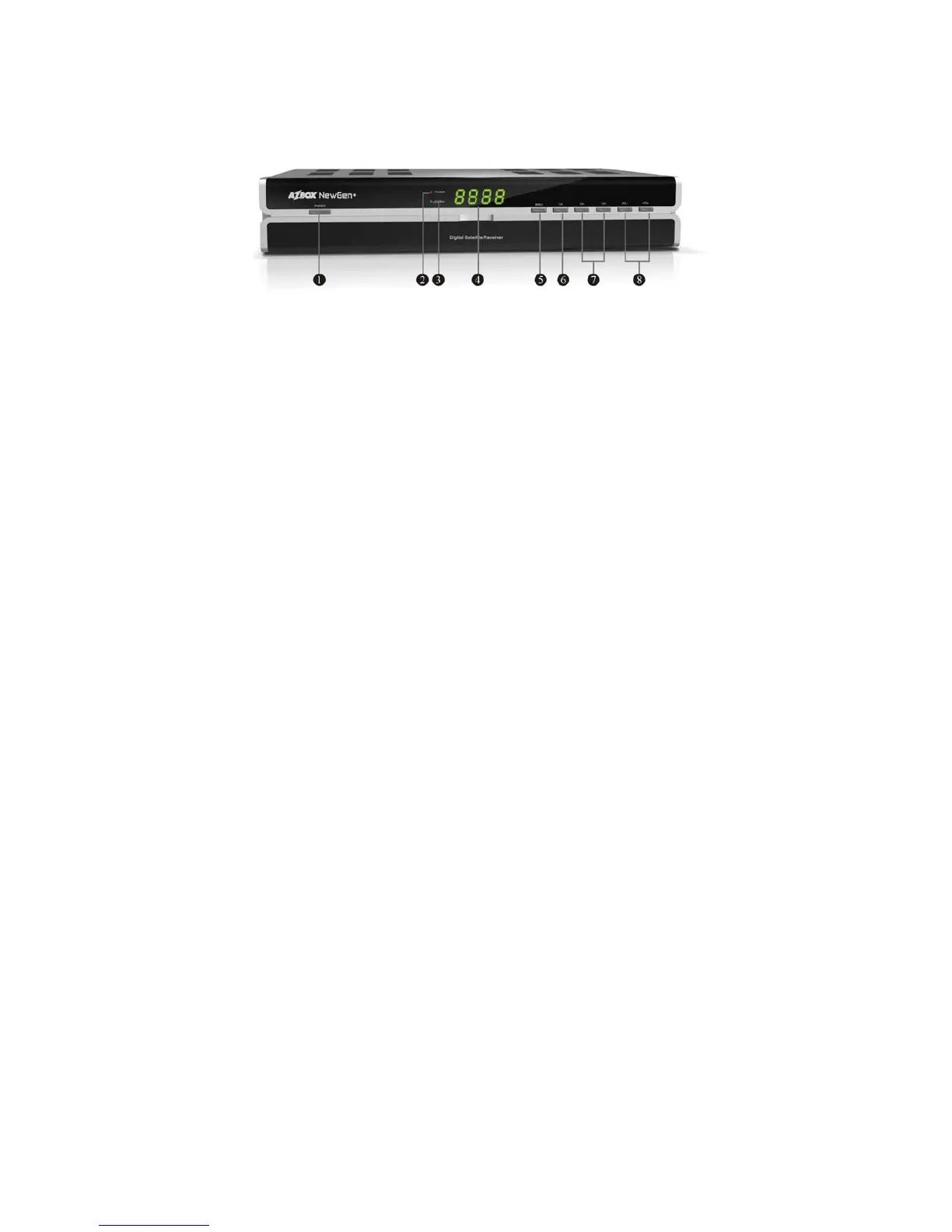

Figure 2. Front Panel
1. Power Button
The POWER button is used to turn the power on or to make it on Standby Mode.
2. Power LED
Power indicator.
3. Signal LED
Signal indicator.
4. Display (4-digi 7-segment)
4-digi displays channel information. In Standby mode the 7-segment displays local time.
5. MENU Button
Activate the main menu in viewing mode, or exit all menu.
6. OK Button
Activate the highlighted sub menu in menu mode and activate the channel list
in viewing mode.
7. CH+ / CH- Button
Change channel in viewing mode and move the cursor up/down in menu mode.
8. VOL+/ VOL- Button
Increase / decrease the volume in viewing mode and change settings in menu mode.
