User Manual
Page 14 of 37
To connect to the Internet via the Web Interface Setup Wizard:
1. Launch the web browser and input 192.168.1.1 on the address bar.

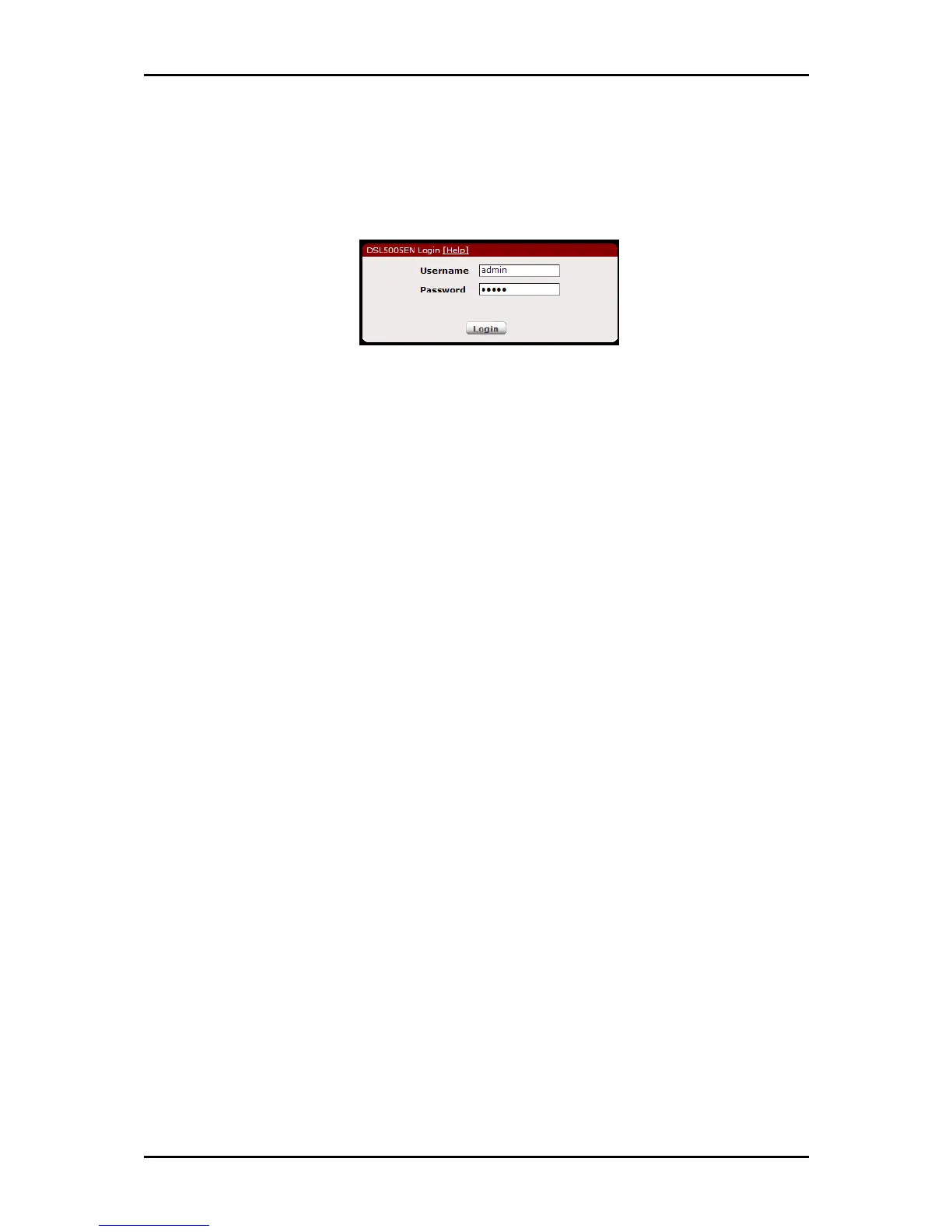

2. Input admin for username and input admin for password. Click the Login button.
3. Click Wizard and read the onscreen instructions, then click Next
4. Enter the Region settings.
a. Select your Time Zone
b. Select an NTP server
5. Enter the WAN connection settings.
c. Select a Connection Type
d. Enter the PPP Username and Password
e. Enter the VPI and VCI configuration (This information will come from your
Internet Service Provider)
6. Enter the Wireless Settings.
f. Ensure that WLAN Enabled and Broadcast SSID are checked
g. Enter your desired Wireless Network Name or SSID
h. Put a check on WPA/WPA2 Enabled to setup a secured wireless network
i. Enter your desired wireless password or Passphrase
7. Review all the settings on the Summary page.
8. Click the Apply button to commit the settings.
