User Manual
Page 17 of 37

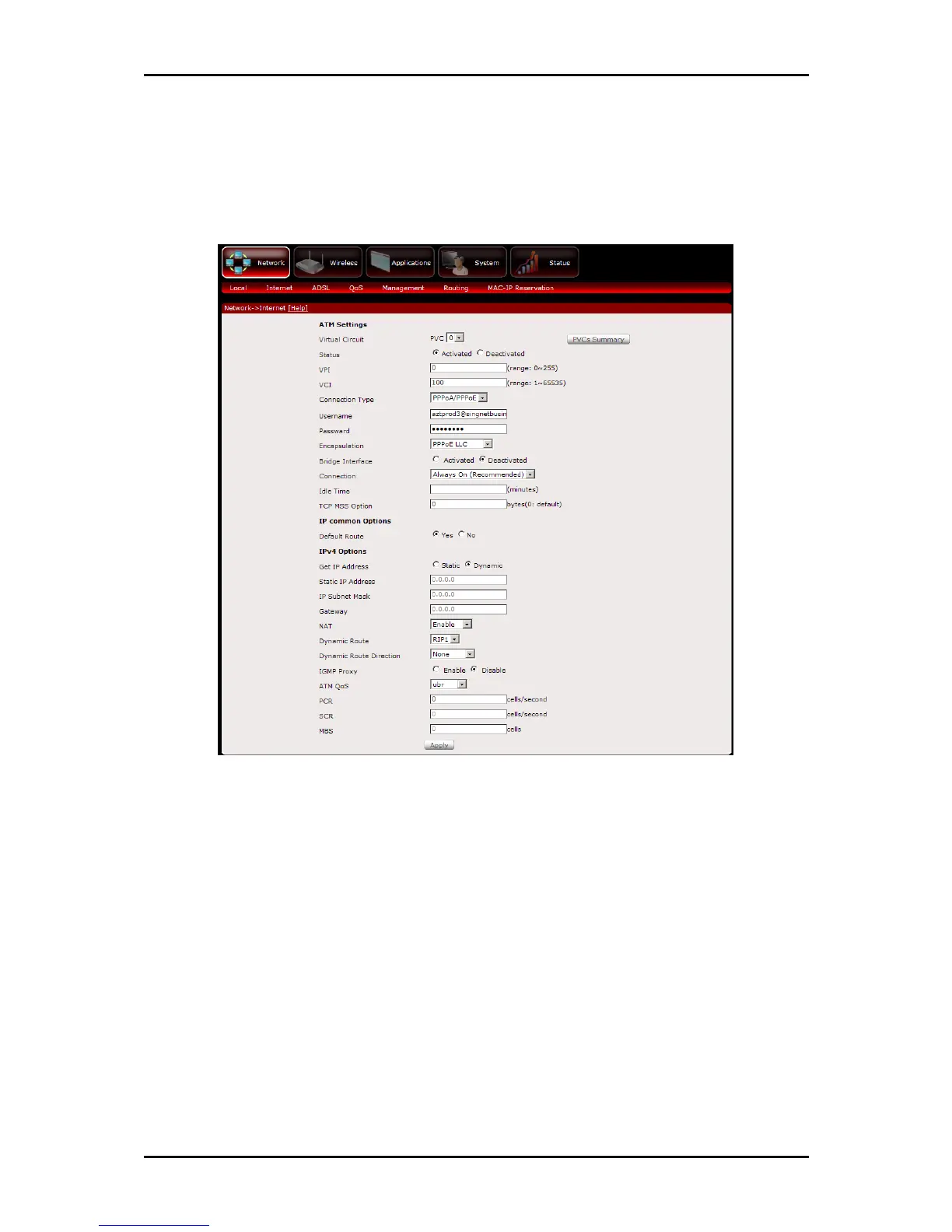

Internet
The initial page will show all the settings of your existing WAN connection configured on
your router. You have an option to Add and Edit WAN interface configurations.
To add a WAN interface:
1. Select an available Virtual Circuit from the drop-down box
2. Enter VPI/VCI settings (provided by your ISP)
3. Select the WAN Connection Type
4. Enter PPP Username and Password (provided by your ISP)
5. Ensure Default Route is selected as Yes
6. Ensure Get IP Address is set to Dynamic
7. Click the Apply button to commit the settings
