18
B. Config
The Config Tab allows you to configure the Basic and Advanced Wireless settings,
Wireless MAC Filtering and Networking Settings. There are three sub tabs for Config;
• Wireless
• MAC Filtering
Wireless
In this Wireless Page, there is Basic and Advanced Page. Basic Page is where users
can configure basic configurations such the SSID and Network Password.

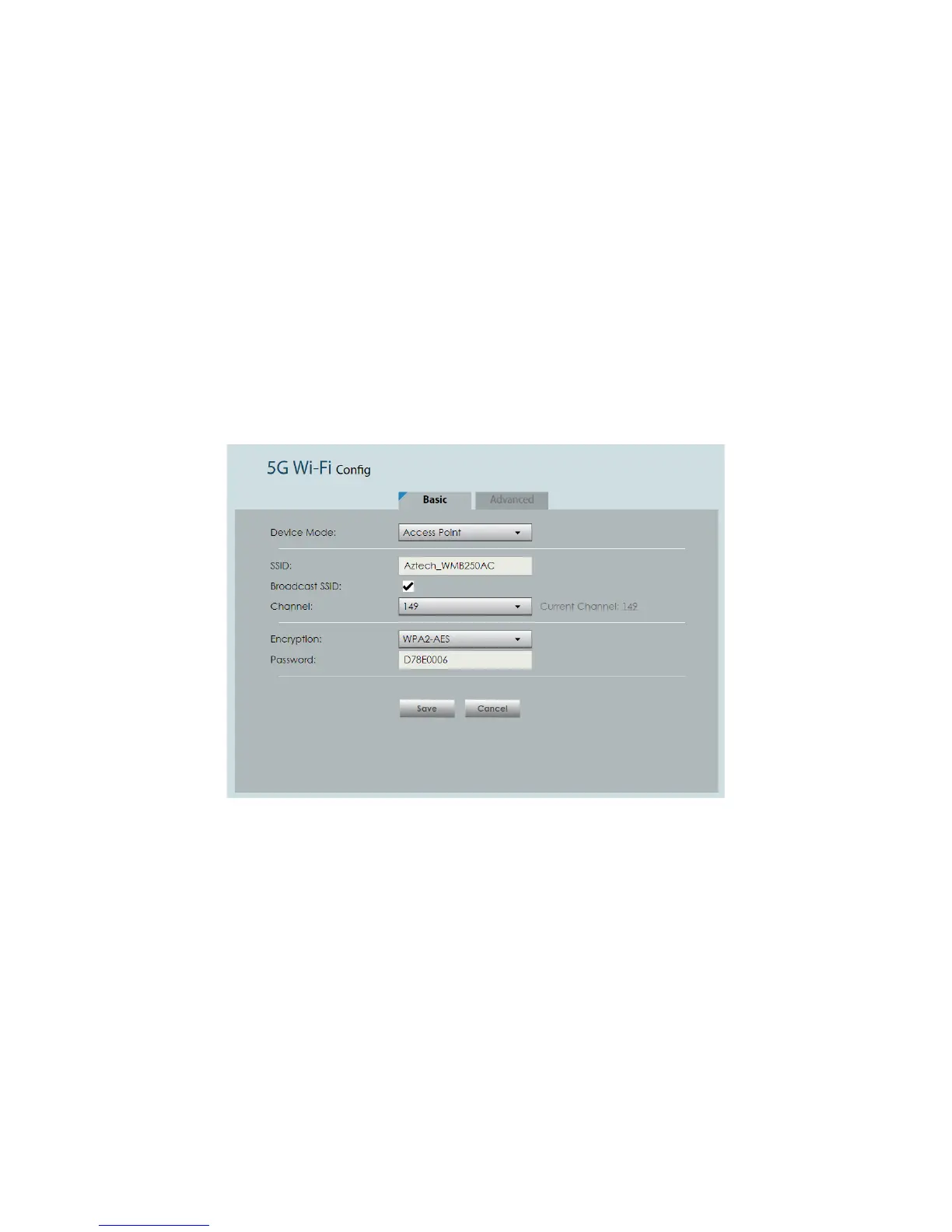

Basic
Aside from the SSID Name, Network Password and Channel in the Basic Page, you
can also configure other settings in the Basic Page such as Device Mode and
Encryption.
To configure the 5GHz of the Wireless Setup;
1. You may designate a new SSID for your 5GHz wireless network.
2. Tick Broadcast SSID. By default, the channel is set to 149.
3. Select an Encryption by clicking on the current encryption. By default, it is set
to WPA2-AES.
NOTE: It is highly recommended to select WPA2 as the type of your
Encryption.
4. Click Save.
