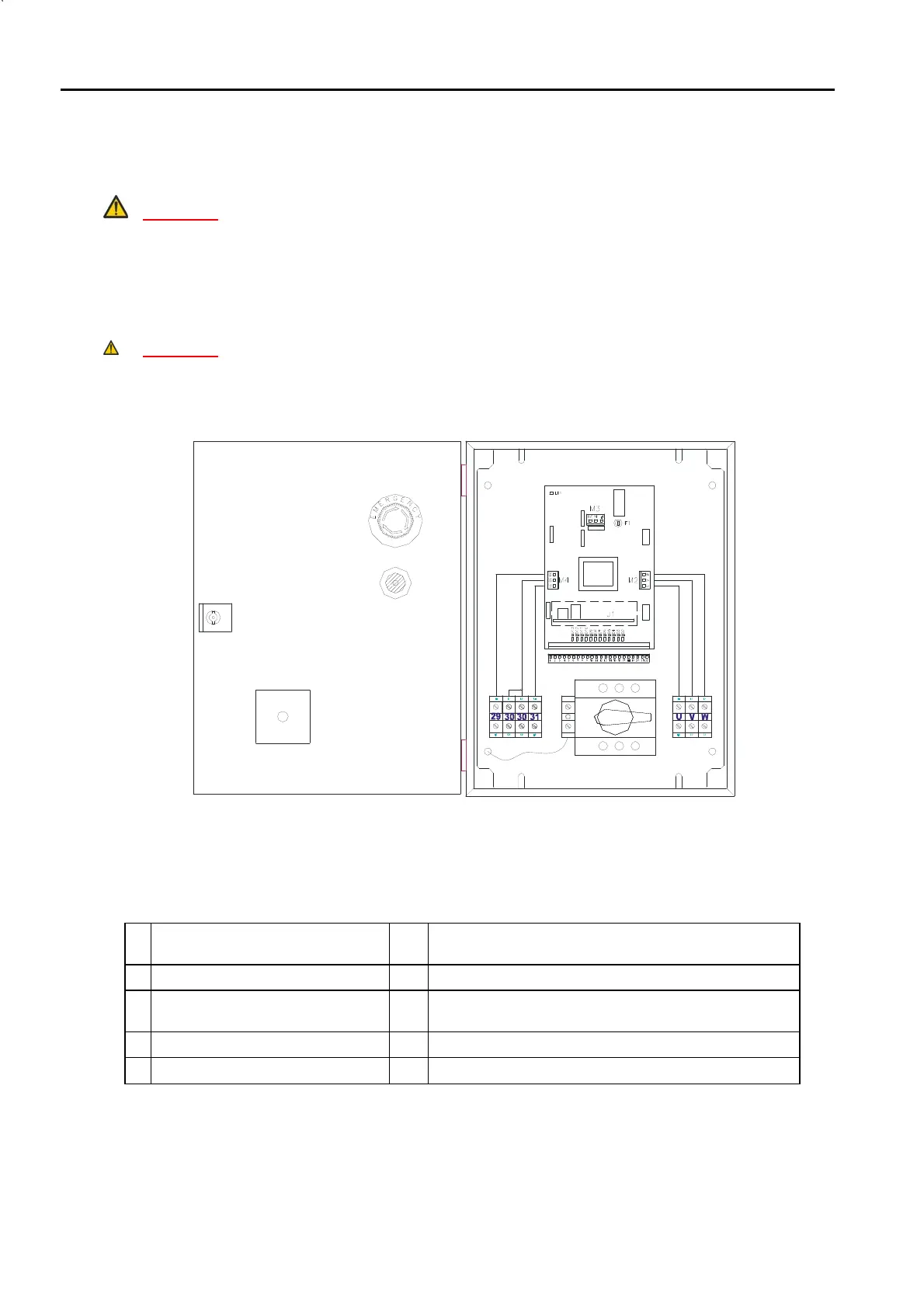

B.M.P. DYNAMICROLL - CONTROL BOARD DETAILS; BOARD LAYOUT AND LEGEND

Operating instructions
Use and maintenance manual
- ThecardinstalledisBMP1_HW
- Thecontrolcardis poweredby230Vsingle‐phase50Hz.
WARNING:Thepowerline230Vsingle‐phase50Hz.mustbededicatedonlytothecontrolboard
andmustnothavecurrentoscillation

-
Thecontrolboard,through microcontroller,controlstheoperatingcurrentofthemotorandthe
heatsinktemperature,providingtoreportanymalfunction.

- Allimputsareindicatedbyleds
- Allarmmessagesareindicatedbyflashinglightordisplay
WARNINGAccessories:output24Vac/300mAMAX
output12Vdc/100mAMAX
LEGENDA
1
CONTROL CARD
6
MOTOR BRAKE TERMINAL (N°30-31)
+ FLASHING LIGHT (N°29-30)
2
METAL BOARD
7
CONTROL BOARD LOCK
3
MOTOR TERMINAL
(U-V-W)
8
START BUTTON
4
DOOR LOCK
9
EMERGENCY BUTTON
5
GROUNDING TERMINAL
CONTROL BOARD
3
4
5
6
7
8
9
1
2
