B-TEC IR-B02 User Manual

7

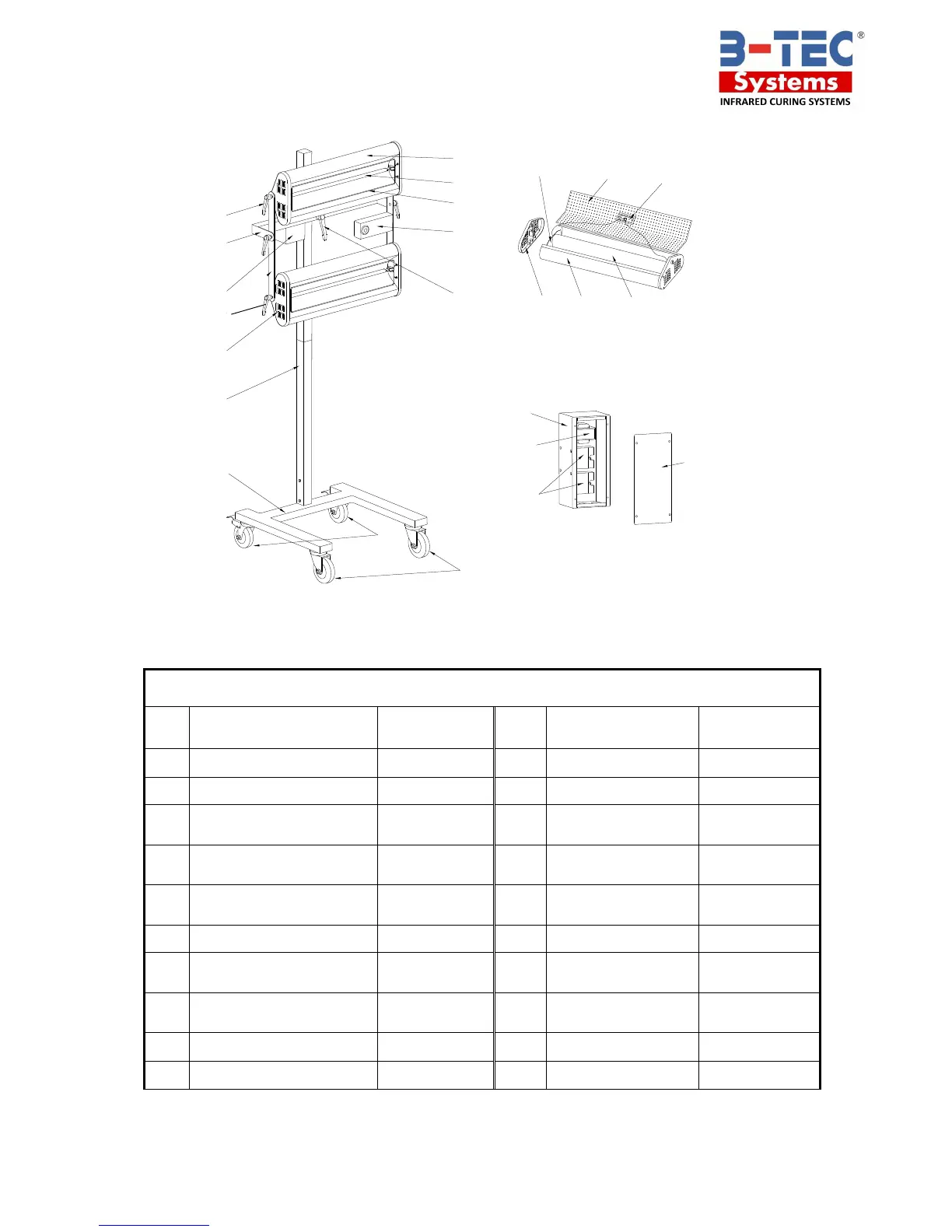

3.3 Spare Parts
IR-B02 Parts List
S/N
Name of Parts
Item #
S/N
Name of Parts
Item #
1
Front Wheel
B01-1
11
Protective grill
B03-13
2
Rear Wheel
B01-2
12
Emitter Tube
B03-16
3
Pedestal
B01-3
13
Ultrasonic Distance
Sensor
B03-9
4
Square-Tube Column
B01-4
14
Small reflective
Panel
B03-21
5
Side Panel of Emitter
B03-19
15
Heat Dissipating
Plate
B03-20
6
Handle
B03-12
16
Ceramic Connector
B01-B-16
7
U-shaped Support bracket
B01-B-7
17
Large Reflective
Panel
B03-22
8
Control Box
B02-1
18
Transformer
220V/6W
B01-9
9
Locking Ring
B01-22
19
Relays 10A
B03-30
10
Bent Panel
B03-18
20
Lid Control Box
B01-11
Control box
20
1
3
4
2
Emitter
5
10
17
14
15
16
5
6
8
7
6
10
12
11
13
9
18
19
8
- B-Tec Systems reserves the right to make technical changes without notice -
Cassette Assembly
