4. Assembly / Installation

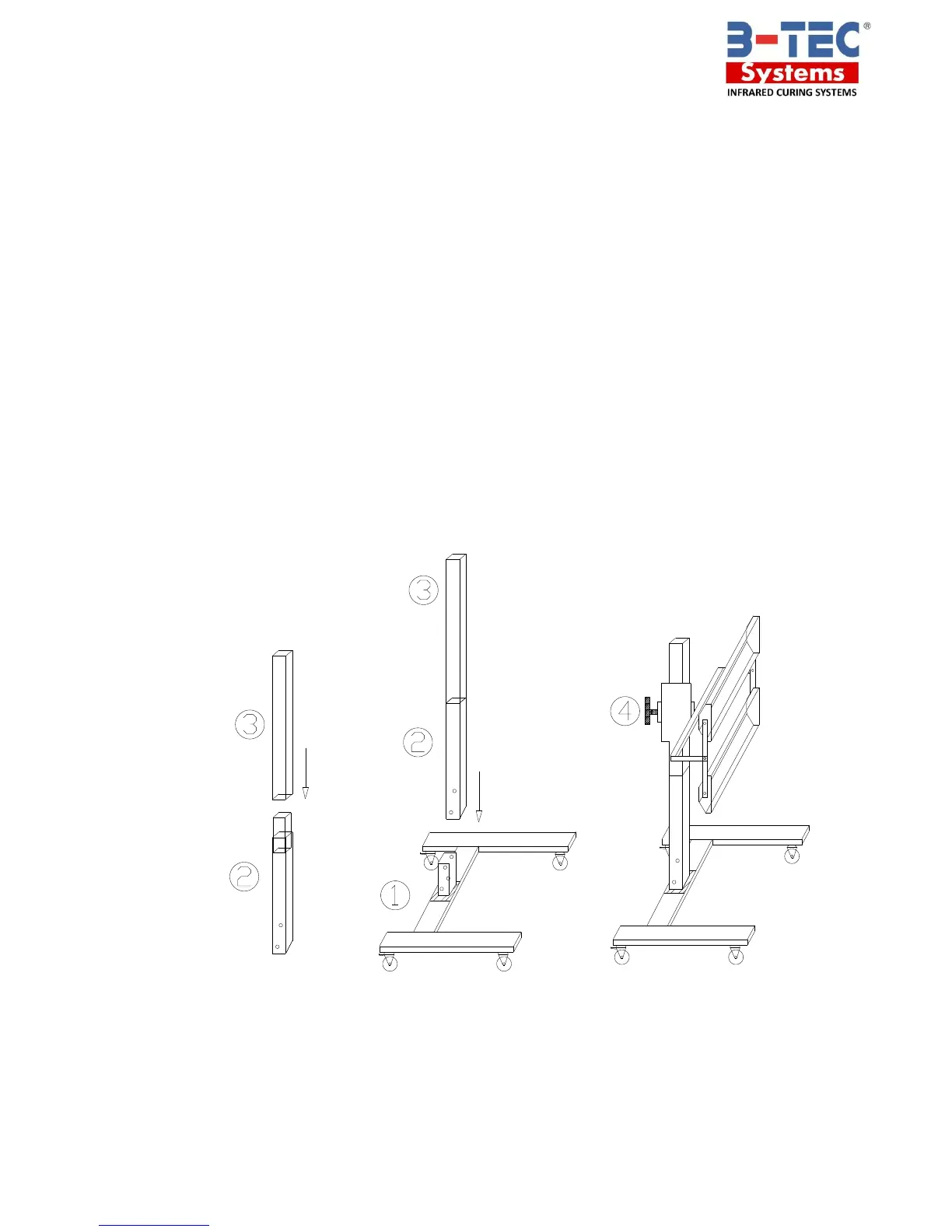

1. Insert the upper section ③ of the vertical bar into the lower section ②.
2. Take out the pedestal ①, insert the vertical bar into the pedestal ① and fasten the
screws.
3. Install the support bracket ④ onto the vertical bar. Attach the cassette assembly to
the support bracket facing forward as in diagram below and fasten the handle.
4. Attach the power wire.
5. Important: Remove the stickers from the protection covers.
6. Important: Take out the red foam cubes behind the tubes.
Notes:
Power supply: 1 PH 220V/ 240V - 60Hz
When adjusting the height of the cassette, use your left hand to support the bracket
and your right hand to loosen the handle on the locking bracket two turns, and then
move the bracket with two hands supporting the two ends of the lamp bracket. Do not
do this operation using only one hand, to avoid any damage to the emitter / tube,
should it fall from your grasp.
