BAC S3E-8518 Series User Manual

WWW.BALTIMOREAIRCOIL.COM
11
Unit Rigging & Assembly
Fan Guard Installation
Two-Piece Fan Guard
Four-Piece Fan Guard
Fan Guard
Support
Fan Guard
Support
3/8" x 1" Bolt
3/8" Flatwasher
3/8" Flatwasher
3/8" Locknut
Fan Guard Plate
Fan Guard Clip
3/8" Locknut
Fan Guard
Detail A
Detail B
Detail C
See Detail C
See Detail A For
Fastening the Fan Guard
to the Fan Screen Support
See Detail B

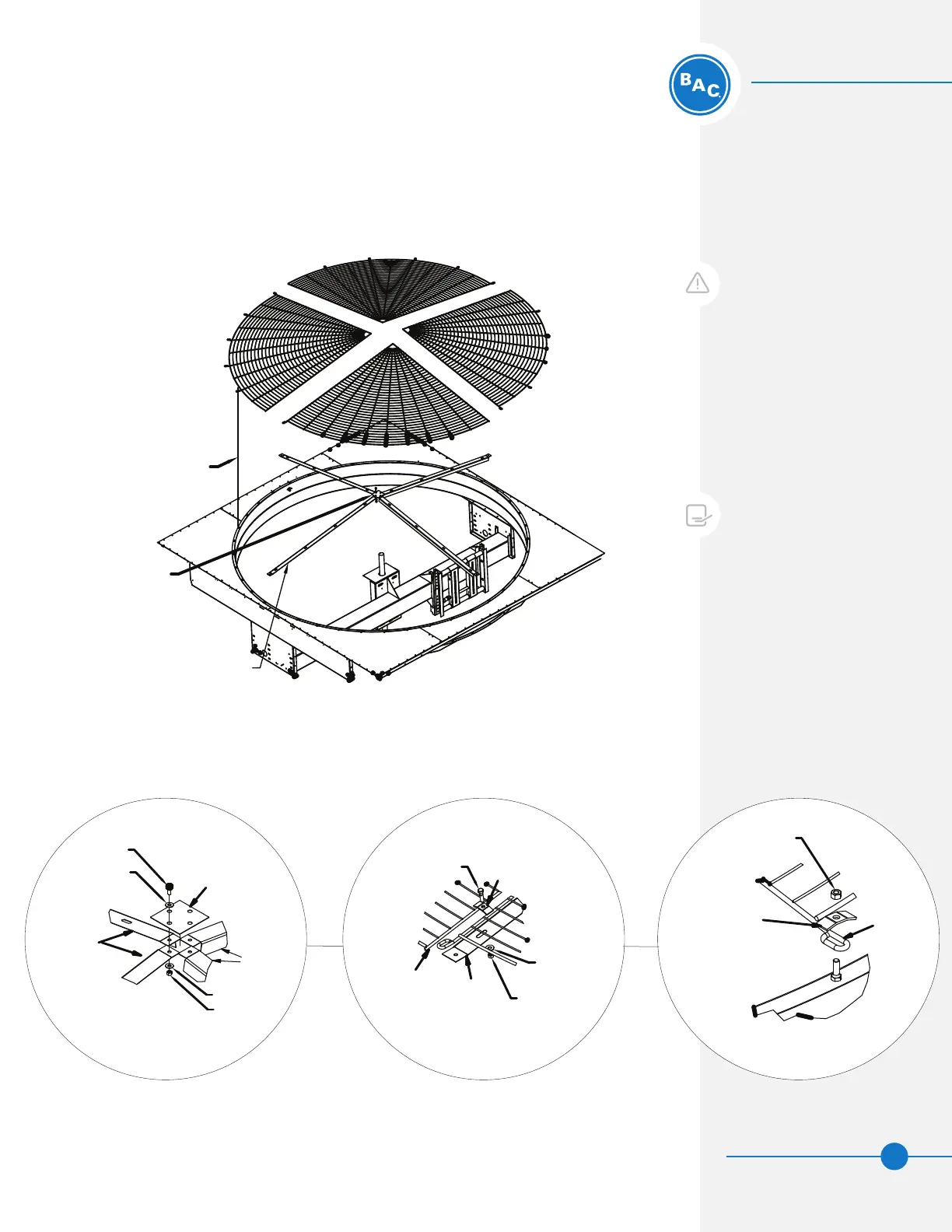

Figure 15. Four-Piece Fan Guard Assembly
DANGER: Fan guard must be
securely in place before the cooling
tower is placed in operation. Never
step or walk on the fan guard.
Failure to follow these instructions
may result in serious injury or
death.
Four-Piece Fan Guard
1. Assemble fan guard supports as illustrated in Figure 15, Detail A.
2. Secure fan guard pieces to fan guard supports as shown in Figure 15, Detail B.
3. Mount fan guard assembly to unit as shown in Figure 15, Detail C.
Fan Clip Guard
3/8" x 1 1/2" Bolt
3/8" Flatwasher
3/8" Locknut
Fan Guard
Fan Guard
Support
NOTE:
1. Existing 3/8” stud and nut for
guard mounting at fan deck
level (3/8” x 1 1/2” bolt for
guards mounted on top of cowl
extensions).
