NOTE: User must have two (2) dedicated ports to successfully complete the required
setup.

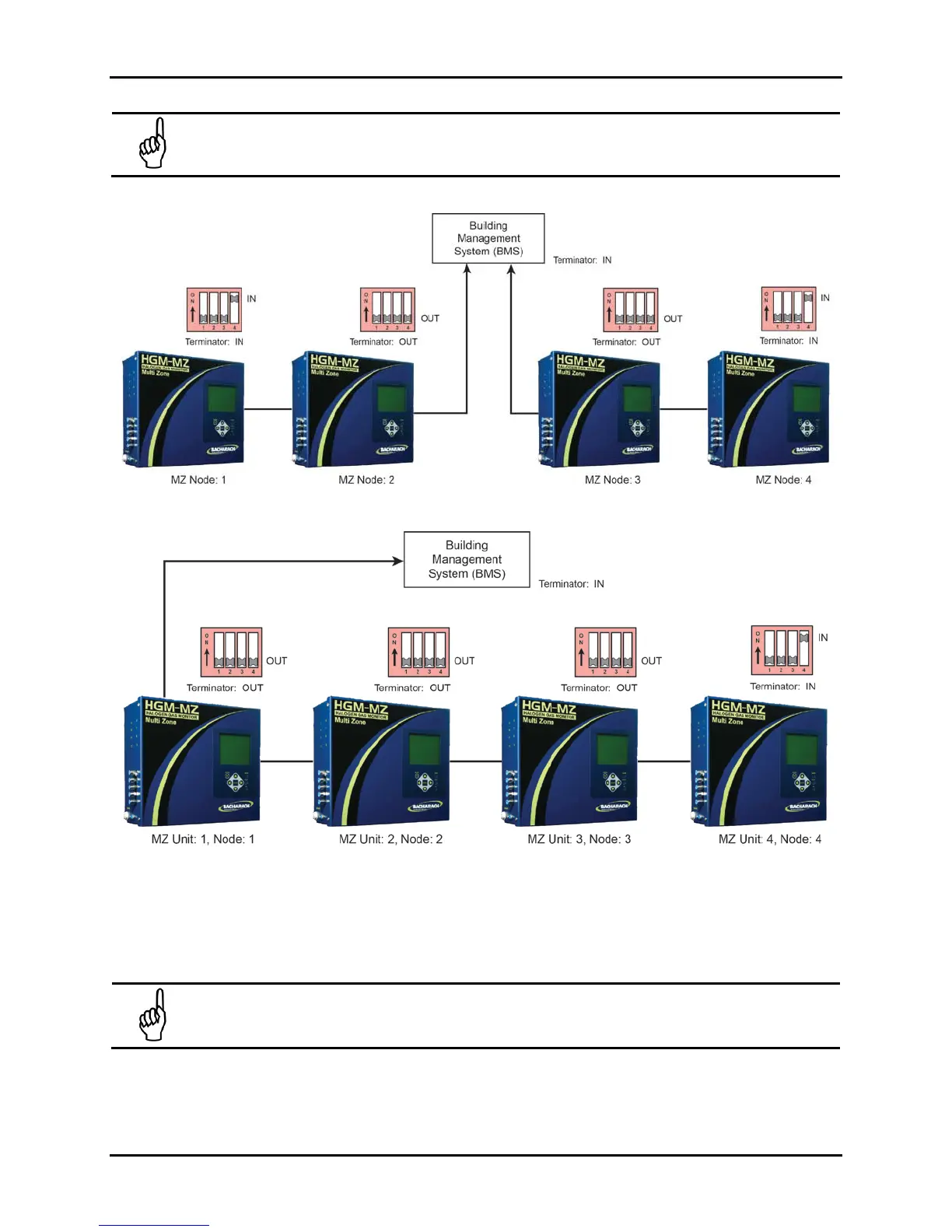

Figure 2-9. Termination Settings for Multiple Monitors Connected to a BMS (Two Trunks)
Figure 2-10. Termination Settings for Multiple Monitors Connected to a BMS (Daisy Chain)
2.8. PC Software
2.8.1. Operation
NOTE: The MZ is compatible with HGM300 PC software version 1.52 and higher.
However, calibration data can only be edited on the front panel of the MZ, not through the
PC software or RDM units.
