Bacharach MultiZone - The Diagnostic Screen; Navigating to the Diagnostic Screen

Multi-Zone Gas Monitors
44 P/N: 3015-5074 Rev 11
4.9. The Diagnostic Screen
4.9.1. Navigating to the Diagnostic Screen
On the System Setup screen, select the Diagnostic option (DIAG).

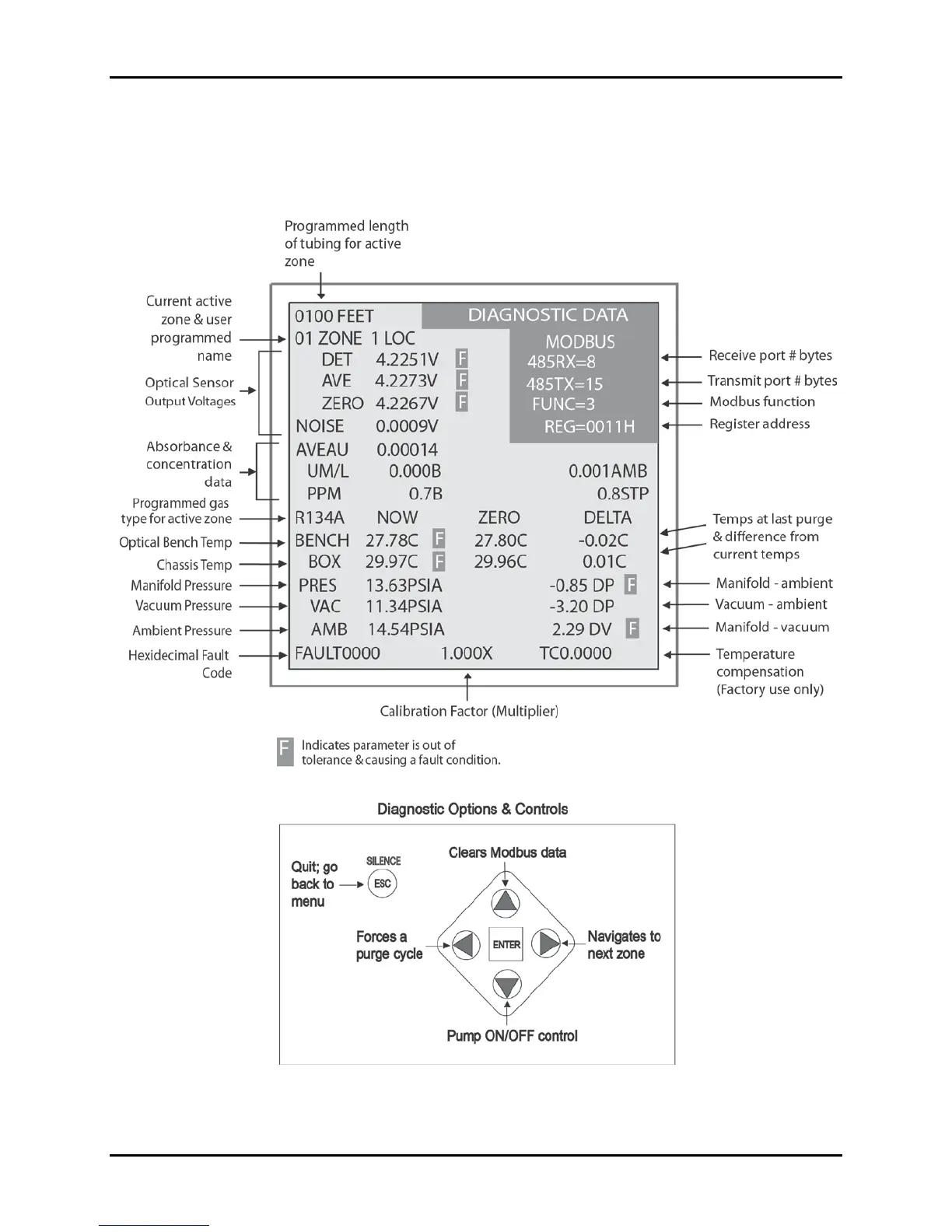

Figure 4-14. Diagnostic Screen
